Leisure Time Products 54343 Owner's Manual

Wooden play set
Hide thumbs

Advertisement

Quick Links

Download this manual

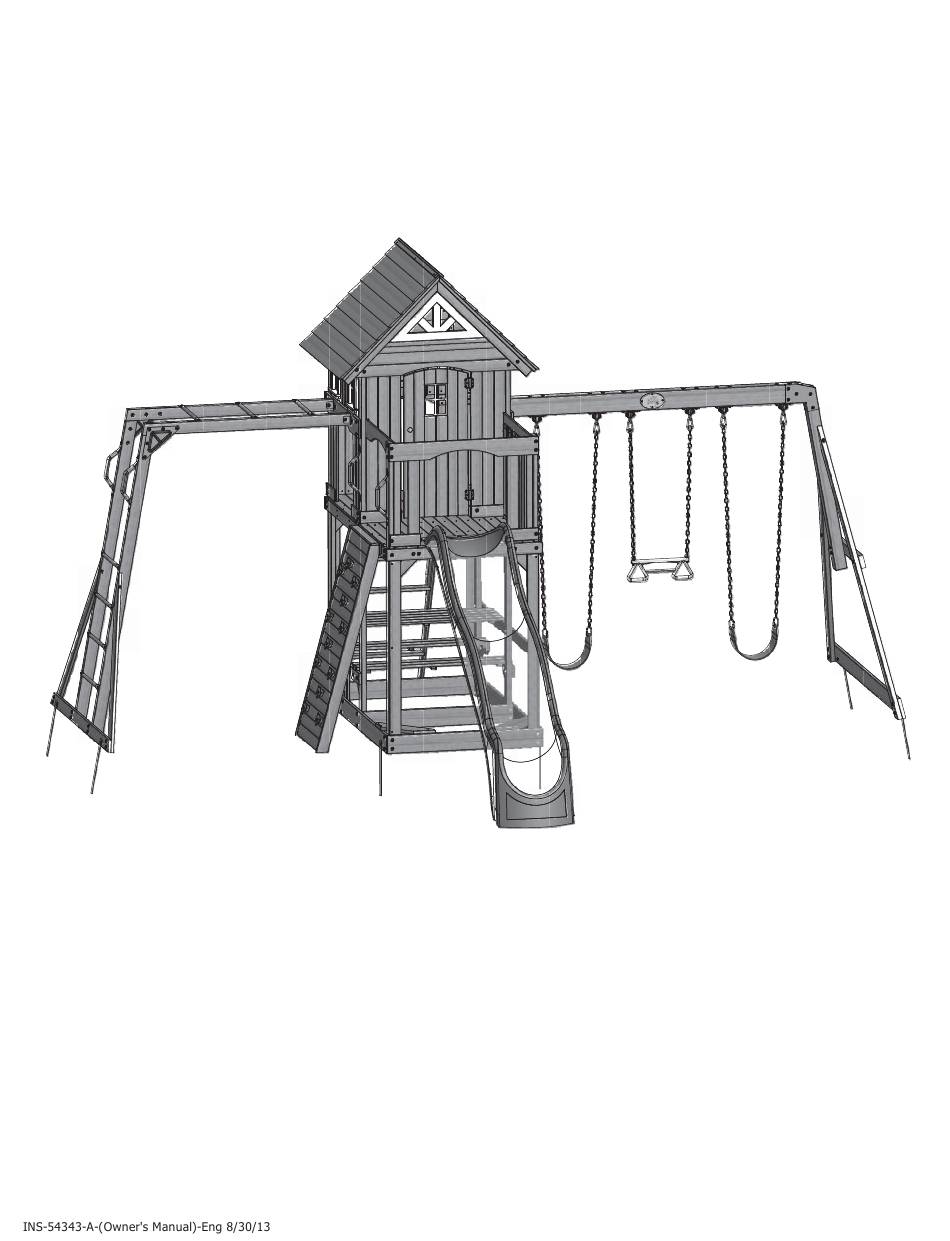

CEDAR PEAK
Wooden Play Set
Model: #54343
Owner's Manual
Manufacturer: Leisure Time Products
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
Register your new swing set on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the 54343 and is the answer not in the manual?

Questions and answers

Related Manuals for Leisure Time Products 54343

Summary of Contents for Leisure Time Products 54343

  • Page 1 CEDAR PEAK Wooden Play Set Model: #54343 Owner's Manual Manufacturer: Leisure Time Products 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new swing set on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and information to order replacement parts) Save this assembly manual for future reference in the event that you need to order replacement parts.
  • Page 2 Congratulations on the purchase of your new playset. Your playset has been professionally installed by the best in the business and we hope your children enjoy many years of safe play on it. This Owner’s Manual contains helpful information concerning playset safety, operation, maintenance, and playground surfacing materials.
  • Page 3 The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm) Wood Chips 7' (2.13m) 10' (3.05m)
  • Page 4 MAINTENANCE AND WOOD CARE Hardware and Component Inspection and Adjustment: Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) We recommend you check the swing beam and hardware every two weeks due to wood expansion and contraction.
  • Page 5 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. Safe play height: 17' [5.2m] Maximum fall height: 6'-10" [2.1 m] Safe Play Zone General Information:...

  • Page 8: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) A50 - SWING BEAM - W102416 3 3/8"x5 1/4"x89 1/2" (86x134x2274) E1 - FORT UPRIGHT - W102745 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E2 - FORT UPRIGHT - W102746 1 3/8"x3 3/8"x89 1/2" (36x86x2274) E3 - LOWER UPRIGHT - W102754 1 3/8"x3 3/8"x57 3/8"...
  • Page 9 Parts Identification Wood Components (NOT TO SCALE) E74 - MONKEY BAR RAIL - W102875 1 3/8"x3 3/8"x60 5/8" (36x86x1539) E79 - MONKEY BAR UPRIGHT - W100995 1 3/8"x3 3/8"x88 1/8" (36x86x2237) G1 - GROUND BOARD - W102747 1"x5 1/4"x45 3/8" (24x134x1153) G2 - GROUND BOARD - W102751 1"x5 1/4"x74 5/8"...
  • Page 10 Parts Identification Wood Components (NOT TO SCALE) H6 - FLOOR SUPPORT - W102768 1"x3 3/8"x45 3/8" (24x86x1153) H7 - ARCHED WALL RAIL - W102772 1"x3 3/8"x48 3/8" (24x86x1230) H8 - PICNIC TABLE UPRIGHT - W102773 1"x3 3/8"x27 1/8" (24x86x690) H9 - PICNIC TABLE SUPPORT - W102774 1"x3 3/8"x16 7/8"...
  • Page 11 Parts Identification W102859-3 Wood Components W102859-4 W102859-4 (NOT TO SCALE) W102859-5 W102859-6 W102859-4 W102819-04 W102859-5 W102859-4 W102762-04 W102859-6 W102859-4 W102819-04 W102859-5 W102859-4 W102762-04 W102859-6 W102859-4 W102819-04 W102859-5 W102859-4 W102762-04 W102859-6 W102859-4 W102859-4 W102819-04 W102859-1 W102859-2 (1) RW1 - ROCK WALL ASSEMBLY - W102859 W102762-04 3 3/8"x26"x62 3/8"...
  • Page 12 Parts Identification Wood Components W102749-01 (NOT TO SCALE) W102811-01 W102811-02 (2) RP2 - GABLE ASSEMBLY - W102811 1 7/8"x6 9/16"x46 9/16" (48x166x1182mm) W102759-06 W102759-06 W102759-04 W102759-11 W102759-07 W102749-02 W102749-02 W102759-07 W102759-10 (1) WP1 - SUNDECK WALL - W102749 1 1/4"x29 13/16"x43 1/2" (32x758x1105mm) W102759-10 W102761-01 W102759-09...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) W102818-04 W102817-05 W102818-04 W102817-04 W102994-01 W102993-01 (1) WP11 - DOOR WALL PANEL - W102994 (1) WP10 - DOOR WALL PANEL - W102993 1 7/8"x10 3/16"x45 9/16" (48x258x1158mm) 1 7/8"x13 5/16"x45 9/16" (48x338x1158mm) W102820-02 W102820-03 (1) WP12 - FULL WALL PANEL - W102820 1 9/16"x29 13/16"x40 11/16"...
  • Page 14 Parts Identification Hardware KT - BOLT WH 1/4x1 - H100137 TOTAL QTY REQUIRED QTY CM - BOLT WH 5/16x1/2 - H100115 TOTAL QTY REQUIRED QTY Z - LAG SCREW WH 5/16x2 - H100027 TOTAL QTY (45) REQUIRED QTY (47) F - BOLT WH 5/16x1 - H100008 TOTAL QTY (11) REQUIRED QTY...
  • Page 15 Parts Identification Hardware AD - WASHER LOCK EXT 12x19 - H100031 (116) (126) TOTAL QTY REQUIRED QTY BF - T-NUT 3/8 - H100073 (12) (13) TOTAL QTY REQUIRED QTY CD - WASHER FLAT 8x27 - H100105 TOTAL QTY (10) REQUIRED QTY (11) AC - WASHER LOCK EXT 8x19 - H100030 (146)
  • Page 16 Parts Identification Hardware BR - SCREW PFH 8x1 1/8 - H100088 (62) TOTAL QTY REQUIRED QTY (68) BQ - SCREW PFH 8x1 1/4 - H100087 TOTAL QTY (25) REQUIRED QTY (27) BP - SCREW PFH 8x1 1/2 - H100086 (28) (30) TOTAL QTY REQUIRED QTY...
  • Page 17 Parts Identification Accessories (NOT TO SCALE) MT - PLASTIC WINDOW MEDIUM WHITE - A100014 ED - SINGLE DUCTILE HANGER - A100046 QZ - TRIANGLE PLATE 100 5 HOLE - A100294 TK - PLASTIC GABLE - A100331 SW - PLASTIC WINDOW 44x266x329 - A100320 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 HZ - KNOB - A100071 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326...
  • Page 18 Parts Identification Accessories (NOT TO SCALE) SQ - "A" REVISION TAG - A100314 FA - QUICK LINK - A100069 FX - HAND GRIP METAL GREEN 381 c/c - A100118 GD - L BRACKET 66x66x127 - A100140 EC - METAL RUNG 559 - A100045 (12) EV - CLIMBING ROCK - GREEN - A100064 JV - HAND GRIP GREEN 816 c/c - A100134...

  • Page 19: Limited Warranty

    Limited Warranty This Limited Warranty by Backyard Discovery applies to products manufactured under the Backyard Discovery brand or its other brands including but not limited to Backyard Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase.
