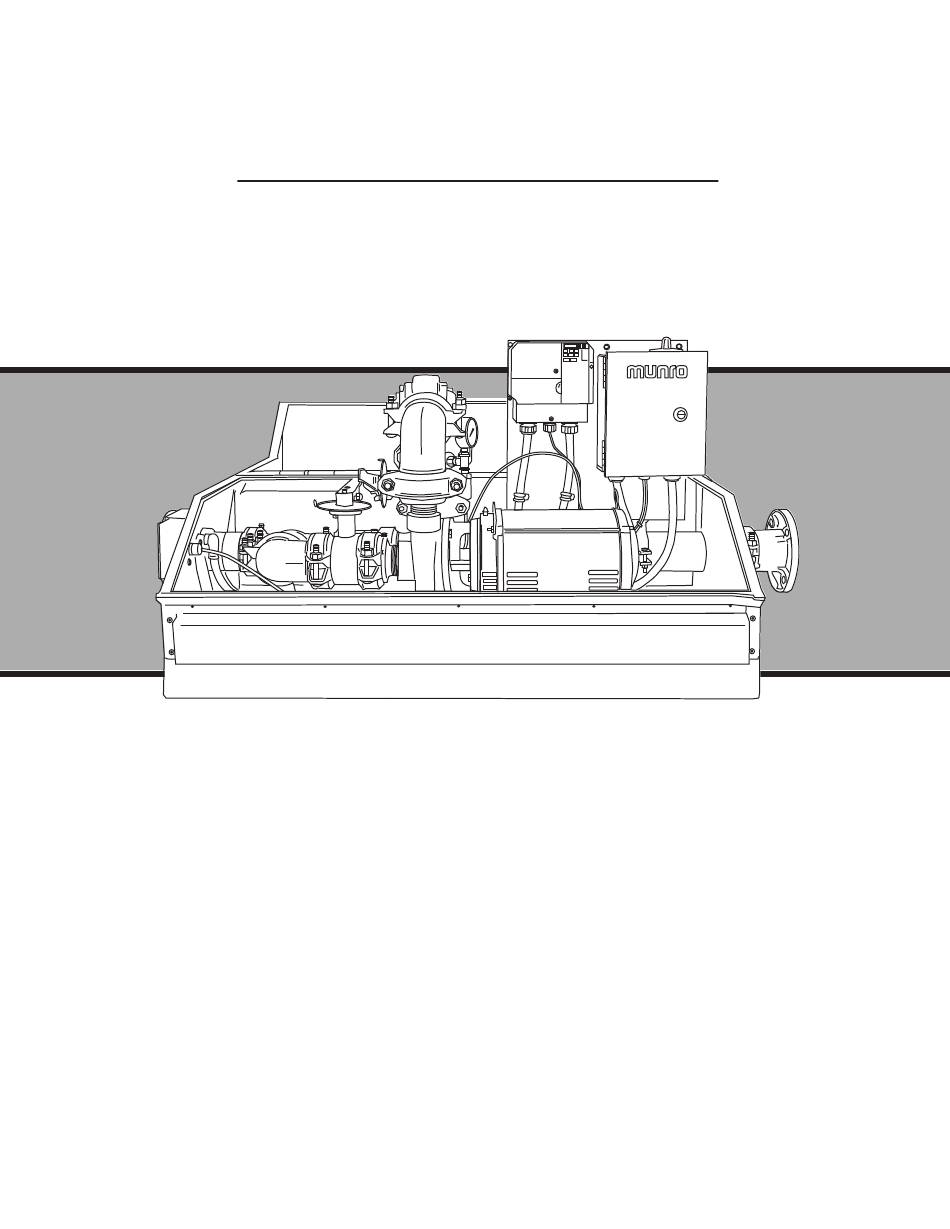

- Page 1 OWNER’S MANUAL OWNER’S MANUAL MUNRO SIMPLICITY Operation - Programming - Maintenance Operation - Programming - Maintenance 1.800.942.4270 1.800.942.4270 msy@munropump.com msy@munropump.com www.munropump.com www.munropump.com munro ® MU01R1 1121 © 2021 MUNRO COMPANIES INC., ALL RIGHTS RESERVED...
-
Page 2: Table Of Contents
7. Wiring Diagram 8. Pre-Start Up Checklist 9. Start Up Checklist 10. Maintenance Checklist NOTES Phone-in Start-up Assistance and Technical Support Contact the Munro team to schedule and access phone-in start up assistance and technical support. 1-800-942-4270 or msy@munropump.com Page 1... -
Page 3: System Operation Overview
1. SYSTEM OPERATION OVERVIEW The Munro Simplicity is a low-maintenance, self-contained pumping station with simple, user-friendly controls. The system is controlled using a toggle switch and a digital keypad for modifying settings. The small toggle switch on the front of the VFD labeled “HAND/OFF/AUTO” can be set to one of the three positions: left= HAND, center= OFF, and right= AUTO. - Page 4 Auto Mode: • Sends a 24VDC signal to VFD terminal S2. • The VFD waits idly until the designated start conditions have been met. • Pressure Start: the system pressure drops below the pressure set in parameter Q1-01. • Clock Start: an external 24VAC signal is received across the wires in the external junction box which closes the Time Clock Relay and sends a 24VDC signal to VFD terminal S1.
-
Page 5: Using The Digital Operator
3. USING THE DIGITAL OPERATOR This section describes the basic settings for your Munro Simplicity pump station. Virtually all of the settings that control the pump station are managed by the VFD parameters. The parameters can be modified directly on the VFD using its buttons and digital display, or by using the much more user-friendly Yaskawa JVOP- 180 Digital Operator keybad included with your Munro Simplicity (see Figure 2). - Page 6 To modify a parameter, follow the steps shown below in figure 3. This example explains changing parameter C1-02 (Deceleration Time 1) from 10.0 seconds (default) to 20.0 seconds. Step Display/Result Turn on the power to the drive. The initial display appears. Press until the Parameter Setting Mode screen appears, Press...
-
Page 7: Parameter List
The letter represents the parameter group, the first number represents the sub-group, and the number after the dash represents the specific parameter. This section covers the main, applicable parameters. The rest of the parameters and their descriptions can be found in the V1000 Quick Start Guide*. Find on “Other Info” tab www.munropump.com/simplicity-pump-stations Page 6... - Page 8 27.5 Where “x” is a percentage of the range of the pressure transducer and “r” is the range of the pressure transducer (in psi). The Munro Simplicity uses a 0-200 psi, 1-11V Pressure 37.5 32.5 transducer, but the analog input on the VFD used for PID feedback reads a 0-10V signal, so the 10% offset in the 42.5...
- Page 9 Parameter Name Digital Operator Display Range Default Q1-02 SLEEP THRESHOLD (Custom Param 2) 0-100% Parameter Q1-02 sets the threshold for the Sleep Function. The value entered in this parameter depends on the setting of the SLEEP TYPE Parameter Q1-04: Q1-04 =0: If the running pressure is being maintained and the proportional speed falls below this value for the amount of time set in Q3-01, the VFD will activate the Sleep Function.
- Page 10 Parameter Name Digital Operator Display Range Default Q1-04 SLEEP TYPE (Custom Param 4) 0.00 or 1.00 The Q1-04 parameter determines if the VFD will monitor the pump’s speed or current to trigger the sleep function. 0.00: Speed 1.00: Current Parameter Name Digital Operator Display Range Default...
-
Page 11: Faults & Alarms
3. Look up the fault/alarm code in the V1000 Quick Start Guide. 4. Resolve the issue triggering the fault/alarm. 5. Place the HOA switch in the OFF position. 6. Push the RESET button on the Digital Operator to reset the fault/alarm. Find on “Other Info” tab www.munropump.com/simplicity-pump-stations Page 10... -
Page 12: Wiring Diagram
(labeled 24VAC connection) outside station enclosure. Program parameter Q1-02 to 001.00%. Phone-in Start-up Assistance and Technical Support Contact the Munro team to schedule and access phone-in start up assistance and technical support. 1-800-942-4270 or msy@munropump.com Page 11... -
Page 13: Pre-Start Up Checklist
Pump station is installed and ready for start up. All listed checklist items have been completed and verified. I understand that if Munro’s Authorized Service Provider arrives at the job site and finds that the pump station is not ready to start up, any required subsequent visits will incur hourly fees (up to $150/hr.) and travel expenses. - Page 14 970.270.0400 and provide PO# here: Prior to start up date, job site must be ready to start up pump station. If Munro’s Authorized Service Provider arrives at the job site and finds that the pump station is not ready to start up, any required subsequent visits will incur hourly fees and travel expenses.
-
Page 15: Start Up Checklist
9. START UP CHECKLIST Complete this helpful tool as a record of your start up. If Munro completes the start up, we will complete a start up checklist. PROJECT NAME Serial # Distributor Contractor End User Site Location City State... - Page 16 Station Data gpm @ psi with , suction pressure (or lift ft), Using CP, or AutoTune Pump = rpm, 100% deadhead = psi, Set LOP at 40hz deadhead (Line Fill Speed) = psi, Set FPL current at Stpt deadhead = psi @ hz &...
-
Page 17: Maintenance Checklist
10. MAINTENANCE CHECKLIST These are basic guidelines for recommended maintenance. Quarterly maintenance is recommended. Maintenance is not provided by Munro. MOTOR: Voltage unloaded Voltage loaded Amperages loaded Megger readings (Not if attached to a VFD) Check t-box connections Check t-box gasket condition...
