Pebble Grey Leila 500.50.60 Installation Manual

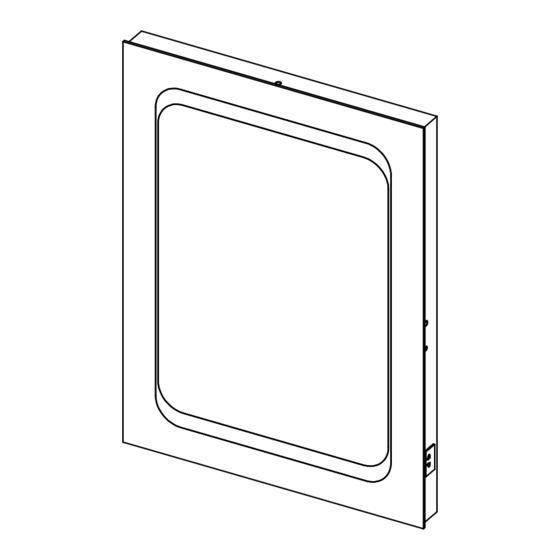

Leila LED Illuminated Mirror
Leila 500.50.60
Leila 500.50.62
GENERAL
• THIS PRODUCT CONFORMS TO UK SAFETY STANDARDS AND MUST BE
INSTALLED IN ACCORDANCE WITH CURRENT IEE WIRING REGULATIONS
AND BUILDING REGULATIONS (PART P).
• THIS PRODUCT MUST BE EARTHED, AND SHOULD NOT BE CONNECTED
TO AN UNEARTHED CIRCUIT.
• ENSURE THAT CONNECTIONS ARE TURNED OFF AT THE CONSUMER
UNIT OR FUSE BOARD BEFORE INSTALLING OR CARRYING OUT ANY
MAINTENANCE.
• THIS PRODUCT IS FOR INDOOR USE ONLY.
• THIS PRODUCT IS IP44 RATED AND CAN BE INSTALLED IN BATHROOM
ZONE 2 (AS DEFINED BY THE IEE WIRING REGULATIONS) AND BEYOND.
SEE BATHROOM DIAGRAM.
• THE PRODUCT IS SUITABLE FOR INSTALLATION IN ZONE 2 OR HIGHER.
• IF THIS PRODUCT FEATURES REPLACEABLE BULBS THEN REPLACE FAILED
BULBS IMMEDIATELY. ALLOW THE GLASS, LAMP AND FITTING TO COOL
BEFORE REPLACING.
IMPORTANT
To ensure correct function of the sensor this
product must be installed with a minimum distance
MIN
of 150mm between the infrared sensor and any
150mm
adjacent worktop, surface, obstruction or tile trim.
• When working at heights, please use a suitable platform to
work from.
• Please note: For new installations, check for any electrical
cables or pipe work (gas/water) in the vicinity of the intended
mounting point before proceeding with the installation.
• Ensure that the fixing location is able to take the weight of the
complete fitting.
• Wear suitable eye protection when drilling. Be careful when
using power tools near water.
INSTALLATION GUIDE
Leila 500.50.61
Leila 500.50.63
Please read these instructions carefully before installation.
Installation should be carried out by a qualified electrician.
.
HANDLE WITH CARE!
When unpacking never stand the unit on a hard
surface. Always lay flat on a soft surface.
To avoid the risk of electrocution, please turn off
the electricity mains supply before commencing
installation.
Please do not hang or drape clothing or material
over the mirror. LEDs can get very hot and this
may cause a fire risk.
Please do not place objects too close to the LEDs
as this will cause the object to burn or melt.
IEE Bathroom Zones
60CM
zone
2
zone
2
Do NOT strike mirror glass with hard or pointed items. It is
recommended that the product is cleaned with a soft, dry, non
abrasive cloth. Do NOT use cleaning agents or abrasive materials
on any type of finished surface. Do NOT allow moisture to come
into contact with the electrical components. Keep your bathroom
well ventilated where possible.
COMPLIANCE
This product complies with the following safety standards:
BS EN 60598-1: 2008+A11: 2009, EN60598-2-1: 1989
WIRING
This product is designed and manufactured in the Class 1 category,
meaning a ground wire is required.
COLOUR CODING
LIVE Brown
NEUTRAL Blue
EARTH Green & Yellow
500.50.60-63
60CM
zone
1
zone
2
225cm
