Item Description
Connects the stereo to a typical AM/FM antenna.
If you are installing the stereo on a boat with a metal hull,
you must use a ground-dependent antenna. If you are installing
ANTENNA
the stereo on a boat with a non-metal hull, you must use a
ground-independent antenna. See the installation instructions
provided with your antenna for more information.
Connects the stereo to a NMEA 2000 network (NMEA 2000
System Wiring Diagram, page 5).
NMEA 2000
Connects to an NRX series remote control directly (Configuring
an Optional Wired NRX Remote Control, page 5).
Connects the stereo to another Fusion PartyBus stereo, zone
ETHERNET
stereo, or network (Fusion PartyBus Networking, page 6).
Connects the stereo to a SiriusXM
SiriusXM stations where available (not included).
SIRIUS XM
Connects to a Fusion DAB module to receive DAB stations
where available (not included).
USB Connects the stereo to a USB source.
DIGITAL Connects the stereo to an optical digital audio source, such as
AUDIO IN TV or DVD player.
FUSE Contains the 15 A fuse for the device.
Connects the stereo to the wiring harness for auxiliary input 2,
and for the line and subwoofer outputs for zones 3 and 4.
Connects the stereo to the wiring harness for auxiliary input 1,
and for the line and subwoofer outputs for zones 1 and 2.
Connects the stereo to the power and speaker wiring harness.

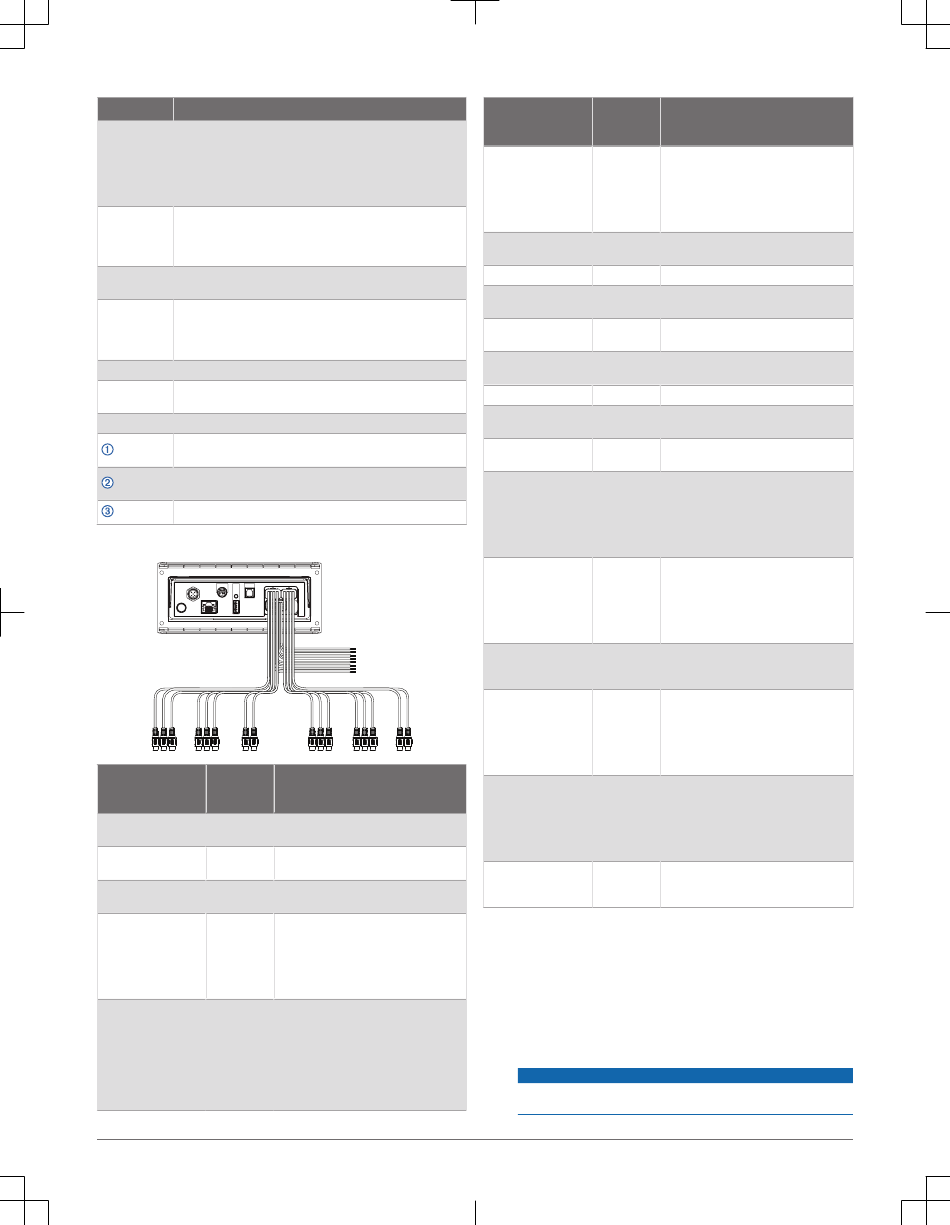

Wiring Harness Wire and Connector Identification
Bare Wire
Wire or RCA
Color or RCA
Connector Function
Label Name
Ground (-) Black
Power (+) Yellow
Ignition Red
Amplifier on Blue
Telemute Brown
Installation Instructions
Connect Tuner to receive
®
Notes
Connects to the power source (Power
Connection, page 3).
Connects to the power source (Power
Connection, page 3).
Connects to the power source (Power
Connection, page 3).
Connects to optional external amplifiers,
enabling them to turn on when the
stereo turns on.
A connected amplifier must use the
same ground (-) as the stereo for this
signal wire to function correctly.
Activates when connected to ground.
For example, when you connect this wire
to a compatible, hands-free mobile kit,
the audio mutes or the input switches
to Aux1 when a call is received and the
kit connects this wire to ground. You
can enable this functionality from the
settings menu.
Bare Wire
Wire or RCA
Color or RCA
Connector Function
Label Name
Dim Orange
Speaker zone 1
White
left (+)
Speaker zone 1 left (-) White/black
Speaker zone 1
Gray
right (+)
Speaker zone 1
Gray/black
right (-)
Speaker zone 2
Green
left (+)
Speaker zone 2 left (-) Green/black
Speaker zone 2
Purple
right (+)
Speaker zone 2
Purple/black
right (-)
Zone 1 line out (left) ZONE 1
Zone 1 line out (right)
ZONE 1 SUB
OUT
Zone 1 subwoofer out
Zone 2 line out (left) ZONE 2
Zone 2 line out (right)
ZONE 2 SUB
OUT
Zone 2 subwoofer out
Auxiliary in 1 left
AUX IN 1
Auxiliary in 1 right
Zone 3 line out (left ) ZONE 3
Zone 3 line out (right) ZONE 3 SUB
OUT
Zone 3 subwoofer out
Zone 4 line out (left)
ZONE 4
Zone 4 line out (right) ZONE 4 SUB
OUT
Zone 4 subwoofer out
Auxiliary in 2 left
AUX IN 2
Auxiliary in 2 right
Power Connection
When connecting the stereo to power, you must connect the yellow, red, and
black wires to the power source. The yellow and red wires have different
functions, and the method you use to connect them to power depends on
how you plan to use the stereo on your vessel.
Yellow wire
• This wire provides power to the stereo.
• This wire should be connected through a 15 A circuit breaker, if one is
available on the vessel.
If a 15 A circuit breaker is not available on the vessel, you must
connect this wire to power through a 15 A fuse (not included).
DRAFT
Notes
Connects to the boat's illumination wire
to dim the stereo screen when the lights
are on.
The gauge of the illumination wire must
be suitable for the fuse supplying the
circuit it is connected to.
Provides output to an external amplifier,
and is associated with the volume
control for zone 1.
Each subwoofer cable provides a single
mono output to a powered subwoofer or
subwoofer amplifier.
Provides output to an external amplifier,
and is associated with the volume
control for zone 2.
Each subwoofer cable provides a single
mono output to a powered subwoofer or
subwoofer amplifier.
Provides an RCA stereo line input for
audio sources, such as a CD or MP3
player.
Provides output to an external amplifier,
and is associated with the volume
control for zone 3.
Each subwoofer cable provides a single
mono output to a powered subwoofer or
subwoofer amplifier.
Provides output to an external amplifier,
and is associated with the volume
control for zone 4.
Each subwoofer cable provides a single
mono output to a powered subwoofer or
subwoofer amplifier.
Provides and RCA stereo line input for
audio sources, such as a CD or MP3
player.
NOTICE
