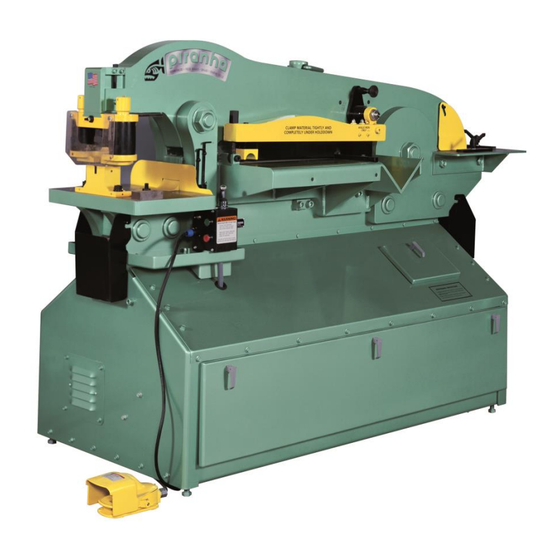

Piranha P140 Operation Manual

Ironworker
Hide thumbs Also See for P140:
Table of Contents

Advertisement

Quick Links

Download this manual

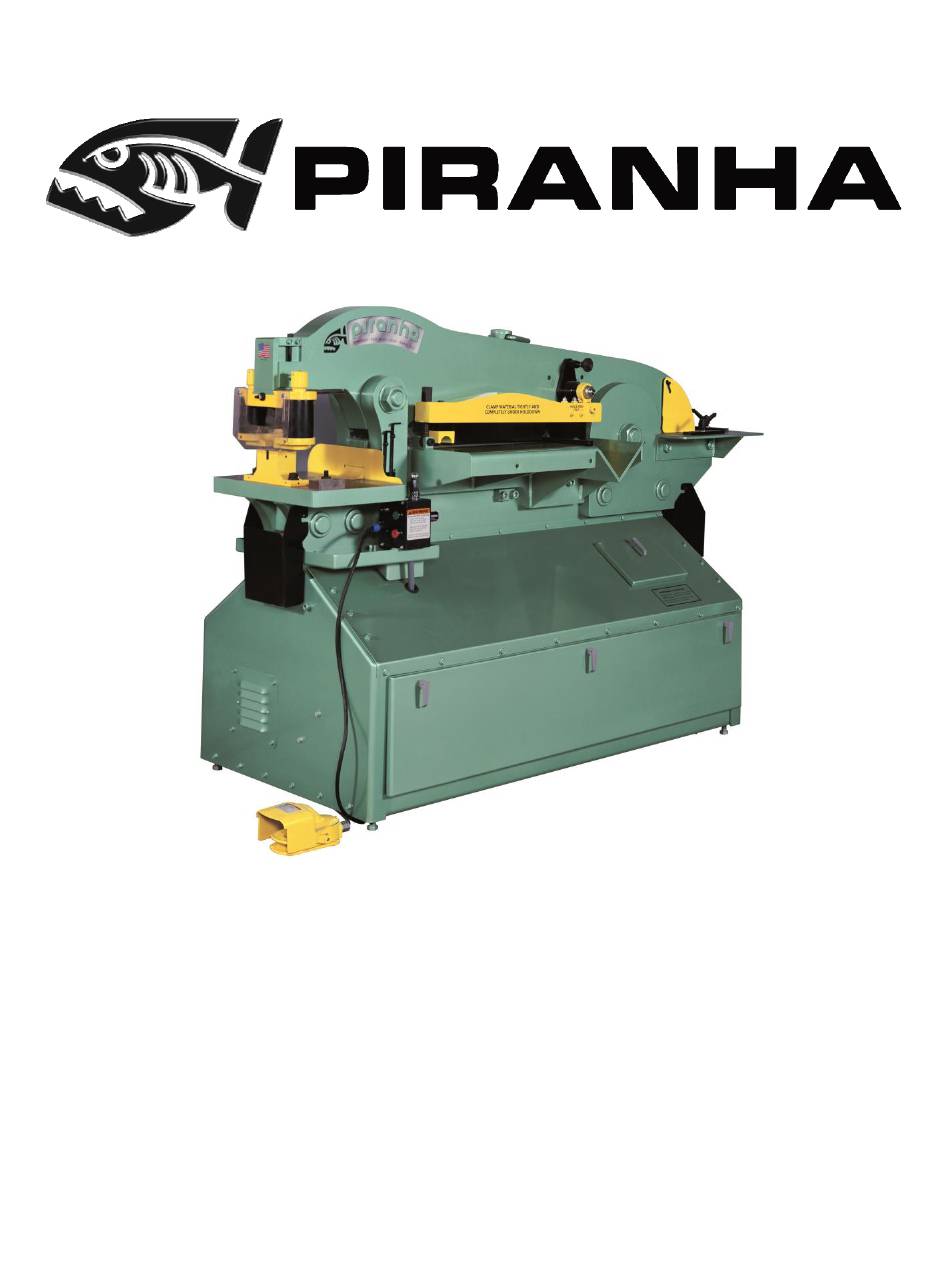

IRONWORKER MODEL NUMBER P140
For Serial Numbers P140-3001 to Current Models
Publication Date: May 3, 2022
Call us: 800-338-5471

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Piranha P140

Summary of Contents for Piranha P140

  • Page 1 IRONWORKER MODEL NUMBER P140 For Serial Numbers P140-3001 to Current Models Publication Date: May 3, 2022 Call us: 800-338-5471...
  • Page 2 Piranha Optional Tooling and Attachments Enhance your Ironworker’s Versatility Oversize Punch Attachments • Expand punching capacity up to 5" Quickset Gauging Table • Allows you to quickly set-up your punch end for multiple holes. • Includes an angle gauge bar to index off the heel of your angle and a plate gauge bar, which indexes off the end of your plate.
  • Page 3 Ironworker Manual Model P140 Be sure to register your model and serial number to receive Piranha Service and Product Updates. Support Please have the serial number or model ready when calling. For technical support: Via Phone: 815.490.0473 Via Email: service@piranhafab.com For ordering parts and consumables: Via Phone: 800.338.5471...

  • Page 4: Table Of Contents

    Table of Contents Refer to second section of this manual for information on repair parts breakdown and ordering repair parts. Table of Contents ......................4 Foreword ......................... 5 Warranty .......................... 5 Introduction ........................6 Safety Precautions ......................7 Machine Specifications ....................8 Functional Diagram ......................

  • Page 5: Foreword

    Warranty Piranha / MegaFab will replace (F.O.B. our factory) or refund the purchase price for any goods which are defective in materials and workmanship within 12 months of date of purchase. The buyer must return the warranty registration card within thirty-(30) days of...

  • Page 6: Introduction

    About Piranha Piranha is a subsidiary of MegaFab, based in Rockford Illinois. MegaFab is a manufacturer of metal fabrication machinery, including laser cutting machines, plasma cutting machines, ironworkers, press brakes, bending rolls, combination punching and cutting machines, and structural steel punching equipment.

  • Page 7: Safety Precautions

    Contact the factory for limit switch adjustments on special tooling. Turn selector switch to the "OFF" position when changing tooling or performing maintenance work. Reference Page 13, Figure B. Piranha Ironworker P140...

  • Page 8: Machine Specifications

    Machine Specifications Hydraulic System Drive Motor 15HP 230 / 460 Volt / 3 Phase Hydraulic Tank Capacity 25 Gallons Hydraulic Tank - Initial Fill 18 Gallons Aw-32 Or Equivalent Iso Grade 32 Hydraulic Oil Consult your local distributor for a cross reference. Working Surface Platen 14-1/2"...

  • Page 9: Functional Diagram

    Rear Control Box Lifting Lug (OFF SIDE) Stroke Control Hold-down Angle Table Punch Attachment Shear Table Coper Guard Coper Guides COPER PUNCH Coper Table Platen Table Chip Bucket Serial Number Chip Bucket Plate Location Front Control Foot Switch Piranha Ironworker P140...

  • Page 10: Dimensional Data

    Dimensional Data 68-1/2" 44" 35" 90" Dimensional Data...

  • Page 11: Standards Compliance

    In addition, all of the machines meet the current "Ontario Hydro" electrical code for proper manufacture of the electrical circuits. Hydraulic System Design/Manufacture: Hydraulic components used in Piranha machines are approved by NFPA (National Fluid Power Association), and those approval numbers can be traced through the manufacturer's part numbers.

  • Page 12: Installation

    Foundation To maintain the accurate alignment built into the Piranha, and to prevent undue stress on the moving parts under a load, the Piranha should be placed on a stable base or floor adequately constructed to withstand the unit weight.

  • Page 13: Operating Instructions

    Operating Instructions The Piranha Ironworker comes pre-assembled and pre-wired, requiring only the addition of hydraulic fluid in the reservoir to the mark on the fill cap dipstick and a power source from a disconnect to the electrical enclosure box located inside the cabinet.
  • Page 14 Joystick Operation The ironworker is hand controlled by a five-position momentary joystick operator. When the joystick is released from any of the four positions, it will return to the neutral (center) position stopping machine movement instantly. The joysticks are located on top of the control box at each end of the machine.
  • Page 15 ▪ Completion of downward cycle is accomplished by depressing footswitch lever again. Machine movement is down until limit setting is met (reference Figure F4). ▪ Removing foot pressure from the switch entirely allows machine movement upward to limit setting, completing upstroke cycle (reference Figure F5). Piranha Ironworker P140...
  • Page 16 Footswitch Limit Switches The footswitch is used in conjunction with the upstroke and downstroke limit switches located on the machine side off the front control box only, see figure C. ▪ The front limit switch (closest to the punch end and the lower switch of the two switches) controls the downstroke limit.
  • Page 17 11. Using the wrench supplied with the machine, tighten the flanged nuts on the setscrews to hold the die block firmly to the platen table. 12. Set the limit switches to control the length of stroke (reference procedures previously listed). 13. Start operation. Piranha Ironworker P140...
  • Page 18 Stripper Assembly Adjustment NOTE: The selector switch should be in the "OFF" position until all tooling changes are complete. Reference page 13, figure B. The adjustment of the stripper assembly to compensate for varying punch lengths should be accomplished in the following manner. See page 37 for a visual reference. NOTE: The correct adjustment should have the tip of the punch 1/16"...
  • Page 19 8. Using the wrench supplied with the machine, tighten flanged nuts on the setscrews to hold the base assembly firmly to the platen. 9. Set the limit switches to control the length of stroke (reference procedures previously listed). 10. Start operation. Piranha Ironworker P140...
  • Page 20 Shear Hold-Down Assembly Adjustment The adjustment on the hold-down assembly should be accomplished by the following manner. Reference page 35. 1. Raise the upper beam to its full upstroke limit. 2. Adjust the three-position hold-down locator per the following instructions: a.

  • Page 21: Lubrication

    Hold-down Bar (2 Places) Hold-down Pin Stripper Assembly (2 Places) Clevis Pin Lower Pull Arm Hinge Pin Crank Arm Hinge Pin Drive Motor One shot One shot from Multi-purpose per year grease gun grease Drive Motor Piranha Ironworker P140...

  • Page 22: Maintenance

    Hydraulic Oil Level The Piranha ironworker is equipped with a dipstick indicator on the fill cap located inside the access door. The dipstick is marked to help maintain proper fluid level. This should be checked as part of your normal maintenance cycle.

  • Page 23: Reference Charts

    Die Clearance (Add to Punch Size) 0.089 – 0.125” 0.01” 13 thru 11 0.126 – 0.190” 1/64” (0.016”) 10 thru 7 0.191 – 0.500” 1/32" (0.032”) Over 7 thru 1/2" Plate Over 1/2” Plate Over 0.500” 1/16" (0.063”) Piranha Ironworker P140...

  • Page 24: Tonnage Required For Punching Holes In Mild Steel

    Tonnage Required for Punching Holes in Mild Steel This table shows the tons of force required for punching round holes in mild steel derived by the formula: Force = hole diameter x material thickness x constant 80. All figures shown are in U.S. tons. For holes larger than 1 inch, the punching force can be calculated per the following example: What pressure is required to punch a 2-1/4"...

  • Page 25: Troubleshooting

    Many of these problems can be solved by following a step-by-step procedure for isolating the issue. Take notes on the steps tried, and the outcomes. This way if you are not able to fix the issue, you can pass on what has been done and tried already to the Piranha technician.
  • Page 26 P2: Machine Starts but Will Not Operate Determine if the problem is electrical or hydraulic by using the manual override buttons located on the directional valve top and bottom sides. Refer to the P-140 Valve Body Assembly on pages 45 and 46, item 6. If the machine operates, the problem is electrical. Continue with the below steps.
  • Page 27 Knives may have been ground. Shim to recommended clearance. 2. Knives may be dull and are creating a pulling effect on the shearing edge. 3. Material may be too hard. 4. Material may be thicker than rated capacities. Piranha Ironworker P140...
  • Page 28 P6: Machine Leaves Burr When Shearing 1. Knife clearance: .007" to .010". If not, follow procedure in P5. 2. Check shear knives for sharpness 3. Check that the automatic hold-down is adjusted to clamp the material securely. P7: Bent or Broken Shear Hold-Down Swing Bolt 1.

  • Page 29: Ordering Repair Parts

    The following assembly parts lists are shown in four columns. In the first column are the index numbers of the parts illustrated. The second column contains the Piranha part number, followed by the description in the third column. The last column shows the quantity of parts required for the assembly.
  • Page 30 Repair Parts Table of Contents Basic Machine Illustrated ..................31 Basic Machine Part Numbers ................. 32 Shear Hold-Down Assembly Illustrated ..............35 Hold-Down Assembly Parts List ................36 P-140 Stripper Assembly Illustrated ............... 37 P-140 Stripper Assembly ..................38 P-140 12" Bending Assembly (Optional) Illustrated ..........39 P-140 12"...

  • Page 31: Basic Machine Illustrated

    Basic Machine Illustrated Piranha Ironworker P140...

  • Page 32: Basic Machine Part Numbers

    Basic Machine Part Numbers Figure No. Part Number Description Qty. 0240142 Coper Guard 0531352 1/2" x 1-1/2" Roll Pin 0240117-1 Coper End Knife Support 0541200 1"-8 TPI x 9" HH GR-5 0581265 1"-8 TPI Jam Nut 0240155 Black Pipe Spacer 0240144 Coper Oust Cover Plate 0240124...
  • Page 33 0531005 1/4" x 3/4" Button Head Cap Screw 0581140 1/4" HN 0531088 1/2" x 1-1/2" Carriage Bolt 0330128 Co per Table Guide 0531307 1/2" Flat Washer 0531715 KP 79 Plastic Handle 0541130 5/8"-11 x 3-3/4" HH GR2 Piranha Ironworker P140...
  • Page 34 Figure No. Part Number Description Qty. 0531051 3/8" x 1-1/4" SHCS 0541185 3/4"-10 IN Lifting Lug 0240278 Lower Coper Side Knife 0240276 Lower Coper End Knife 0531069 7/16" x 1-1/2" SHCS 0240277 Upper Coper Knife 0531330 3/8" x 2-3/4" T Woodruff Key 0541100 1/2"-13 x 2-3/4"...

  • Page 35: Shear Hold-Down Assembly Illustrated

    Shear Hold-Down Assembly Illustrated Piranha Ironworker P140...

  • Page 36: Hold-Down Assembly Parts List

    Hold-Down Assembly Parts List Part Number 0240200 Figure No. Part Number Description Qty. 0340200 Hold Down Bar 0240206 Swingbolt Block 0541160 3/4" x 2-3/4" SB 0531250 5/8" Nylock Nut 0541395 3/4" x 7" CL-76 Swingbolt 0340217 Swingbolt Spring 0541396 CL-4 Coupling Nut 0340205 Round Bar Block 0340209...

  • Page 37: P-140 Stripper Assembly Illustrated

    P-140 Stripper Assembly Illustrated Part Number 0240401 Piranha Ironworker P140...

  • Page 38: P-140 Stripper Assembly

    P-140 Stripper Assembly Part Number 0240401 Figure No. Part Number Description Qty. 0260400 Die Block 0531002 1/4" X 3/4" SSS 0541085 7/16" - 14 x 3/4" SSS 0541127 5/8" x 3-1/2" SSS 0531251 5/8" FLGD Nut 0340401 Stripper Foot Assembly 0531356 3/8"...

  • Page 39: P-140 12" Bending Assembly (Optional) Illustrated

    P-140 12" Bending Assembly (Optional) Illustrated Piranha Ironworker P140...

  • Page 40: P-140 12" Bending Assembly (Optional) Parts List

    P-140 12" Bending Assembly (Optional) Parts List Part Number 4441648 Figure No. Part Number Description Qty. 0340500 Bending Dovetail Slide 0531039 3/8" x 3/4" SHCS 0340501 Bending Punch Slide Plate 0531114 3/4" x 3" Shoulder Bolt 5/8" – 11 Nylock Nut 0531250 0340502 12"...

  • Page 41: P-140 Electrical Enclosure Assembly

    PRIMARY FUSE HOLDER REAR RECP. FRONT 10 PRIMARY FUSES STARTER RECP. 6 TRANSFORMER TRANSFORMER SHOWN TAPPED AT 230 VOLT HEATERS, 3 EA SECONDARY 208V B70 VALVE RECP. FUSE HOLDER SECONDARY 230V B70 FUSE 460V B32 575V B25 Piranha Ironworker P140...

  • Page 42: Reference Electrical Diagram

    Reference Electrical Diagram Ordering Repair Parts...

  • Page 43: P-140 Front Box Assembly

    Contact Block ZB4BE101 Mounting Base with 2 each N.O. Contacts 0531678-1 *ZB4BZ103 0531696-1 Contact Block w/base ZB4BZ101* * Replacement contacts for item Number 18 requires 2 each of part Number ZB4BE101. Item Number 19 requires 1 each. Piranha Ironworker P140...

  • Page 44: P-140 Rear Box Assembly

    P-140 Rear Box Assembly Part Number 02316302-1 Figure No. Part Number Description Qty. 05316301 Rear Control Box - With Covers 0531608-1 Joystick 9001 K35 With Contact Blocks 0531609 KA-1 Contact Block 0531644 KA-2 Contact Block 05316101-1 Start Button ZB4BA3 05316111-1 Stop Button ZB4BL4 Contact Block with base N.C.

  • Page 45: P-140 Valve Body Assembly

    P-140 Valve Body Assembly Part Number 0251530-1 & 0.109 ORIFICE DISK BEGINS WITH S/N Piranha Ironworker P140...

  • Page 46: Valve Body Assembly Continued

    Valve Body Assembly Continued Part Number 0251530-1 Figure No. Part Number Description Qty. T3572 Pilot Valve 2-way T3570 Counterbalance Valve 0531559-1 Pressure Relief Valve 35/12.5 0551567-1 Check Valve 0531558-1 Single Pilot Piston Valve 0541568-1 Directional Control Valve 4-Way 0551559-1 Pressure Relief Valve 35/26 0551561-1 Solenoid Valve N.C.

  • Page 47: P-140 Motor Assembly

    6803-12 Hydraulic Fitting 0551521 55" Hose to Valve Body 0551523 27" Hose to Tank 0541532 304-C-12 Hydraulic Fitting 0541534 6503-12-4 Hydraulic Fitting 0541542 Pressure Gauge PGD-25-5000S 0351635 Valve Body Wiring Harness (not shown) LOW VOLTAGE HIGH VOLTAGE CANADIAN 600V Piranha Ironworker P140...

  • Page 48: P-140 Cylinder Assembly

    P-140 Cylinder Assembly Figure No. Part Number Description Qty. 0561503 Cylinder, Hydraulic 0260171 Cylinder Pin 0531360 1610B Zerk 1/8" P Thread 0260152 Cylinder Clevis 0531085 1/2" x 1/2" SSS 0561300 Retaining Ring, External 0531531 6801-12 Fitting 0531538 6801-12-16 Fitting 0551521 55"...

  • Page 49: Foot Switch Assembly

    0531655 Foot Switch 0531636 Cord Grip 0531637 16 - 4 SEO Cord (sold by the foot) 6 ft 0531617 4 Pole Plug NOTE: Limit Switches in foot pedal are not a stock item but can be obtained. Piranha Ironworker P140...

  • Page 50: P-140 Knives

    P-140 Knives Index No. Part Number Description Qty. 0240250 16.625 Shear Knives 0240251 20.5 Shear Knives 2402631 1/2" Rd Bar Knife - Short 0240263 1/2" Rd Bar Knife - Tall 2402641 518" Rd Bar Knife - Short 0240264 5/8" Rd Bar Knife - Tall 2402521 3/4"...

  • Page 51: P-140 Knives- Continued

    1/2" x 2-3/4" SHCS Shear & Lower Angle 0541100 Knives 0531069 7/16" x 1-1/2" SHCS, Upper Coper 0531330 Woodruff Key, Upper Coper 0531071 7/16" x 2" SHCS Lower Coper Side Knives 0541095 7/16" x 3" SHCS Lower Coper End Knife Piranha Ironworker P140...

  • Page 52: Service Record Chart

    Service Record Chart Service Record Chart...
  • Page 53 Piranha Ironworker P140...
  • Page 54 Piranha Optional Tooling and Attachments Enhance your Piranha’s versatility! Pressbrake Tooling Holders • Allows you to use pressbrake punches and dies in your ironworker for higher precision bending. Roller Feed Tables • Available in 5' lengths. • Includes rollers for angle and flat bar sections.
