Summary of Contents for Air Relax Plus AR-3.0

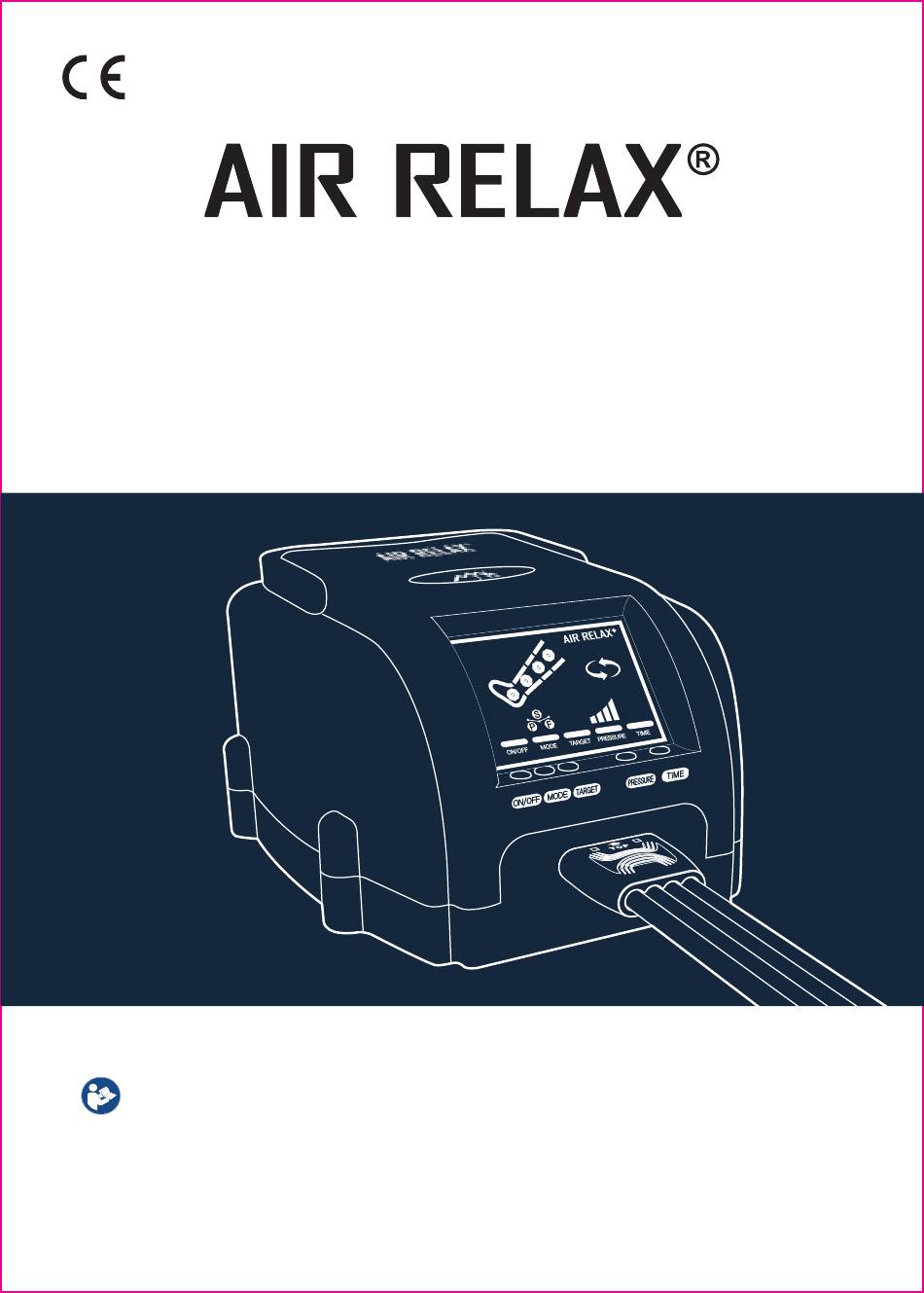

- Page 1 USER MANUAL Read all instructions before using the Air Relax Plus system. Keep this manual near to the system for quick reference. This manual presents details required by users to prevent any danger or property loss for safe use of this system.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Safety Information Labels Indications for Use and Contraindications Operation and Components Display Screen Operation Buttons Operation Cycles How to Use the Air Relax Plus System Maintenance and Storage Troubleshooting Warranty Return Policy Specifications Electromagnetic Compatibility... -
Page 3: Safety Information
Do not use the system in the presence of flammable gases, including flammable anesthetics. Do not use any AC Adapter other than that provided by Air Relax. Use of other adapters may result in electrical shock and will void the Air Relax warranty. - Page 4 To avoid the risk of electrical shock, do not open any panels from the control unit. Opening the case will void the Air Relax warranty. All maintenance tasks should be performed only by authorized service personnel.
- Page 5 WARNING If you experience severe pain, any abnormal symptoms, or want to remove pressure in an emergency during use, stop the system by pressing the power button and remove the garment(s) from your limb and consult your licensed healthcare practitioner, as required. Stop treatment in case of any change of the system performance.
-
Page 6: Labels
LABELS The following labels and symbols appear on the control unit, battery pack, garments, and/or packaging. SIMBOL DESCRIPTION LOCATION SIMBOL DESCRIPTION LOCATION Transportation & On base of control unit Follow instructions On base of control unit storage humidity and package for use limitation Transportation &... -
Page 7: Indications For Use And Contraindications
The Air Relax Plus powered inflatable tube massager is indicated for the temporary relief of minor muscle aches and pains, and for temporary increase in circulation to the treated areas in people who are in good health. The Air Relax Plus simulates kneading and stroking of tissues by using an inflatable garment. -
Page 8: Operation And Components
OPERATION The Air Relax plus control unit takes air from the surrounding environment and sends it through silicon hoses into four individual air chambers inside of the Air Relax Plus garment. COMPONENTS 1. Handle 7. Hose Plug 2. Display Screen 8. -
Page 9: Display Screen
DISPLAY SCREEN CHAMBERS : Displays four individual air chambers, as the display lights up the chamber that is displayed will fill with air. ON/OFF : Displays the power status. MODE P,S,F : Displays the operation cycle mode that is currently selected. TARGET : Displays status of TARGET operations. -
Page 10: Operation Buttons
OPERATION BUTTONS ON/OFF Button Use this button to turn the control unit on and off. When the control unit is first powerd on, the Mode P is selected by default at pressure level 1. It turns off after 15 minutes automatically as long as other buttons are not pressed during a session. - Page 11 TARGET Button Use this button to select specific chambers. The default cycle mode setting is Sequential Cycle. three four once twice times times five seven eight times times times times nine times PRESSURE Button Use this button to adjust the pressure level. This will change the intensity of the massage.
-
Page 12: Operation Cycles
OPERATION CYCLES OPERATION CYCLE OF MODE holding holding holding holding... - Page 13 OPERATION CYCLE OF TARGET...
-
Page 14: How To Use The Air Relax Plus System
Connect the AC Adapter into the AC Adapter socket on the control unit, and then plug the AC Adapter power cord into an appropriate electrical wall outlet. If you will be using the system with the Air Relax battery pack (sold separately), please consult the instructions for use that accompany the battery pack. - Page 15 3. Put on the Garment The garment is not sterile, do not place directly against open wounds, sores, rashes, infections, or stitches. A layer of clothing between garment and skin is recommended. Remove any jewelry or watches before wearing the garment. Leg Garment 1) Make sure you have the “left”...
- Page 16 HOW TO USE THE AIR RELAX PLUS SYSTEM Attach the Velcro to prevent the air pressure from causing the zipper to unzip (pop) while the upper chambers are filling up. If this happens, simply shut off your control unit and secure the zipper as suggested above.
- Page 17 Air Relax Shorts are not intended for use in a standing or seated position. Use them laying face up on a bed or any other flat surface. If you are pregnant or suspect you may be pregnant, do not use the Air Relax Shorts garment.
-
Page 19: Maintenance And Storage
MAINTENANCE Control Unit: The exterior of the control unit can be cleaned with a soft, slightly damp cloth. The control unit is not a waterproof device. Do not apply a direct stream of any liquid onto the control unit, submerge the control unit, or allow any liquid to pool on the surface of the front panel of the control unit. -
Page 20: Troubleshooting
AC Adapter socket on the control unit. - Low battery power - Charge the external battery pack. - Internal malfunction - Contact Air Relax. The control unit - Low battery power - Charge the external battery pack. does not pump. -
Page 21: Warranty
Air Relax or an Air Relax authorized reseller. In the event of any defect occurring during the warranty period, the Manufacturer will, at its option, (a) correct the defect by repair or by replacement of applicable part or component that fails as a result of such defect, without charge for the part and labor;... -
Page 22: Return Policy
7. Air Relax is not responsible for items lost or damaged during shipping. RETURN SHIPPING DIRECTIONS Step 1: Contact Air Relax or an Air Relax authorized reseller to obtain a Return Merchandise Authorization (RMA) number. Step 2: Place item(s) with original packaging and all original shipping documentation inside the shipping box. -
Page 23: Specifications
SPECIFICATIONS AIR RELAX PLUS MODEL AR-3.0 18 V , 2 A Rating Input AC Adapter Input: 100-240 V~, 50-60 Hz, 60 W / Output: 18 V , 3.15 A Battery Pack (Optional) 14.4 V , 5000 mAh, 72 Wh Type of protection against... -
Page 24: Electromagnetic Compatibility
PLUS 9535 Brasher Street Pico Rivera, CA 90660 USA +1.525.821.5225 www.air-relax.com www.air-relax.eu MODEL AR-3.0 MSI-MUL-AR-3.0 REV.1 [19.04.16]...
