- Page 1 Register your product and get support at www.philips.com/welcome User Manual 22HFL3331D/10 26HFL3331D/10 22HFL4371D/10 26HFL4371D/10 32HFL4351D/10...
- Page 2 0844 800 544 Türkiye 0800 261 3302 United Kingdom 0845-6010354 Україна 8-800-500-69-70 This information is correct at the time of press. For updated information, see www.philips.com/support. www.philips.com/support €0.07 pro Minute €0.06 Per minuut/Par minute Местен разговор Lokalni poziv Bezplatný hovor...
-
Page 3: Table Of Contents
8 Connect devices Back connector for 22 inch TV Back connector for 26 inch TV and larger Side connector Connect a computer Use a Conditional Access Module Use Philips EasyLink Use a Kensington lock 9 Product information Supported display resolutions Multimedia Tuner/Reception/Transmission... -
Page 4: Notice
1 Notice 2009 © Koninklijke Philips Electronics N.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. - Page 5 Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products. Mains fuse (UK only) This TV is fitted with an approved moulded plug. Should it become...
-
Page 6: Important
Never place liquid containers, such as vases, near the TV. If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips Consumer Care to have the TV checked before use. • Never place the TV, remote control... - Page 7 • Risk of injury, fire or power cord damage! Never place the TV or any objects on the power cord. • To easily disconnect the TV power cord from the power outlet, ensure that you have full access to the power cord at all times.
-
Page 8: Tv Overview
3 TV overview This section gives you an overview of commonly used TV controls and functions. Please read section 3 to 6 to set the basic consumer menu first, then follow the instructions in section 7 to set the Professional mode menu. - Page 9 a B (Standby-On) • Switches the TV to standby if the TV is on. • Switches the TV on if the TV is in standby b aGUIDE Switches between channel grid and programme list. c SUBTITLE Launches the subtitle menu. d AV Selects connected devices.
-
Page 10: Use Your Product
4 Use your product This section helps you perform basic operations Switch your TV on/off or to standby To switch on • If the standby indicator is off, press POWER at the side of the TV. • If the standby indicator is red, press (Standby-On) on the remote control. -
Page 11: Watch Connected Devices
Watch connected devices Note • Switch on the device before selecting it as a source on the TV. Use the AV button Press AV. The source list appears. » Press the Navigation buttons to select a device. Press OK to confirm your choice. »... -
Page 12: Use More Of Your Product
5 Use more of your product Access TV menus Menus help you to install channels, change picture and sound settings and access other features. Press MENU. The menu screen appears. » Add new device Watch TV Press the to select and navigate through one of the following menus. - Page 13 Press to select one of the following Smart picture settings. [Personal] • Lists customised personal picture settings. [Vivid] • Maximises picture settings. [Standard] • Adjusts picture settings to suit most environments and types of video. [Movie] • Applies picture settings ideally suited for movie viewing.
-
Page 14: Adjust Sound Settings
Change picture format Press A picture format bar appears. » Press to select a picture format. The selected picture format is » activated. Press OK to confirm your choice. Summary of picture formats The following picture settings can be configured. Note •... -
Page 15: Use Advanced Teletext Features

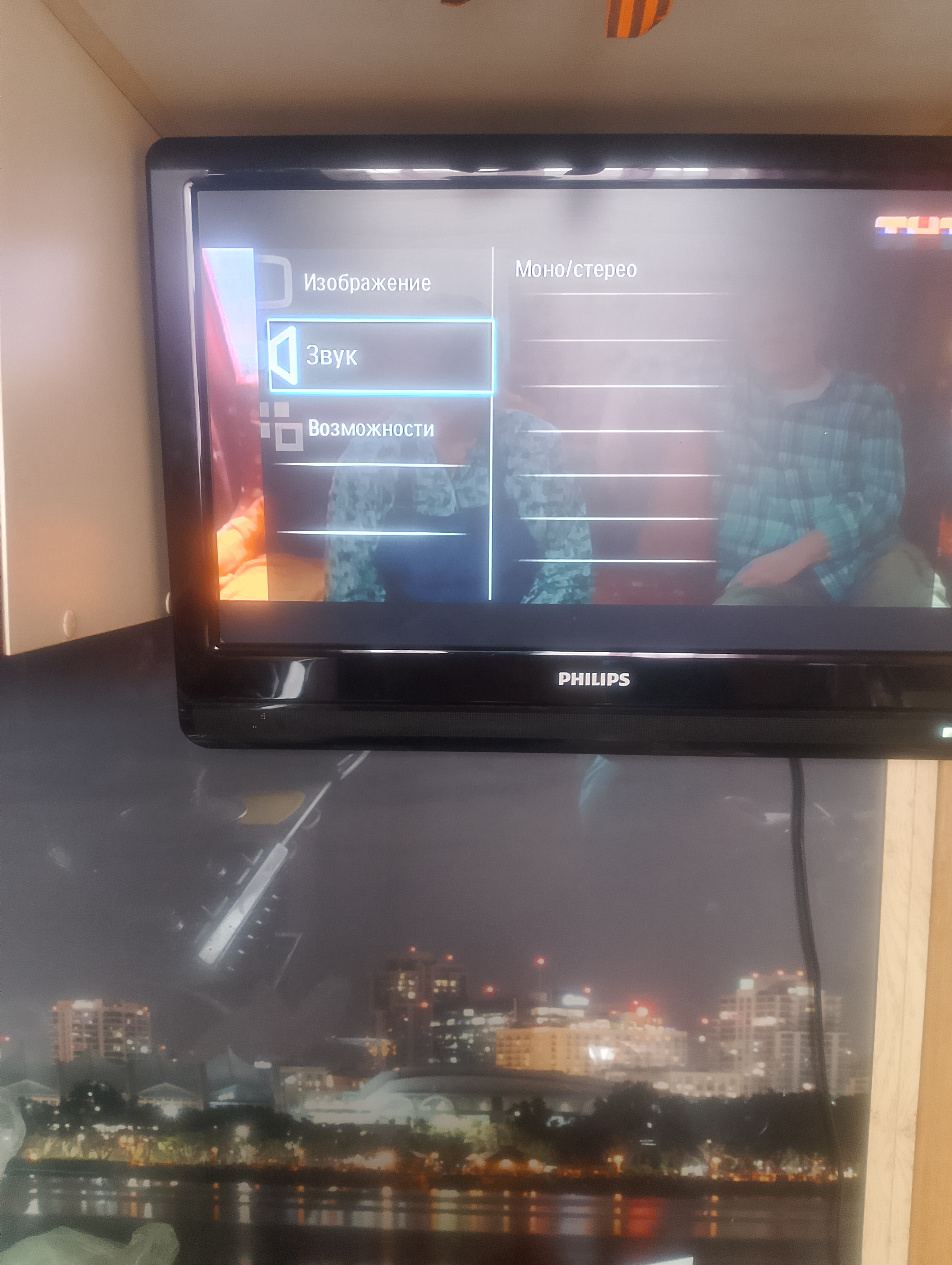

Smart sound Picture Bass Sound Treble Volume Features Vol.vis.impaired Balance Installation Audio language Software update Dual I-II Press to select one of the following sound settings. [Smart sound] • Accesses pre-defined smart sound settings. • [Bass] Adjusts the bass level. [Treble] •... -
Page 16: Use The Electronic Programme Guide
Press OK to confirm your choice. Press TELETEXT to exit the Teletext options menu. Select Teletext subpages A Teletext page can hold several subpages. Subpages are displayed on a bar next to the main page number. Press TELETEXT . The Teletext screen appears. »... -
Page 17: Use Subtitles
Press MENU. to select [Setup] > Press [Features] > [Sleep timer]. The bar appears.. » Press to set the sleep time. » The Sleep timer can be up to 180 minutes in steps of five minutes. If set to zero minutes, the Sleep timer is switched off.. -
Page 18: Use The Tv Clock
Select a subtitle language on digital TV channels Note • When you select a subtitle language on a digital TV channel as described below, the preferred subtitle language set in the installation menu is temporarily overruled. Press MENU. to select [Setup] > Press [Features] >... -
Page 19: View Photos And Play Music From A Usb Storage Device
USB storage device Caution • Philips is not responsible if the USB storage device is not supported nor is it responsible for damage or loss of data from the device. Your TV is fitted with a USB connector that enables you to view photos or listen to music stored on a USB storage device. -
Page 20: Listen To Digital Radio Channels
• Select channels and view all channels. Update the TV software Philips continuously tries to improve its (OPTIONS) products and we recommend that you update the TV software when updates are available. Check www.philips.com/support for availability. Check the current software version... -
Page 21: Change Tv Preferences
Update using OAD (On the Air software Download) If Professional mode is [On], your TV automatically receives software updates in semi-standby mode without notice on screen. The TV restarts after the software update is complete. Change TV preferences Press MENU. to select [Setup] >... -
Page 22: Start A Tv Demo
Start a TV DEMO Note Before starting DEMO, make sure to activate one of the following setting for TV DEMO to take effect: 1. [PBS settings] > [PBS mode] > [Off]. 2. [PBS settings] > [Applications] > [Signage]. Press Red button (DEMO) on the remote control. -
Page 23: Install Channels
6 Install channels The first time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available). This chapter provides instructions on how to re-install and fine tune channels. Automatically install channels This section describes how to search and store channels automatically. -
Page 24: Manually Install Channels
System searching. Please wait. Digital channels found Analogue channels found Stop When installation is complete, press OK to return to [Installation] menu. Step 4 Update the channel list You can choose to enable standby mode auto update of channels. If you enable this feature, the new channels stored in your TV will be updated every morning according to the channel information in the broadcast. -
Page 25: Rename Channels
Step 3 Fine-tune analogue channels Press MENU. to select [Setup] > Press [Installation] > [Channel install.] > [Analogue: Manual]. [Analogue: Manual] menu appears. » to select [Fine-tune] and then Press OK or to enter [Fine-tune]. Press to adjust frequency. Press OK when done. to select [Store current Press channel] to store the fine-tuned channel... -
Page 26: Professional Mode Instruction
mode instruction Introduction Included in this TV is a special functional mode that allows the TV to be configured for Hospitality or Signage applications. This feature is called Professional mode. This section has been designed to help install and operate this TV in Professional mode. Before reading this section, please read section 3 to 6 to set the basic functionality of this TV. -
Page 27: Activating The Professional Mode Setup Menu
a C button (OPTIONS) Accesses options relating to the current activity or selection. (Equals to the function of b (OPTIONS) on Guest remote control). b E button (OK) Confirms an entry or selection. c (Enters Professional setup menu) SETUP mode first. •... -
Page 28: Professional Mode Options
Professional mode options This paragraph describes the functionality of each item in the Professional mode setup menu. Layer 1 Layer 2 PBS settings PBS mode Application Consumer setup Smartloader / USB to TV TV to Smartloader / USB Store Reset Switch on settings Maximum volume Switch on picture format... - Page 29 Layer 1 Layer 2 Enable teletext Enable MHEG Enable EPG Enable subtitle Clock setup (Only Display standby available for some Display on models) Time setting Time download Download program Time offset Buzzer volume Speaker settings TV speaker enable Independent main speaker mute Default main speaker volume Installation Blank channel...
- Page 30 PBS settings [PBS mode] Enables / disables the Professional mode. • [On]: All settings in the Professional mode Setup menu are in effect. [Off]: • The TV operates as a normal (consumer) TV. [Application] When application is [Hospitality], the following are activated. •...
- Page 31 [Low power standby (Green / Fast)] Defines the power mode when TV enters to standby by pressing remote control power button or TV local power button. • [Fast]: When set, the TV will enter semi- standby mode to achieve fast powering [Green]: •...
- Page 32 Welcome message The Welcome message function allows the TV to show a customized greeting to the hotel guest whenever the TV is switched on. This helps to personalize the hotel experience for guests. The Welcome message can consist of 2 lines of text, with each line containing a maximum of 20 alphanumeric characters.
-
Page 33: Clock Setup
[HDMI-CEC in] HDMI-CEC (Philips EasyLink) enables one-touch play and one touch standby between HDMI-CEC compliant devices. Note • Before activating HDMI-CEC in function, make sure the HDMI-CEC compliant devices are turned to on. • [EasyLink] > [On] first before enabling Selects [HDMI-CEC in] in Professional mode. -
Page 34: Speaker Settings
[Time downloading] [Off]: • Sets the time manually from the [Time setting] menu. [On]: • Sets the time by downloading from the signal system in the [Download program] menu. [Download program] (Appears if you select [Clock setup] ≥ [Time download] ≥ [On]). Selects the programme where time downloading must be performed. - Page 35 [Disable auto updating] • [Software]: Disables automatic TV software update via OAD (On the air software download). [Channel]: • Disables automatic channel installation when new channels are detected. • [Both]: Disables automatic update of the TV software and the channel installation.
-
Page 36: Connect Devices
8 Connect devices This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start. Note • Different types of connectors may be used to connect a device to your TV, depending on availability and your needs. -
Page 37: Spdif Out
c EXT 1 (CVBS and RGB) Analogue audio and video input from analogue or digital devices such as DVD players or game consoles. d TV ANTENNA Signal input from an antenna, cable or satellite. TV ANTENNA e AV OUT (VIDEO OUT and AUDIO OUT L/R) Audio and video output to analogue devices such as another TV or a recording... -
Page 38: Back Connector For 26 Inch Tv And Larger
i IR LINK (Only in some models) Connector for an IR Link compliant device. (e.g. set-up box). IR LINK IR LINK Back connector for 26 inch TV and larger SPDIF a HDMI 1 (HDMI and AUDIO IN) Digital audio and video input from high- definition digital devices such as Blu-ray players. -
Page 39: Side Connector
d TV ANTENNA Signal input from an antenna, cable or satellite. TV ANTENNA e SPDIF OUT Digital audio output to home theatres and other digital audio systems. f SERV. U (For Pro+ 3v3 signal level Serial Xpress) For technical application only. g IR LINK (Only in some models) Connector for an IR Link compliant device. -
Page 40: Connect A Computer
c VIDEO Composite video input from analogue devices such as VCRs. d USB Data input from USB storage devices. (Headphone) Stereo audio output to headphones or earphones. f HDMI (Only for TVs 26 inches and larger) Digital audio and video input from high- definition digital devices such as Blu-ray players. -
Page 41: Use A Conditional Access Module
HDMI cable and HDMI-DVI adaptor • For TV of size 22 inch PC IN(AUDIO) For TV of size 26 inch and larger AUDIO IN : LEFT / RIGHT HDMI 1 / DVI VGA cable • For TV of size 22 inch only PC IN(AUDIO) Use a Conditional Access Module... -
Page 42: Use Philips Easylink
Compliant devices must be connected to your TV via HDMI. Enable or disable EasyLink Note • Do not enable Philips EasyLink if you do not intend to use it. Press MENU. to select [Setup] > Press [Installation] > [Preferences] >... -
Page 43: Product Information
5 to 40 degrees Celsius Supported TV mounts To mount the TV, purchase a Philips TV mount or a VESA-compatible TV mount. To prevent damage to cables and connectors, be sure to leave a clearance of at least 2.2 inches or 5.5cm from the back of the TV. -
Page 44: 10 Troubleshooting
Disconnect the power cable from the power outlet. Wait until the TV cools down before reconnecting the power cable. If the blinking reoccurs, contact Philips Consumer Care. You forgot the code to unlock the TV lock feature • Enter ‘8888’. -
Page 45: Sound Issues
If you cannot resolve your problem, refer to the FAQs for this product at www.philips.com/ support. If the problem remains unresolved, contact Philips Consumer Care in your country as listed in the warranty leaflet. Warning • Do not attempt to repair the product yourself. - Page 46 Index ALARM Application Hospitality Signage Batteries Channel list install Automatic Manual PayTV ring Test digital reception Troubleshooting Update clock setup Computer Connect display resolutions Troubleshooting DEMO Digital channels Test digital reception Display resolutions EasyLink disable Enable one-touch play one-touch standby Professional mode EPG factory settings HDMI...
- Page 47 Photo Slide show Picture format Picture settings POWER Low power standby Power on Smart power Technical specifications Professional mode Activat Options PBS mode Settings Remote control Professional Setup Remote control RC lock Technical specifications Troubleshooting Signage Smart card Smart settings Software version Sound settings Subtitles...
- Page 50 © 2009 Koninklijke Philips Electronics N.V. All rights reserved.
