INSTRUCTION MANUAL
www.stifnet.com
USE
- The purpose of the VIGIRO
abnormality in dangerous underspeed.
- The VIGIRO
®
SV26 incorporates a programmable rotation controller for thresholds of -33%/-20%/-11%/-6%
underspeed. It is commonly installed on bucket elevators, chain conveyors, mixers, rotary valves, belt conveyors,
etc.
®
The VIGIRO
SV26 is fixed directly at the end of the shaft by an M12 tapping for the standard version or M10 on
-
request, either with the EAZY-FIX (magnetic fixation) for a quick commissioning without tapping.

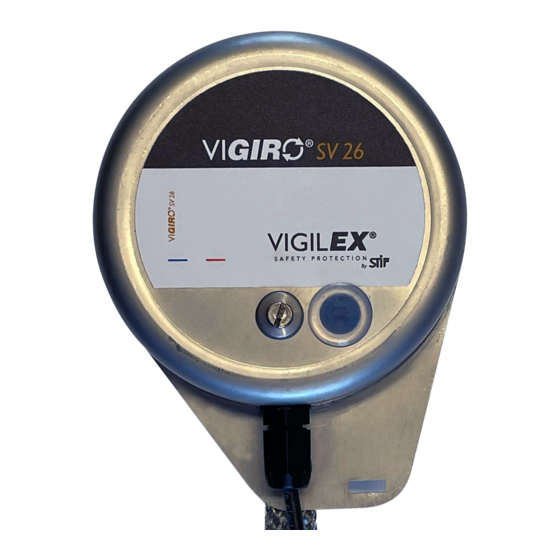

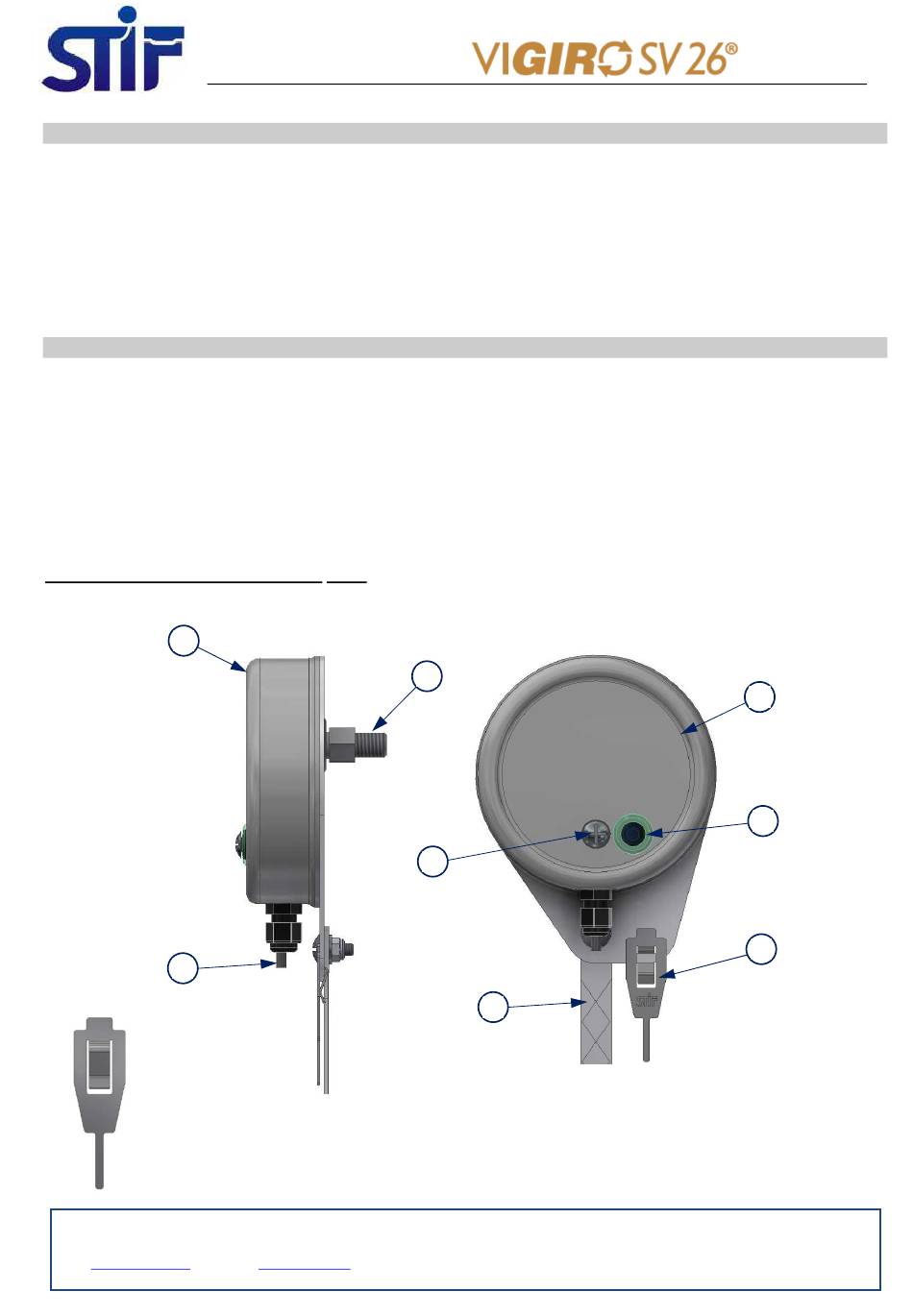

DESCRIPTION
®
- The VIGIRO
SV26 is a compact device composed of the following elements:
1. Protection skin in stainless steel.
2. Connecting cable 2m ( or 3 wires).
3. Standard M12 threaded rotation axis (M10 on request) for fixing at the end of the shaft.
4. Anti-rotation strap.
5. Detectable 2-blade propeller (optional 4-blade propeller) located inside the protection.
6. Transparent window.
7. Programming button access screw.
8. SENSOR screwdriver
Possible adjustment of the VIGIRO
-
Rotation frequency to respect 0.5... 500 rpm or 1... 1000 pulses/min.
1
2
The SENSOR screwdriver allows with its upper part to currency the screw of access to the
sensor. The lower part of the screwdriver allows to trigger the learning of the sensor.
Z.A. de la lande - 49170 Saint-Georges-sur-Loire - France
Head office, purchasing and factory:
France Export Sales Service:
email:
sales@stifnet.com
- Website:
SAS with a capital of € 800,000 - R.C.S. Angers B 328 876 503 - 84B12 APE 2511Z - VAT number FR 35 328 876 503
- DOC NO. BE0455062-B
®
SV26 is to control the constant speed of a rotating shaft, so as to identify any
®
SV26
3
7
tel: +33 2 41 72 16 80 - Fax +33 2 41 72 16 85
tel.: +33 2 41 72 16 82 - Fax +33 2 41 39 32 12
www.stifnet.com
4
GB
1/5
–
5
6
8
Advertisement
Table of Contents
Related Manuals for STIF VIGIRO SV26
Summary of Contents for STIF VIGIRO SV26
- Page 1 INSTRUCTION MANUAL – www.stifnet.com - DOC NO. BE0455062-B ® - The purpose of the VIGIRO SV26 is to control the constant speed of a rotating shaft, so as to identify any abnormality in dangerous underspeed. - The VIGIRO ® SV26 incorporates a programmable rotation controller for thresholds of -33%/-20%/-11%/-6% underspeed.
- Page 2 INSTRUCTION MANUAL – www.stifnet.com - DOC NO. BE0455062-B PRECAUTIONS ® The VIGIRO SV26 must be installed, connected and put into service only by competent personnel. The staff must have electrical authorizations, know the regulations and provisions concerning the installation of these devices, in particular for the Ex II3D version integrated into ATEX zones.
- Page 3 – www.stifnet.com - DOC NO. BE0455062-B Electrically connect the VIGIRO SV26® by respecting the electrical scheme B or C and the operating conditions depending on the version used, 2-wire or 3-wire: For low voltage sensor, ATEX or not 3-wire/NC connection scheme B...
- Page 4 INSTRUCTION MANUAL – www.stifnet.com - DOC NO. BE0455062-B To program the underspeed threshold to -20%, press and hold the button until the green LED goes out for 3 seconds, when the green LED lights up again, release the button. The green LED flashes once to indicate that the underspeed threshold is set to -20% (see scheme D). To program the underspeed threshold at -11% or -6% proceed successively in the same way as for -20%.
- Page 5 4) Only personnel trained and authorized in maintenance procedures forequipment are able to carry out inspections of the VIGIRO ® SV26. 5) The output of the VIGIRO SV26® remains closed for 9 seconds to allow the handling equipment to reach its rated speed DISPOSAL When dismantling the VIGIRO ®...
