INSTRUCTION MANUAL
www.stifnet.com
USE
- The VIGIRO
®
IP26 was engineered in order to control the constant speed of a rotative shaft. It is used for the identification
of dangerous under speed and/or the control of the production's performance.
- It is equipped with a pulses meter which is either connected on a pre-set machine or an independent security module to
identify the nominal pulses' frequency at the outlet. It is frequently installed on buckets' elevators, chain conveyors, mixers,
rotary valves, belt conveyor etc.
®
The VIGIRO
IP26 gets fixed either directly at the end of the rotating shaft with M12 tapping (M10 optional), either with the
-
EAZY-FIX (magnetic fixation) for a quick commissioning without tapping.
DESCRIPTION
®

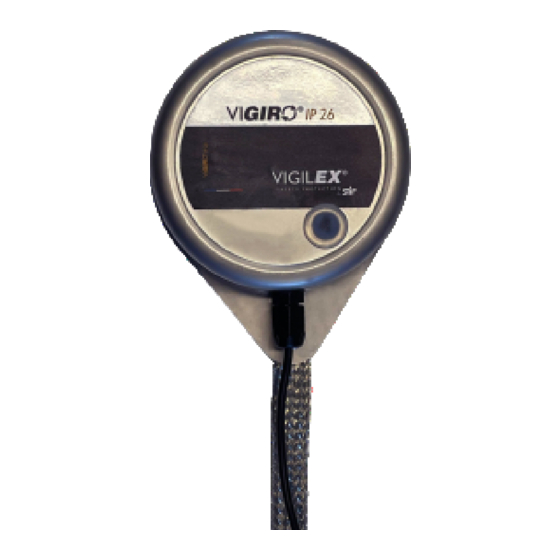

The VIGIRO
IP26 is a compact device compose of the following components:
1. Protection skin in stainless steel
2. Connecting cable 2m (2 or 3 wires)
3. M12 thread rotative axe in standard fabrication (M10 optional) for the fitting to shaft.
4. Anti-rotation strap
5. Detectable 2-blade propeller (optional 4-blade propeller) located inside the protection
6. Transparent window
Possible adjustment of the VIGIRO
Rotative frequency to be respected 0.5....500tr/min or 1...1000 impulsions/min.
-
