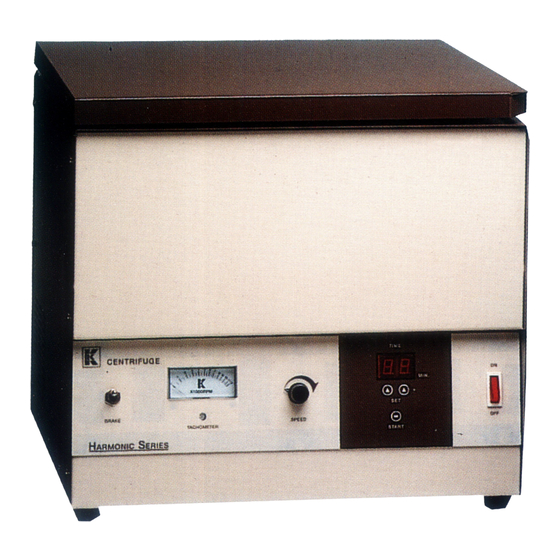

- Page 1 UNIVERSAL CENTRIFUGE PLC-012, PLC-012E, PLC-012H PLC-012BP, PLC-024 Safety Information This manual contains important and safety information. The user must carefully read and understand the contents of this manual prior to using this equipment. 2013.0310.1000...
-
Page 2: Table Of Contents
Maintenance & servicing ……………………………….. 10 Troubleshooting …………………………………………… 11 Direction to clean, transportation, storage…………………. 12 Environmental conditions for operation …………………… 12 Diagram of components, PLC-012 series…………………. 13 Wiring diagram, PLC-012 ………………………………. 14 Wiring diagram, PLC-012E ………………………………. 15 Diagram of components, PLC-024 ………………………… 16 Wiring diagram, PLC-024 ………………………………. -
Page 3: Safety Information
The motor has a max speed of 14000rpm for PLC-012, PLC-012E and PLC-012H, and 3500rpm for PLC-024 and fitted with a thermostat to regulate the operating temperature. -
Page 4: Specifications, Rotors
Specifications: PLC-012 Model PLC-012H PLC-024 PLC-012E Mechanical Timer LED digital 99 minutes Digital 99 min Dimension 35 x 35 x 29 cm 45 x 44 x 41cm Net weight 15.6kg approx. 26.0 kg Motor Brush AC 80W Brush AC 250W... -
Page 5: Warning, Intended Use
IMPORTANT： ： ： ： BIOHAZARD This Centrifuge is intended for in-vitro diagnostic use, when the bio specimen is loaded, such as Blood, Reagent, Urine etc., the user is strongly requested to wear Gloves and Goggles for protection. WARNING！ ！ ！ ！ (PLC-024) Heavy, Risk of Injury CAUTION：... -
Page 6: Definition
Definition： ： ： ： Micro Centrifuge Means to use for volume up to 2.2ml micro-tubes of DNA precipitations and purifications. Micro Haematocrit Centrifuge Designed for use of 24 places of 1.2mm (or 1.5mm) x 75mm (Dep.) capillary tubes for HCT test, which defines the percentage of Red Blood Cells against the whole body reflecting the status of Red blood Cells. -
Page 7: Operation
Do not open the lid only until the rotor is stopped completely. There is possibility on person injury if you violate this regulation. Gemmy will not ensure any responsibility if you violate this regulation. A safety lid locking device is functioned to shut off power when... -
Page 8: How To Use Reading Scale For Hct
How to use Reading Scale for HCT： ： ： ： When Rotor No. F-2415 is used for the Hematocrit test of HCT value, the following direction is the way to read the scale: 1、 Remove the capillary tubes from the rotor head carefully； Warning: Do not let the blood drain out of the tubes. -
Page 9: How To Change Rotors
How to change rotors for Universal Centrifuge When change rotor to meet your application for Universal Centrifuge, please refer to the following procedures: 1. Disconnect the power supply to prevent the electrical shock. 2. Find the “L” shape wrench (#1) and loosen counterclockwise the bolt that connected rotor and motor to remove the rotor. -
Page 10: How To Calibrate Speed Indicator
WARNING： ： ： ： Take care of the HIGH SPEED when calibrate the speed which may cause personal injury. GEMMY recommend the 2 engineers for speed calibration, one uses digital tachometer to measure the practical speed and the other one adjust the speed indicator. -
Page 11: Disassembly
For sake of safety, the disassembly to this equipment is strictly limited to the qualified personnel or licensed engineers only. GEMMY will not ensure the responsibility if user violates this regulation. Remove screws from the sides of steel case to release the upper and down case set. -
Page 12: Maintenance & Servicing
MAINTENANCE & SERVICING： ： ： ： To avoid electrical shock, always disconnect from power supply prior to maintenance & Servicing. People other than the qualified personnel or licensed engineers are strictly prohibited from maintenance and servicing. Always use a properly grounded electrical outlet of correct voltage and current handling capacity. -
Page 13: Troubleshooting
Troubleshooting： ： ： ： Problem Possible cause Corrective action - Blown fuse - Replace new one - Disconnected linkage - Connect linkage Can’t connect - Defective power switch - Replace new one - Worn carbon brushes - Replace new one power - Burnout motor - Replace new one... -
Page 14: Direction To Clean, Transportation, Storage
Direction to Clean： ： ： ： Disconnect from power supply prior to clean. Clean the equipment after every use. Use a moist cleaning cloth to clean the case, rotor and tube holders Dry the equipment thoroughly before operation. Do not immerse this equipment in water. Never use benzine or paint thinner for cleaning. -
Page 15: Diagram Of Components Plc-012 Series
Diagram of Components PLC-012 Series Code Description Code Description Cover Chamber, Lock Brass connector Toggle switch, brake Rack, motor Speed indicator Motor, 80W, AC, brush VR, speed regulator Rubber support, Timer Bearing, motor Control knob, VR Generator, motor Control knob, timer... -
Page 16: Wiring Diagram Plc-012
Wiring diagram PLC-012... -
Page 17: Wiring Diagram, Plc-012E
Wiring Diagram PLC-012E, PLC-012H... -
Page 18: Diagram Of Components Plc-024
Diagram of Components PLC-024 Code Description Timer, 99 minutes Control knob, VR Cover Rocker switch, power Lock Suction feet, 4 required Connector, motor/rotor Rotor Rack, motor Rubber gasket, chamber Rubber support, 3 required Chamber Motor Hinges, 2 required Generator, motor Micro switch, safety shutout Circuit board, PCB Inlet, power cord... -
Page 19: Wiring Diagram Plc-024
Wiring diagram PLC-024... -
Page 20: One Year Limited Warranty
One Year Limited Warranty Your GEMMY product is guaranteed to be free from defects in materials and workmanship for one (1) year under normal use from the date of purchase. This WARRANTY does not apply to any product damaged by accident,...
