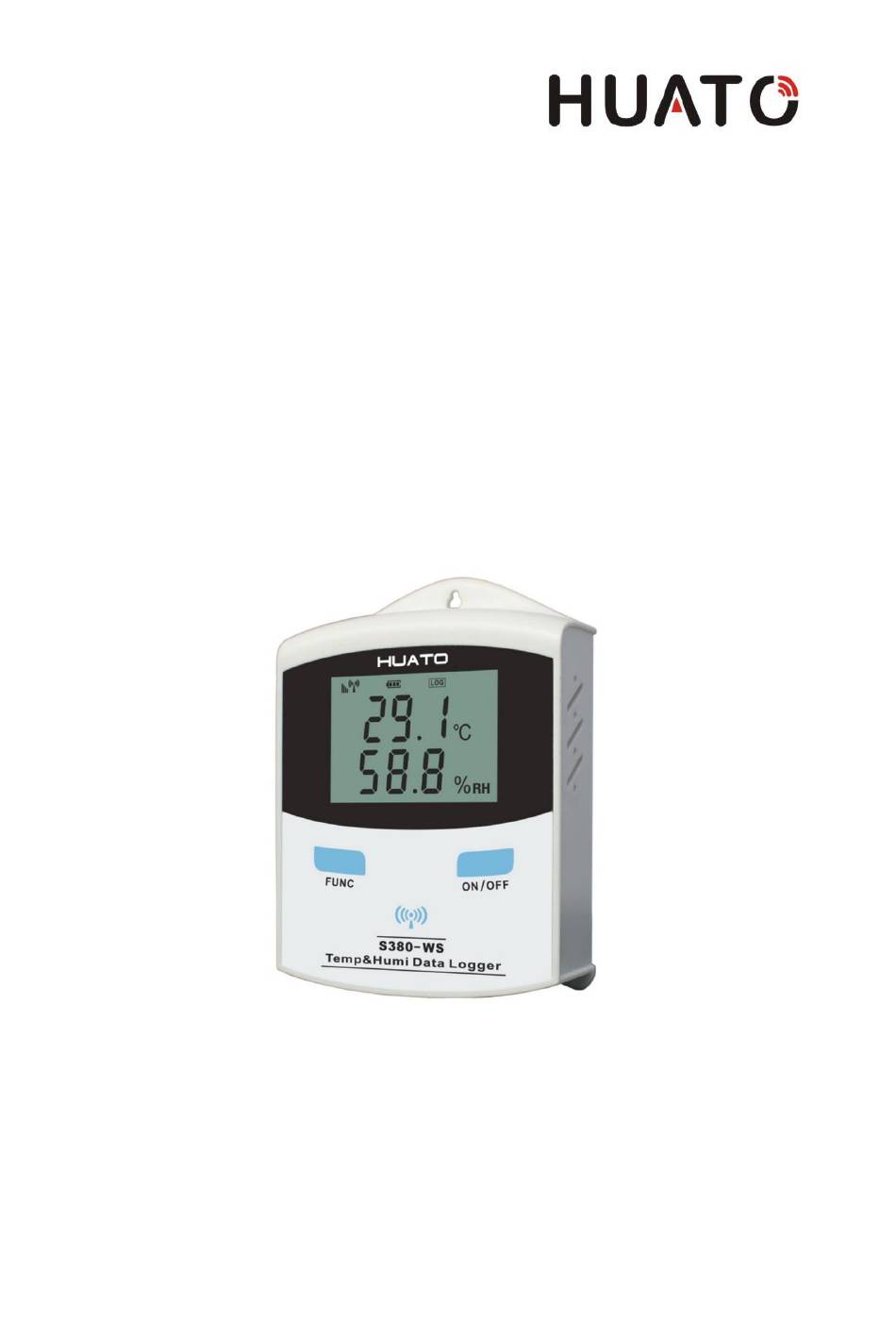

- Page 1 S380WS Series User Manual S380WS...
-
Page 2: Table Of Contents
Chapter 1. S380WS Data Logger Hardware ................3 1.1 Introduction ........................3 1.2 Features ........................3 1.3 Model ..........................3 1.4 Appearance (S380WS) ....................4 1.5 Screen (S380WS) ......................4 1.6 Install battery ........................ 5 Chapter 2. Logpro Software ...................... 6 2.1 The Requirement of the Computer Hardware .............. -
Page 3: Chapter 1. S380Ws Data Logger Hardware
Chapter 1. S380WS Data Logger Hardware 1.1 Introduction HUATO S380-WS data logger comes with large capacity, up to 120,000 readings. It can record at last for one year's data base on sampling frequency of 10minutes, also very safe. It comes with matched software for data download and transfer to computer when needed. -
Page 4: Appearance (S380Ws)

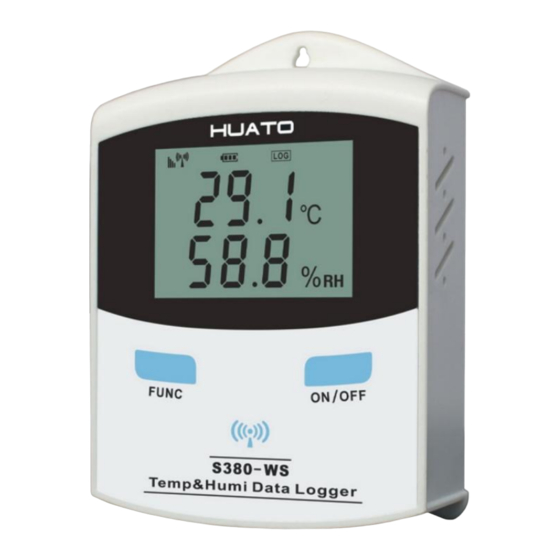

1.4 Appearance (S380WS) LCD Display USB Interface ON/OFF(Log) Wall-mounted Back Cover ON/OFF(Power) Power Back Cover 1.5 Screen (S380WS) Power Symbol DC power Symbol Signal Symbol LOG (Recording) Status Symbol Selectable ℃/℉ Symbol Wireless Symbol ℃/℉ Display Humidity Symbol RH Display... -
Page 5: Install Battery
1.6 Install battery Take out the back cover as the indication symbol Install 2 x ER14505 (3.6V) Lithium batteries... -
Page 6: Chapter 2. Logpro Software
Chapter 2. Logpro Software 2.1 The Requirement of the Computer Hardware OS: Windows XP/Vista/7/8 (32/64bit) CPU: 1.6GHz Physical Memory: 512MB Hard-drive Space: 4 GB USB Port: 1 2.2 Install Driver & Software Install Driver Notice: Windows 64bit please install 64bit-driver. Install Logpro Software Notice: Please Install Logpro Software in D:\... -
Page 7: Setting The Logger's Properties
2.3 Setting the Logger’s Properties 1. Connect the data logger to the computer. 2. Running Logpro software on the PC. 3. From the toolbar select Connect. 4. Read the logger’s properties. 5. Set the properties. 6. Sync the properties & time. (The PC time will be synchronized to the logger as well.) Now, the data logger is in Standby mode 7. -
Page 8: Properties Description
2.4 Properties Description Property Text Description Name English Letters or Numbers Name of the logger 10 Characters Must be the same as the one in the label of logger. Sampling Interval (s) Number from 1 to 240 Sampling frequency in LCD screen Logging Interval (s) Number from 2 to 86400 Logging frequency / S400 Upload frequency... -
Page 9: Chapter 3. Attention
Chapter 3. Attention S400W / S380WS Series Data Logger are not waterproof. Do not connect loggers with computer when the logger is on water. S400W / S380WS Series Data Logger plastic shell is ABS, flame retardant, not resistant to acid and alkali.
