Summary of Contents for Orava RR-65

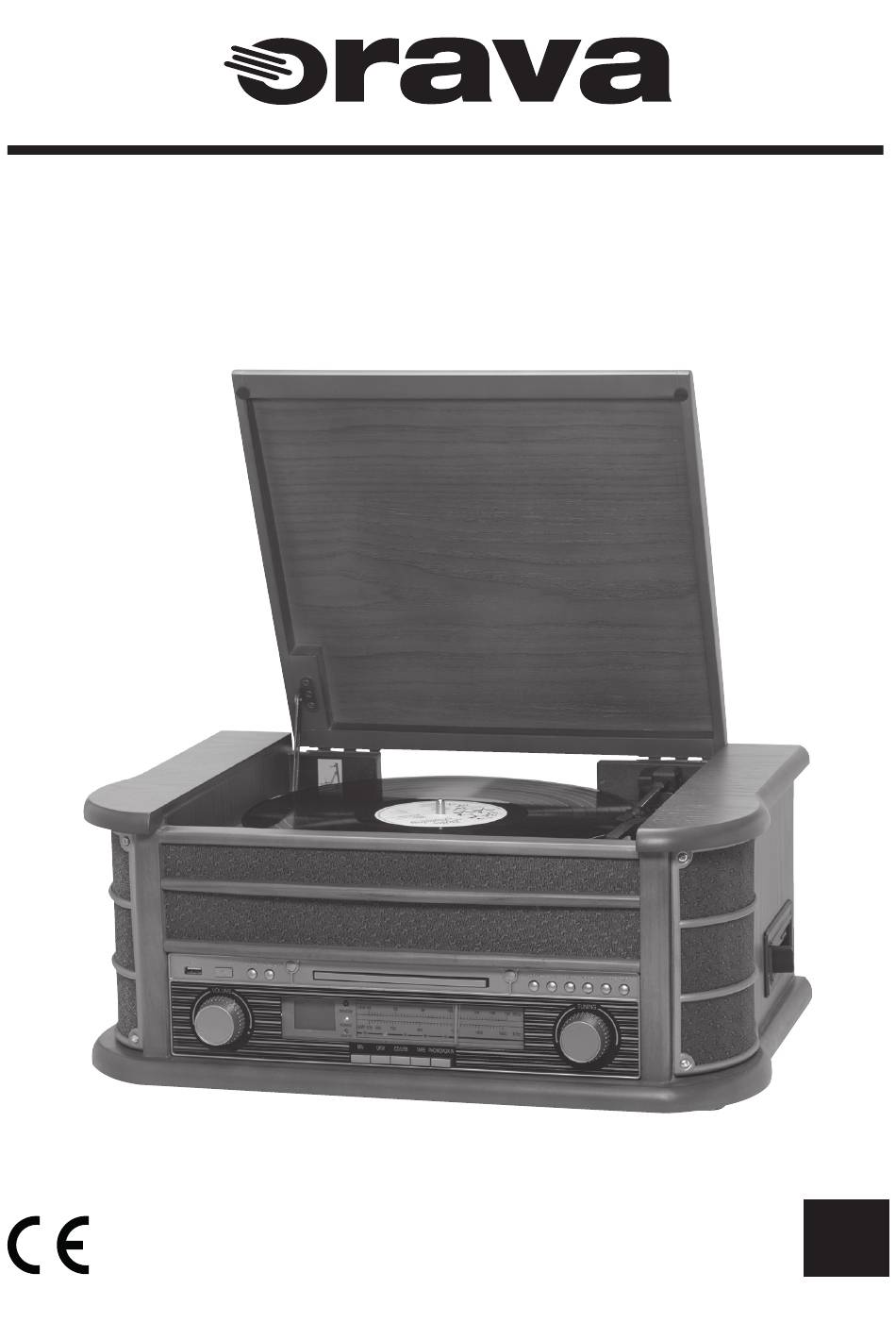

- Page 1 Retro radio with gramophone, CD player, cassette recorder, USB connector Instruction manual RR-65 © 2019 ORAVA...
-
Page 2: Intended Use Of The Device
Always keep these manual external influences of the operating instructions together with the device environment. for future reference and use by new Orava electrical appliances are manu- users. factured according to the state of the art and recognized safety rules. •... - Page 3 • The power cord plug of the device Operating environment characteristics must be compatible with the power 1. Ambient temperature: +5 ÷ +40 ° C socket. Never use any adapters or 2. Humidity: 5 ÷ 85% otherwise modify the socket. Do not use unsuitable and damaged sockets.
-
Page 4: Safety Of Persons
1.4 Safety of persons 1.5 Cleaning, maintenance and repair • This device is intended for use by p e r s o n s w i t h o u t e l e c t r i c a l •... - Page 5 This symbol warns users • Before commissioning, clean the that the device is working device according to the instructions with hazardous electrical in the „Commissioning“ section. voltage. Do not remove „Cleaning“. the protective covers • Never clean the device, the remote on the device.
- Page 6 Location/Installation Warning! • Only place the device on: • Place the device in a place where - Flat, solid and stable pads children cannot reach it freely. - for tables and stools, for furniture • Keep children away from the device. parts suitable for placing audio / The device may fall over children video equipment.
- Page 7 • Unplug the unit from the wall Power Supplies / Batteries socket if you leave children or • Safety instructions for the remote incompetent persons unattended control power supply - for batteries. Always store batteries out of the re- near the unit. ach of children.
-
Page 8: Disc Notes
About the instruction manual • The information in this manual mainly describes the controls on the device. You can also use the controls on the remote control to control the system if they have similar or the same names as the controls on the device. - Page 9 Notes on classic LP discs Handling of gramophone discs • Hold the disc only at the edges to prevent contamination of the surface. Do not touch the surface of the disc and grooves. Dirt and mechanical damage reduce reproduction quality. •...
-
Page 10: Supplied Accessories
Supplied accessories Make sure you have the following accessories with your device. Instruction manual (1) Remote Control (RC) (1) -
Page 11: Index Of Parts And Controls
Index of parts and controls Gramophone rf Turntable plate rg Center adapter for SP plates at 45 rpm. rh Pick up arm lift control Pickup Arm Lift. rj Automatic stop control rk Speed switch (33, 45, 78 rpm) rl Arm Holder of pick up with fuse t;... - Page 12 Device body 1 Top cover qk UKW button (LED indicator on scale) Gramophone cover Turn on the radio (FM band) 2 Cover Support Bracket ql CD/USB button (LED indicator on 3 Speakers scale) 4 USB connector Turn on the CD / USB input w;...
-
Page 13: Remote Control
Remote control wl Button A ej Button > UP/FF Open / close the disc tray. Move forward. Hold down the button eg Button REPEAT for fast forwarding. Repeat play es Button +10 eh Button . DN/FB Switch back 10 tracks ef Button DELETE Feed backward. -
Page 14: Back Panel
Back panel r; FM wire antenna connector ra AC (230 V / 50 Hz) Mains cord. Connecting to an electrical socket. rs LINE OUT (L/R) jacks Connects an external audio device to output the audio signal to the connected equipment rd AUX IN connector Connecting an external audio device to input the signal from the connected... - Page 15 Activate the remote-control battery The system can be operated with the supplied remote control. The battery is already inserted, activate it by pulling out the insulating foil. If the battery runs out, replace it with a new one of the same type.
- Page 16 Connecting Back panel FM wire antena A Adjusting antennas To listen to the radio, set the FM antenna. Notes • Keep the unit away from other components in order not to be noisy. • Extend the FM wire antenna to its maximum. •...
- Page 17 B Connect the power cord Connect the power cord to an easily accessible electrical socket with a rated voltage of 230V / 50Hz. If you notice any problem, immediately unplug the power cord from the wall socket. C Connect line output to another audio device Connect the LINE OUT (L/R) jacks on the rear panel using an RCA cable with the audio input jacks on another audio device.
-
Page 18: Preparation For Use
Preparation for use 1 Carefully remove the device from its packaging and remove any packing material. 2 Unwind the cord and stretch it to its full length. 3 Unwind the FM wire antenna and extend it to its full length. 4 Place the device on a flat, solid surface with access to the wall socket, away from direct sunlight, and sources of excessive heat, dust, moisture, shock, and strong magnetic fields. -
Page 19: Basic Operations
Basic operations 1 Press POWER to turn on the unit. The power indicator lights up. 2 Select the desired audio source (MW / UKW / CD / USB / SD / TAPE / PHONO / AUX IN) by pressing the appropriate sound / input source. 3 Turn VOLUME on the unit to adjust the volume. - Page 20 Gramophone - Playing Classic Discs (PHONO) This device has a full-featured three-speed belt driven turntable. This allows you to play the tracks or record tracks from them. You can play discs at 33, 45, and 78 rpm. 1 Press POWER to turn on the unit. 2 Press PHONO to turn on the gramophone (select turntable input source).
- Page 21 CD Player (CD) 1 Press POWER to turn on the unit. 2 Press CD / USB to select CD source. 3 The CD disc display (“- - -” and DISC icon) appears on the display. If you insert an MP3 CD, the MP3 icon is also displayed 4 Press A OPEN / CLOSE on the remote control.
- Page 22 Program compilation This feature allows you to build a program of up to 32 tracks. Tracks can only be programmed during stop (STOP). In Program Playback mode, the repeat and shuffle play modes do not work. The program can only be set up when the disc is closed. 1 While stopping by pressing STOP and pressing PROGRAM on the transmitter, turn on the programming mode.
- Page 23 Play files from USB storage units. The device can play audio files from USB storage devices. 1 Press POWER to turn on the unit. 2 Press CD/USB to select the CD source, then press FUNCTION to display the USB icon on the display.
- Page 24 Recording from CD / TAPE / PHONO / AUX sources to USB drive First, connect the USB drive you want to record to. There must be free space on the unit and not write-protected. Radio recording is not possible. CD recording 1 Press CD / USB to select the CD recording source.
- Page 25 UKW Radio Recording (FM Radio) 1 Press the UKW button to select the radio mode. 2 Find and tune in the radio station whose signal you want to record. 3 Press RECORD twice. The REC mark appears on the display and the radio station starts recording.
-
Page 26: Tuning To Radio Stations
Tuner (FM/AM radio) You can tune in stations in the FM (UKW) and AM (MW) radio bands. Turn down the volume to the minimum level before tuning. Tuning to radio stations 1 Press POWER to turn on the unit. 2 Press MW to select AM band, or press UKW to select FM band. 3 Turn TUNING on the unit to tune to the desired station. - Page 27 External audio source (AUX IN) The device can reproduce sound or record audio from the connected external audio device. 1 Connect the audio output jacks on another device (eg PC) to the AUX IN jack on the rear panel using a suitable cable. 2 Press POWER to turn on this unit and turn on the connected device.
- Page 28 Cassette Player (TAPE) The device allows you to play classic cassette tapes, respectively. record tracks from the tape being played. 1 Press POWER to turn on the unit. 2 Press TAPE to select the audio source (input) from the tape (TAPE). Insert a pre-recorded tape into the slot in the cassette player so that it fits completely and in the correct position.
-
Page 29: Maintenance
Maintenance Cleaning the device surface Use a soft cloth slightly moistened to clean the surface, panel and controls in a fine cleaning solution. Do not use abrasive cloths, cleaning powders, or solvents such as thinner, petrol, or alcohol. Cleaning the laser lens Use a commercially available blower used to clean camera lenses to clean the laser lens. - Page 30 Handling tapes There are two common causes of problems when using tapes: 1. Tapping - leads to uneven playback speed 2. Tape Rewinding - When the tape is wound on moving parts of the mechanism To reduce the likelihood of these problems occurring, the following precautions should be followed: •...
-
Page 31: Troubleshooting
Troubleshooting If a problem occurs during system operation, try resolving it using the report below before proceeding with the repair request. If any problem persists, contact your nearest dealer. Power supply The device does not turn on. , Check that the power cord is correctly plugged into an electrical socket. Sound There is no sound. -
Page 32: Operation
Operation The stations cannot be tuned. , Check that the antennas are set correctly. Adjust the antennas. , The station signal is too weak. Tune in to a stronger station. The remote control does not work. , There are obstacles between the remote control and the system. Remove obstacles. -
Page 33: Technical Specifications
Technical specifications CD player / recorder Frequency range: 100 - 16,000 Hz (+/- 4 dB) Signal to noise ratio: 55 dB Distortion: Below a measurable limit Quantization: 16 bit - linear/channel Scanning device: Semiconductor laser Wavelength: 790 nm Laser radiation: Continuous, max. - Page 34 DECLARATION OF CONFORMITY Abbreviated Statement of Conformity: ORAVA retail 1, a.s. hereby declares that the RR-65 complies with the essential requirements and other relevant conditions of Directive 2014/53 / EU of the European Parliament and of the Council. The full text of the Declaration of Conformity is available at: www.orava.eu...
