Ironside 102777 Operation Manual

Multi-Function Jump Starter

102777
Operation Manual
Thank you for choosing the Ironside jump starter.
Always follow basic safety precautions when using electrical device.
Read all instructions carefully.

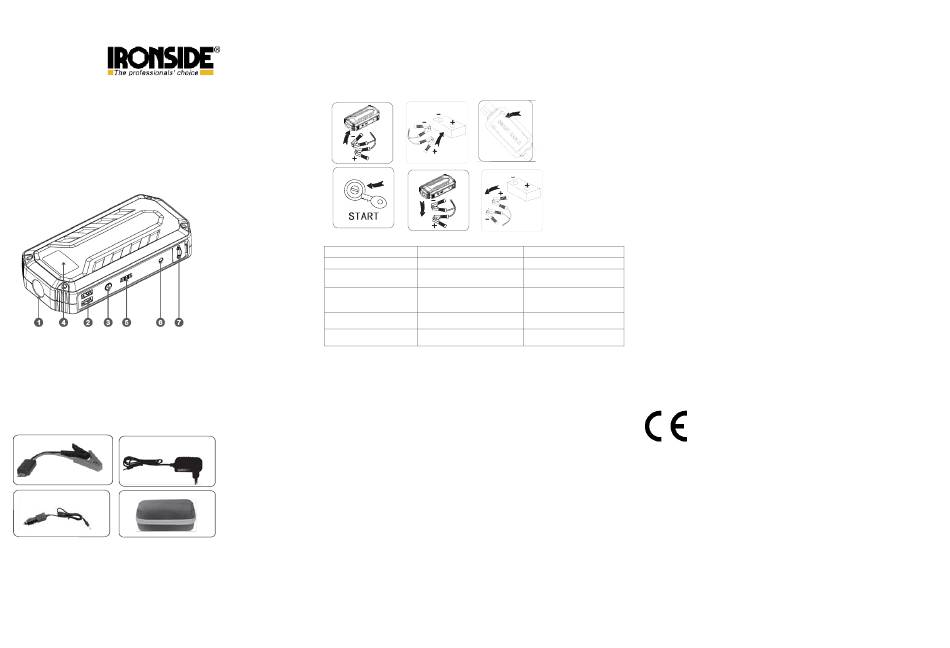

Identification parts

Products and accessories

1. LED Light
2. 5V USB Output
3. Func Button
4. Capacity indicators
5. Master Switch
6. Charging Input
7. Output jack of the jump starter

Operating Instructions

1. How to get the engine started?
Make sure the Jump starter is fully charged.
Check the indicators (4). Make sure the smart clamp i s plug to the jump starter
output jack (7), connect the positive and negative terminal to the car battery
red clamp to positive and the black to negative.
Start the car o n l y when the green indicator lights long.
When the vehicle is started, unplug the jumper cable from the car battery. Leave
the vehicle running!

Indicator light

Indicators Causes
Red lights long Battery is not enough charged
Red & Green light one by
Check the clamp polarity
one
Clamps are short circuit or the
Red flash & buzzer gives
positive and negative poles are
long sound
reversed
Clamps are connected
Green lights
Ready start the car
Red & Green light together Get the car started successfully End the operating
2. LED flash light
Press the switch (5) to "ON" position, then press the button (3) for 3 seconds to
switch on the LED lighting system, and then press button (3) to change different
lighting way. The LED light will go on from normal to SOS signal, strong flash. Long
press can shut off the LED light.
3. How to charge devices with the jump starter?
Push the master switch button (5) of the jump starter to "ON" position, then short
press the button (3), the indicator lights which means the product can charge
phones and tablet PC.
4. How to charge the jump starter?
Connect the matching charger to the jack (6), the other to a power source terminal
(220V/110V grid or 12V car power). The indicators (4) on the starter begin to flash
when charging.
The jump starter is full charged if the indicators turn off.

Specifications

• Capacity:11100mAh (3700mAh*3)
• DC Input:15V 1A
• USB Output 1: 5V 2.1A
• USB Output 2: 5V 1A
• DC Output: 12V 5A Start current: 200A
• Peak current: 300A (can keep 400A for 0.5 seconds)
• Start voltage: 12V
• Operating Temperature: -20-60℃

Cautions

1. In case of no using the battery for long time, please keep some capacity in the
battery. We suggest to full discharge and charge the battery for at least one
time.
2. During the charging process the battery may heat a little this is normal process
3. Do not use or leave the battery in a high temperature environment and keep
away from humidity and explosive environment. Do not charge the jump
starter under zero degree please!
4. Do not transport or store the battery together with metal objects！
5. Do not clean the product with rough chemicals, like soap or something with
strong acid or strong base!
6. Do not drop the product!
7. Keep away from children!
8. Do not leave or burn the product out of work!
9. Please wait at least 1 minute if continuously start a car!
10. Please keep away from car engine when start the car, in order to avoid body
harm from engine rotation!
11. Please disconnect the jump starter and the car battery after engine starting,
in order to avoid any damages!
Handling
12. Please try again if turning the key more than 3 seconds without start car
Charge the Jump start battery
successfully! And do not turn the start key for too long time please!
Connect the positive and
13. Please take off the clamps after start the car successfully for prolonging the
negative terminal to the car
cycle life of the product!
Unplug the connector of the
14. The start output jack is for starting car only.
battery clamp and take off the
15. Do not charge the jump starter immediately after starting car please, charge
clamp from the battery poles
it after 30 min.
Turn the key to start the car
16. Operating Temperature: -20-60℃
17. Storage Temperature: 0-40℃
18. Turn the master switch to "OFF"!
