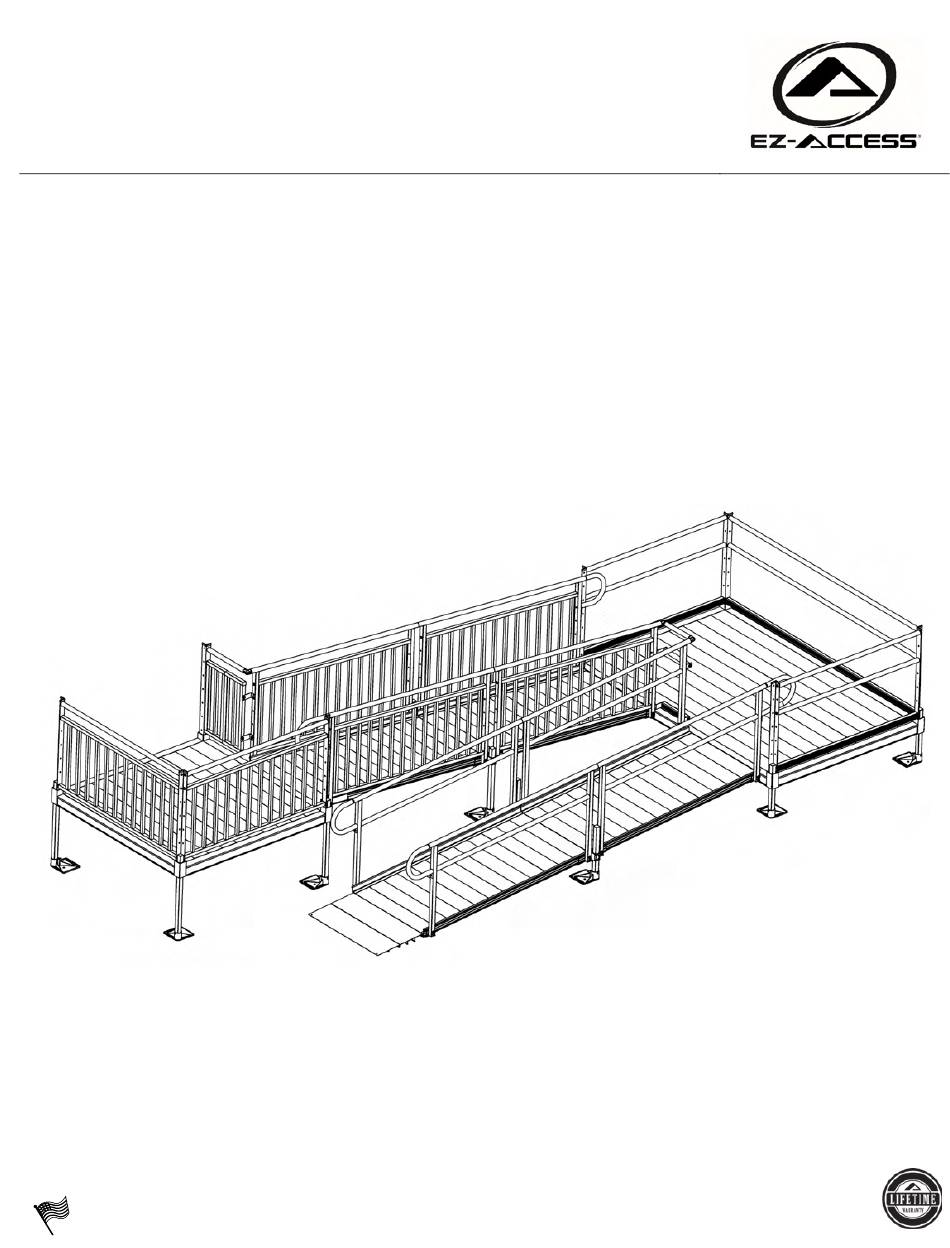

Assembly Manual
PATHWAY
3G Modular Access System
®

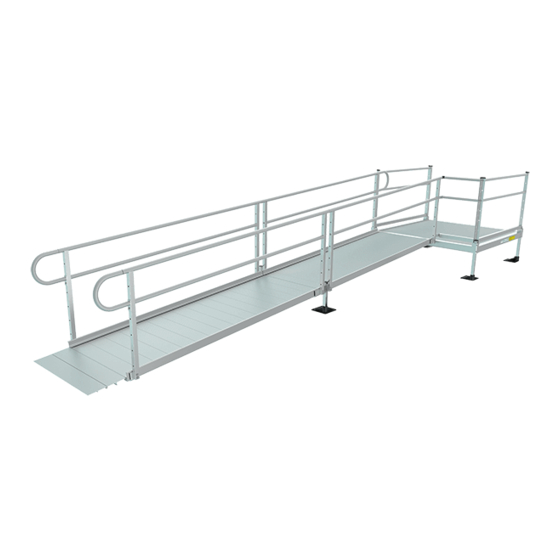

Image shown with multiple ramp and
platform handrail options.
LIFETIME WARRANTY. Please register at www.ezaccess.com/warranty-satisfaction.
© EZ-ACCESS
®
, a division of Homecare Products, Inc. All rights reserved.
All text and images contained in this document are proprietary and may not be shared, modified, distributed,
reproduced, or reused without the express written permission of EZ-ACCESS.
Manufactured in the USA
16397 REV 04-18-2022
