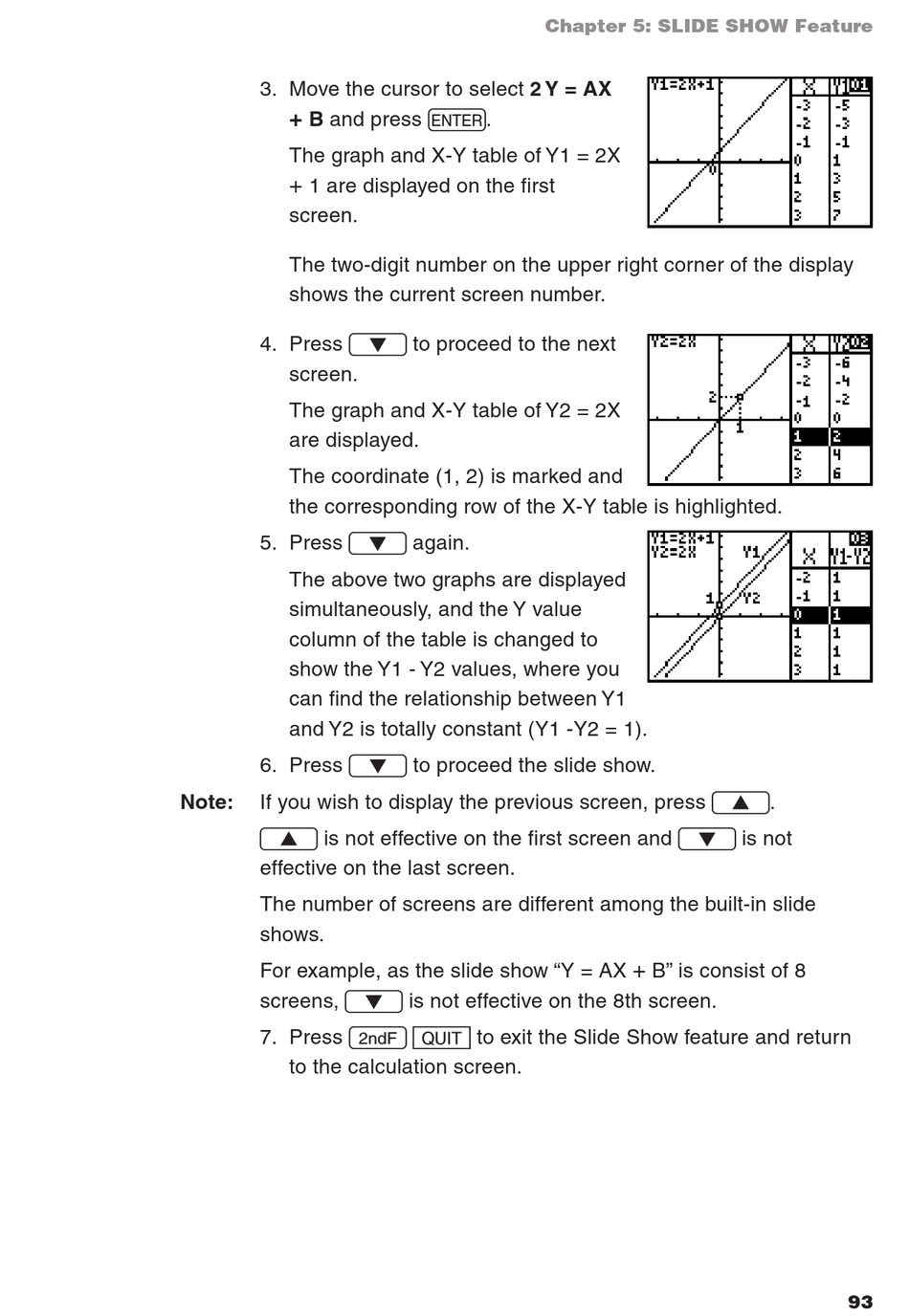

3. Move the cursor to select 2 Y = AX
B and press E.
+
The graph and X-Y table of Y1 = 2X
+
1 are displayed on the first
screen.
The two-digit number on the upper right corner of the display
shows the current screen number.
4. Press } to proceed to the next
screen.
The graph and X-Y table of Y2 = 2X
are displayed.
The coordinate (1, 2) is marked and
the corresponding row of the X-Y table is highlighted.
5. Press } again.
The above two graphs are displayed
simultaneously, and the Y value
column of the table is changed to
show the Y1 - Y2 values, where you
can find the relationship between Y1
and Y2 is totally constant (Y1 -Y2 = 1).
6. Press } to proceed the slide show.
If you wish to display the previous screen, press {.
Note:
{ is not effective on the first screen and } is not
effective on the last screen.
The number of screens are different among the built-in slide
shows.
For example, as the slide show "Y = AX
screens, } is not effective on the 8th screen.
7. Press @ q to exit the Slide Show feature and return
to the calculation screen.
Chapter 5: SLIDE SHOW Feature
+
B" is consist of 8
93
