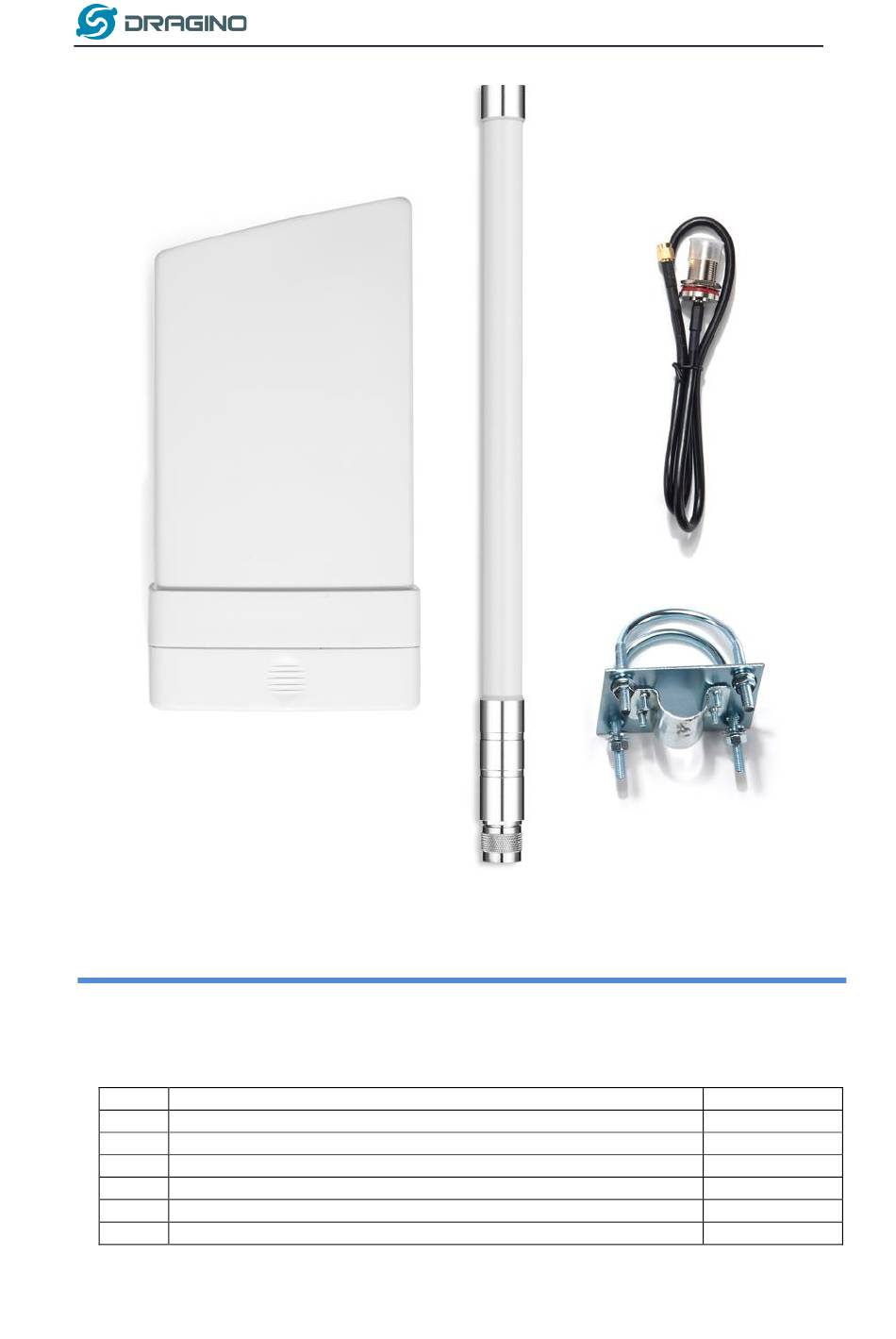

- Page 1 HP0D Full Hotspot for Helium User Manual Document Version: 1.1 Version Description Date Release 2022-Apr-8 Add trouble shootings 2022-Apr-24 1 / 24 HP0D LoRaWAN Gateway User Manual...
-
Page 2: Table Of Contents
Connect via Ethernet Port....................8 Generate QR Code ........................9 Onboarding Hotspot ......................... 10 Set the Port Forwarding ......................13 Check the configuration of HP0D .................... 14 LoRa frequency configuration ....................14 Check the LoRaWAN serveraddress..................14 Check Miner configuration ....................... 15 Installation of Antenna ...................... - Page 3 Why the frequency/region is not the same what I purchased? ........... 21 6.12 Can I use the frequency to a region where is not support? ..........21 6.13 Can I change the frequency of the HP0D Miner? ..............21 Supports ..........................22 Order Info ..........................23 Manufacturer Info........................23 FCC Warning ...........................
-

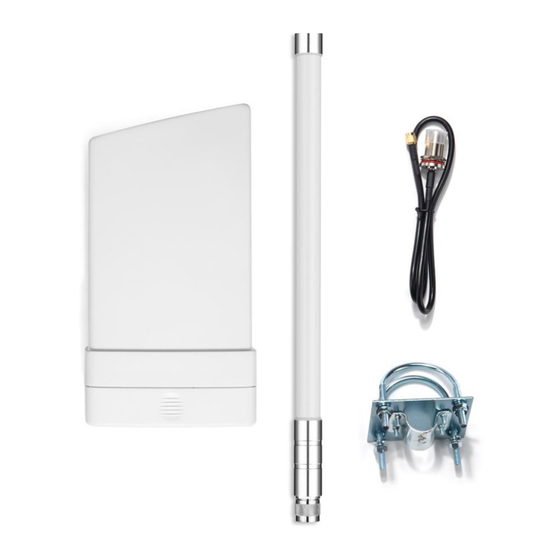

Page 4: Introduction
Dragino already paid HP0D $40 onboarding cost and $10 location cost for each HP0D. It is ready to use for Helium, user only needs to input HNT wallet address and use QR Code to onboarding HP0D when it arrives. -
Page 5: Features
✓ 802.3af PoE ✓ Lighting Protection ✓ Remote Monitoring ✓ Support Helium LoRaWAN server and secondary LoRaWAN server ✓ Include prepaid $40 onboarding cost and $10 location cost. ✓ Remote.it remote management. 5 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 6: Label Info And Login Name
Miner animal name: xxx-xxx-xxx Miner address: 112xxxxxx Eth MAC address: A8: 40: 41: EF: FE: CD Login: root/d59f2d5b (the root is the Login account for the Web-UI and SSH.) device serial number. 6 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 7: Quick Start & Onboarding
2 Quick Start & Onboarding The HP0D is configured as a Wi-Fi Access Point by factory default. You can access and configure the HPD after connecting to its Wi-Fi network, or via its WAN Ethernet port. 2.1 Connect HP0D Web UI 2.1.1 via HP0D’s Access Point. -
Page 8: Connect Via Hp0D Hostname
2.1.2 Connect via HP0D hostname Connect the HP0D Ethernet port to your router and HP0D will obtain an IP address. If your PC(Windows/Mac/Ubuntu) connect the same network with the HP0D, you can access the HP0D Web-UI via HP0D’s hostname. -
Page 9: Generate Qr Code
2.2 Generate QR Code Go to Miner --> QR Generate, input your Helium Wallet Address, and click Generate. Note: After onboarding, this wallet will become owner of this hotspot. 9 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 10: Onboarding Hotspot
Note: the APP version need to be greater than 3.11. 2. To add a hotspot, select “Hotspot”. On this tab, click the ‘+ Add Hotspot’ in the mid where choose the ‘DRAGINO Miner HP0D’ 3. Scan the QR Code you generated in the previous step. - Page 11 4. Onboarding your device Mobile APP will get info from onboarding server. If MAC address doesn’t appear, it means the network connection of mobile to onboarding server might have issue. 11 / 24 HP0D LoRaWAN Gateway User Manual...
- Page 12 5. Check onboarding status You can check from mobile: You can also see the hotspot status in below link: https://explorer.helium.com/hotspots/<YOUR_HOTSPORT_KEY> Example: Green Synced means hotspot works normal. 12 / 24 HP0D LoRaWAN Gateway User Manual...
-
Page 13: Set The Port Forwarding
Other times it may be because of a router configuration or the internet is offline. This article aims to help resolve any issues you may have. Note: Please refer to more detailed Settings https://docs.helium.com/troubleshooting/network-troubleshooting/ https://www.youtube.com/watch?v=GKusVC7ovrE 13 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 14: Check The Configuration Of Hp0D
3 Check the configuration of HP0D 3.1 LoRa frequency configuration 3.2 Check the LoRaWAN serveraddress. 14 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 15: Check Miner Configuration
3.3 Check Miner configuration Note: Check the Region and Height, the default height is greater than 1, if it is 1 please Click the mid button of Update, and then wait 10mins to check here, 15 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 16: Installation Of Antenna
4 Installation of Antenna HP0D use Fiber Glass Antenna. User need to connect antenna cable’s SMA connector to the HP03 and connect N-Type connector to antenna and install as below: 16 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 17: Ssh Access For Linux Console
5 SSH Access for Linux console IP address: IP address of HP0D or hostname of HP0D (Such as dragino-63920a) Port: User Name: root Randomly generated （found on device’s label ） Password: After logging in, you will be in the Linux console and can enter commands as shown below. -
Page 18: Trouble Shootings
Helium server. 6.3 Onboarding -- Some parameters in miner page show timeout HP0D is establish connection to Helium server and not finished. And you might see above. It might relate to the network where might up to 10mins 18 / 24... -
Page 19: Onboarding - Bad Gaterway
'1 1', the QR code generation may fail 6.6 Onboarding -- Why is the QR Code not quite the same as the manual? 19 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 20: Onboarding - Mac Address Is 'Unknown' After Scan Qr Code
After scan QR Code, Mobile APP will connect Helium onboarding server and provide the public key/ wallet address to onboarding server. Server will return the match MAC address for this hotspot. If you don’t see MAC address, make sure your mobile has good internet connection. 20 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 21: Hp0D Web --> Miner --> Version Shows 'Short
6.11 Why the frequency/region is not the same what I purchased? Each HP0D is inspected and configured prior to shipping. If your HP0D Web-UI – Miner region is not the same with the shell labels, please contact our support team that will solve this issue for you. -
Page 22: Supports
7 Supports If you are experiencing issues and can’t solve, you can send mail to support@dragino.com With your question as detail as possible. We will reply and help you in the shortest. 22 / 24 HP0D LoRaWAN Gateway User Manual... -
Page 23: Order Info
868: For Bands: EU868,IN865 • 915: For Bands: US915,AU915,AS923,KR920 9 Manufacturer Info Shenzhen Dragino Technology Development co. LTD Room 202, Block B, BCT Incubation Bases (BaoChengTai), No.8 CaiYunRoad LongCheng Street, LongGang District ; Shenzhen 518116,China 10 FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 24 The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 24 / 24 HP0D LoRaWAN Gateway User Manual...
