- Page 1 KMC5 Media Center KMC5 Owner’s Manual | English Manual del Propietario | Español KMC5 Receptor Multi-Media Benutzerhandbuch | Deutsch KMC5 Multi-Media-Receiver Manuel d’utilisation | Française KMC5 Multi-Media Receiver...
- Page 2 The Load Equivalency Number (LEN) indicates the amount of current a device draws from the NMEA 2000 network. Each device should have an LEN specifi ed on the product or in the product documentation. KMC5 NMEA 2000 Load Equivalency Number (LEN): 1 (50mA) Caution! Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 3 mounting hole cutout template: 3 inches, 76.2 mm gabarit de montage trou découpé: 3 pouces, 76,2 mm plantilla de recorte del agujero de montaje: 3 pulgadas, 76.2 mm montageloch ausschnittschablone : 3 Zoll, 76,2 mm 3 inches, 76.2 mm 3 pouces, 76,2 mm 3 pulgadas, 76.2 mm 3 Zoll, 76,2 mm...
- Page 4 mounting hole cutout template: 3 inches, 76.2 mm gabarit de montage trou découpé: 3 pouces, 76,2 mm plantilla de recorte del agujero de montaje: 3 pulgadas, 76.2 mm montageloch ausschnittschablone : 3 Zoll, 76,2 mm 3 inches, 76.2 mm 3 pouces, 76,2 mm 3 pulgadas, 76.2 mm 3 Zoll, 76,2 mm...
-
Page 5: Table Of Contents
KMC5 OWNER’S MANUAL Contents Contentido Specs Especifi caciones Overview Descripción general Installation Instalación Operation Funcionamiento Troubleshooting Resolución de problemas Warranty Garantía Contentu Inhalt Spécifi cations Technische Daten Généralités Übersicht Installation Installation Utilisation Betrieb Dépannage Fehlersuche Garantie Garantie... - Page 6 Pre-Amp Outputs Front, Rear, Sub, Zone2 Input Sensitivity Adjustable 500mV–1.5V With a KICKER KXM amplifi er, a pair of KICKER KM USB Playback MP3/WMA/FLAC/WAV speakers, and a few KICKER cables, you’re looking at a full USB Charging DC 5V, 1A system upgrade that will dominate! KICKER amplifi...
-
Page 7: Overview

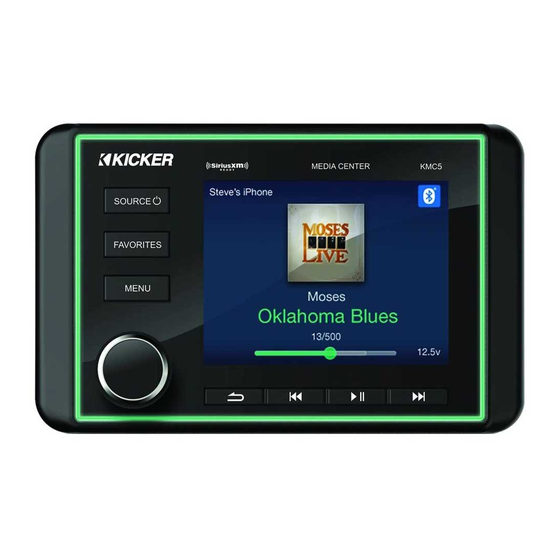

OVERVIEW If the battery voltage is low (<+10.5V), an on-screen warning will appear. Recharge battery and avoid becoming stuck or marooned. •power on/off (long press) •change input source (short press) SOURCE •save/select favorite presets FAVORITES •digital display •enter audio menu (short press) MENU •enter main menu (long press) •change volume/value/selection... -
Page 8: Installation
INSTALLATION Remember to cap unused wires and avoid electrical shorts! reverse camera/ front RCA out (grey) video input AUX input rear RCA out (black) (green) digital sub RCA out remote (red) USB input zone 2 RCA out USB charging (purple) antenna reverse trigger remote... - Page 9 fuse Zone 2 Output RGB Input Main harness fuse: 20A ATC +12V (switched) ground +12V ≤7” 18cm ground fuse remote Z2 right Z2 left auto-turn battery (brown) (pink) dimmer (leave on output disconnected if no ground dimmer circuit present) positive rear right rear left front right...
- Page 10 Remove adhesive from rear gasket and apply to the back of the KMC5. Securely fasten the KMC5 to the mounting surface using the including screws. Attach the snap-on trim ring to the front of the KMC5.
-
Page 11: Operation
USB device is connected and detected. KICKER recommends SANDISK drives for the best performance. Drives must be formatted in FAT32 fi le system. USB hubs are not compatible. High-bit rate fi les (320kbps) may experience errors. In testing, the KMC5 has been shown to work with some HDD’s and other fi... - Page 12 fi les. The camera and video input may be used to connect an external camera or video source to the KMC5. The reverse trigger wire (+12v) will automatically activate the camera when the vehicle is placed in reverse. To manually activate/deactivate the video input, press and hold the FAVORITES button.
- Page 13 When the KMC5 detects that the SiriusXM Connect Tuner has received activation, it will display “Subscription Updated”. The activation process can take up to an hour to complete. The KMC5 must be powered on and receiving the SiriusXM signal to receive the activation...
-
Page 14: Troubleshooting
Parental Controls - remove access to some channels Information - displays SiriusXM Radio ID Reset - reset the KMC5’s SiriusXM settings to factory defaults. When choosing to enable Parental Controls for the fi rst time, you will be prompted to enter a 4-digit passcode. (default is 0000) - Page 15 Control feature and how to access locked channels. Default Passcode is 0000. If your KMC5 does not appear to be working, check the obvious things fi rst such as blown fuses, poor or incorrect wiring connections etc. If you’re using an amplifi...
-
Page 16: Warranty
Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confi rm that a dealer is authorized by asking to see a current authorized dealer window decal. -
Page 17: Garantie
Sea precavido cuando controle el volumen. La frase “combustible para vivir la vida Livin’ Loud™ a todo volumen” se refi ere al entusiasmo por la vida que la marca Kicker de estéreos de automóvil representa y a la recomendación a nuestros clientes de que vivan lo mejor posible (“a todo volumen”) en todo sentido. - Page 18 ©2020 Stillwater Designs...
