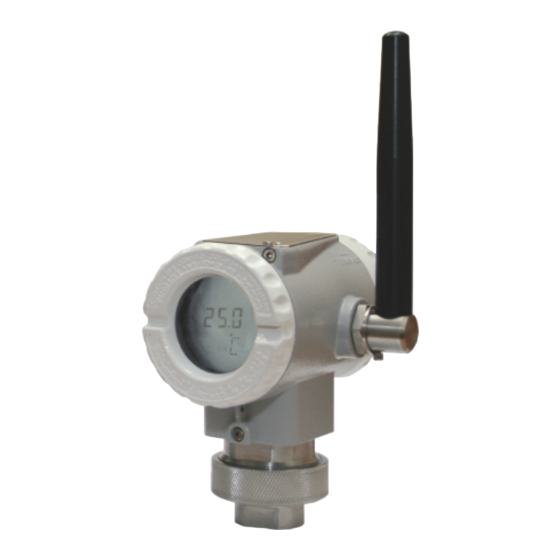

Temperature transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT400WH and is the answer not in the manual?

Questions and answers

Related Manuals for SMAR TT400WH

Summary of Contents for SMAR TT400WH

  • Page 3 Smar provides specific training to instruct and qualify such professionals. However, each country must comply with the local safety procedures,...
  • Page 4 TT400 WirelessHART – Operation, Maintenance and Instruction Manual...

  • Page 5: Table Of Contents

    Table of Contents TABLE OF CONTENTS INTRODUCTION ............................VII INSTALLATION FLOWCHART ....................... XIII SECTION 1 - INSTALLATION ........................1.1 GENERAL................................... 1.1 MOUNTING ................................1.1 ELECTRIC WIRING ..............................1.2 INSTALLATION IN HAZARDOUS LOCATIONS ......................1.6 INTRINSICALLY SAFE .............................. 1.6 SECTION 2 - OPERATION ........................
  • Page 6 TT400 WirelessHART – Operation, Maintenance and Instruction Manual...

  • Page 7: Introduction

    Introduction INTRODUCTION WirelessHART technology overview The WirelessHART technology is based on a wireless mesh network communication protocol used in process automation applications. It adds wireless capabilities to the HART protocol, while maintaining compatibility with existing HART devices, commands and already known and used tools.
  • Page 8 TT400 WirelessHART – Operation, Maintenance and Instruction Manual the network that requested services to it, as well as manages the routes between the devices on the mesh network. Specifically, about the joining process of a WirelessHART device to the network, the Network Manager validates the Network ID and the Join Key attributes which are configured in the WirelessHART Gateway and WirelessHART devices.
  • Page 9 Introduction and determine one or more process units in the plant. For each process unit, allocate a gateway with unique and specific Network ID. Outline the main field devices. Identify potential sources of interference Are there radio communications or other wireless networks in the plant? What protocols and frequencies do they use? Use high power? Although unlikely, given the robustness of the radios used by the WirelessHART technology, prior knowledge of the answers to these questions may identify potential sources of interference and to indicate the taking of preventive and/or limiting...
  • Page 10 TT400 WirelessHART – Operation, Maintenance and Instruction Manual o Place the repeaters as needed. Installation As mentioned before, WirelessHART devices should be connected to the process and configured the same way as conventional wired HART devices. Handheld terminals can be used normally. Just be sure of having it properly uploaded with the latest DD files of the devices.
  • Page 11 Introduction o Make sure that the gateway is integrated to the host system as planned. Commissioning The commissioning of devices and gateway must be considered WirelessHART devices commissioning a) Ensure that the gateway is installed and powered; b) Install each device individually. Start with those closest to the gateway, i.e., those that will be within the coverage area of the gateway;...
  • Page 12 TT400 WirelessHART – Operation, Maintenance and Instruction Manual...

  • Page 13: Installation Flowchart

    Installation Flowchart Installation Flowchart Start Was the transmitter configured on the bench Check the area classification and to match the application? if the transmitter can be energized. Iinstall the transmitter preferably Configure the sensor type on weather - protected areas. (Section 3).
  • Page 14 TT400 WirelessHART – Operation, Maintenance and Instruction Manual...

  • Page 15: Section 1 - Installation

    Section 1 INSTALLATION General The overall accuracy of temperature and other measurements depends on several variables. Although the transmitter has an outstanding performance, proper installation is essential, in order to maximize its performance. Among all factors, which may affect transmitter accuracy, environmental conditions are the most difficult to control.
  • Page 16 TT400 WirelessHART ® - Operation, Maintenance and Instruction Manual Figure 1.1 - Dimensional Drawing and Mounting Positions WARNING The TT400 WirelessHART should be installed with the antenna positioned upward. Do not rotate the antenna, because the cable may break.
  • Page 17 Installation minimum 0.5 m minimum 1.5 m Notes: 1- Vertical obstacle 2- Floor 3- Minimum 3 neighbour equipment 4- Advised 5 neighboring transmitters Figure 1.2 – Wiring Diagram for Wireless Transmitter Battery Module Connection COVER LOCK COVER SCREW LOCK SCREW NECK EXTERNAL LOCK...
  • Page 18 TT400 WirelessHART ® - Operation, Maintenance and Instruction Manual The equipment comes from the factory with the Battery Module turned off, for safety reasons and shipping regulations. To turn it on using the front switch, it is necessary to previously connect the Battery Module connector to the radio board, located on the back of the equipment (Figure 1.4).
  • Page 19 Installation Figure 1.6 - Wiring Diagram The sensor should be connected as per Figure 1.7. WARNING When operating with two sensors, the sensors cannot be both grounded. At least one must be not grounded for proper operation of TT400 WirelessHART ®...

  • Page 20: Installation In Hazardous Locations

    The instrument modification or parts replacement supplied by other than authorized representative of Smar is prohibited and will void the certification. The transmitters are marked with options of the protection type. The certification is valid only when the protection type is indicated by the user.

  • Page 21: Operation

    Section 2 OPERATION The TT400 WirelessHART accepts signals from mV generators such as thermocouples or resistive sensors such as RTDs. The criterium is that the signal is within the range of the input. For mV, the range is -50 to 500 mV and for resistance, 0 to 2000 Ohm. Functional Description-Hardware Refer to the block diagram (Figure 2.1).

  • Page 22: Temperature Sensors

    Each battery has 2.5 grams of lithium, totaling 5.0 grams Battery Module. WARNING By no means should be used other than the power supplied by batteries Module Smar (code 400- 1209). When you replace the Battery Module (code Smar 400-1209) to set up the replacement via a configurator that will cause the device to reboot count the estimated lifespan for the new module.

  • Page 23: Thermoresistances (Rtds)

    Operation The relation between the measuring junction temperature and the generated millivoltage is tabulated in thermocouple calibration tables for standardized thermocouple types, the reference temperature being 0 Standardized thermocouples which are commercially used, whose tables are stored in the memory of the TT400 WirelessHART , are the following: ...
  • Page 24 TT400 WirelessHART ® - Operation, Maintenance and Instructions Manual V2-V1 = [RTD + R] I – R I = RTD Figure 2.3 – Tree-Wire Connection In a 4-wire connection, terminals 2 and 3 are high impedance inputs. Thus, no current flows through those wires and no voltage drop is caused.

  • Page 25: The Display

    Operation The Display The digital indicator can display one or two variables which are user selectable. When two variables are chosen, the display will alternate between the two with an interval of 3 seconds. The display indicates engineering units, values and parameters simultaneously with most status indicators.

  • Page 26: Local Adjustment

    TT400 WirelessHART ® - Operation, Maintenance and Instructions Manual Local Adjustment For configuration via local adjustment to be possible: • The write protection jumper must be disabled; • Local adjustment jumper must be enabled. See Figure 1.4 for the positions of the Local Adjustment and Write Protection jumpers on the main electronic board.

  • Page 27: Writing Protection

    Operation Figure 2.9 – Local Adjustment Configuration Tree The DISP option changes the configuration of display mode. Four modes are supported: -OFF: display is always turned off. -ON: display is always turned on. -USER: display normally off but activated when user inserts the magnetic tool in (S). -BRST: display normally off but activated when the equipment sends a Burst command.
  • Page 28 TT400 WirelessHART ® - Operation, Maintenance and Instructions Manual...

  • Page 29: Section 3 - Maintenance

    All maintenance services must be carried out by a qualified person and the replacement of components (supplied by Smar) must only be carried out by qualified personnel. Diagnostics with the Display The display can show failure messages in the alphanumeric segment.

  • Page 30: Disassembly Procedure

    TT400 WirelessHART ® - Operation, Maintenance anda Instructions Manual Disassembly Procedure WARNING This operation type must be done in a safety area and with the transmitter no energized. Sensor If the sensor is mounted on the transmitter, first disconnect the wires to prevent them from breaking. To access the terminal block, first remove the sensor housing screw (27) and housing (26), removing it carefully.

  • Page 31: Reassembly Procedure

    Maintenance imaginary line 180° in relation to the base of the equipment. If there is a need to rotate the antenna, loosen the lower fixing screw and travel just above this line. See Figure 3.2 Figure 3.2 –Antenna Safety Rotate Electrical Circuits To remove the main board (6) and the display (4), it must remove the display cover (1) by turning it counterclockwise.
  • Page 32 TT400 WirelessHART ® - Operation, Maintenance anda Instructions Manual First, make mounting the antenna on the Tighten the antenna with a wrench. Use the side of the housing indicated by "FIELD wrench to how the picture is being TERMINALS." Always keep the antenna displayed, always below the antenna;...

  • Page 33: Interchangeability

    Returning Materials Should it become necessary to return the transmitter and/or configurator to SMAR, simply contact our office, informing the defective instrument serial number, and return it to our factory. To speed up analysis and solution of the problem, the defective item should be returned with the Service Request Form (SRF –...
  • Page 34 TT400 WirelessHART ® - Operation, Maintenance anda Instructions Manual Figure 3.1 – Exploded View...
  • Page 35 Maintenance ACCESSORIES ORDERING CODE DESCRIPTION SD-1 Magnetic tool for local adjustment. DEVCODROID The DevComDroid APP uses DDs to access data stored in memory and configure HART equipment. HI331 HART® Bluetooth Interface SPARE PARTS LIST FOR TRANSMITTER CATEGORY DESCRIPTION OF PARTS POSITION CODE (NOTE1)
  • Page 36 TT400 WirelessHART ® - Operation, Maintenance anda Instructions Manual...

  • Page 37: Section 4 - Technical Characteristics

    - Burst mode to 8s, @25 ºC, network with at least 3 neighbor devices: 6 years Battery Notes: The batteries module used in the transmitters must be provided exclusively by Smar (PACK BATTERY - Code 400-1209) and must be replaced in full when necessary. For specific battery composition details see Appendix B.
  • Page 38 TT400 WirelessHART – Operation, Maintenance, and Instructions Manual Transmitter Specifications AD with 50 and 60 Hz input noise rejection; Sensor Input Input Sensor trim in two points. Treatment Environment Temperature trim. Engineering unit conversion; Cold junction compensation; Primary Variable Input Sensor characterization (Callendar Van Dusen); Treatment Measured Type (single, differential, maximum, minimum, average).
  • Page 39 Technical Characteristics 2, 3, or 4 wires MINIMUM * DIGITAL SENSOR TYPE RANGE °C RANGE °F SPAN °C ACCURACY °C Cu10 ± 1.0 Ni120 Edison Curve #7 ± 0.1 to 1562 Pt50 IEC 751-83 (0.00385) -200 -328 ± 0.25 to 1562 Pt100 IEC 751-83 (0.00385) -200...

  • Page 40: Ordering Code

    TT400 WirelessHART – Operation, Maintenance, and Instructions Manual Ordering Code MODEL SMART TEMPERATURE TRANSMITTER TT400 COD. Communication Protocol WirelessHART COD. Security Option For use in measurement and control COD. Local Indicator (1) Without Indicator With Indicator Digital COD. Electrical Connection M20 X 1.5 (5) 1/2 –...
  • Page 41 Technical Characteristics **OPTIONAL HART CONFIGURATION (1) TT400 MAIN CODE OF HART TRANSMITTER (CONTINUATION) COD. Burn-out Start Scale (According NAMUR NE43 specifications) (Default) End Scale (According NAMUR NE43 specifications) COD. LCD1 Indication LCD1: Percentage (Default) LCD1: Current - I (mA) LCD1: Temperature (Engineering Unit) COD.
  • Page 42 TT400 WirelessHART – Operation, Maintenance, and Instructions Manual...
  • Page 43 Date: Signature: For warranty or non-warranty repair, please contact your representative. Further information about address and contacts can be found on https://www.smar.com/en/support NOTES (1) This field should be filled out by the Smar. (3) Required for Wireless HART ® devices.
  • Page 44 TT400 WirelessHART – Operation, Maintenance and Instructions Manual...

  • Page 45: Appendix B - Battery Safety Datasheet

    Appendix B BATTERY SAFETY DATASHEET Section 1 – Identification Manufacturer: Tadiran Model: TL-5920 US office address: 2001 Marcus Avenue, Suite 125E, Lake Success, NY 11040 Emergency Telephone: 1-800-424-9300 Information Telephone: 1-516-621-4980 Section 2 – Composition Ingredients Lithium Metal (Li) <5% Thionyl Chloride (SOCl2) <47% Carbon (C)
  • Page 46 TT400 WirelessHART – Instruction, Operation and Maintenance Manual Batteries may explode when exposed to: excessive heat (above 150 °C), recharged, discharged below 0V, punched and crushed. Hydrogen Chloride (HCl) and sulfur dioxide (SO ) can be formed during thermal decomposition of Cl Section 6 –...
