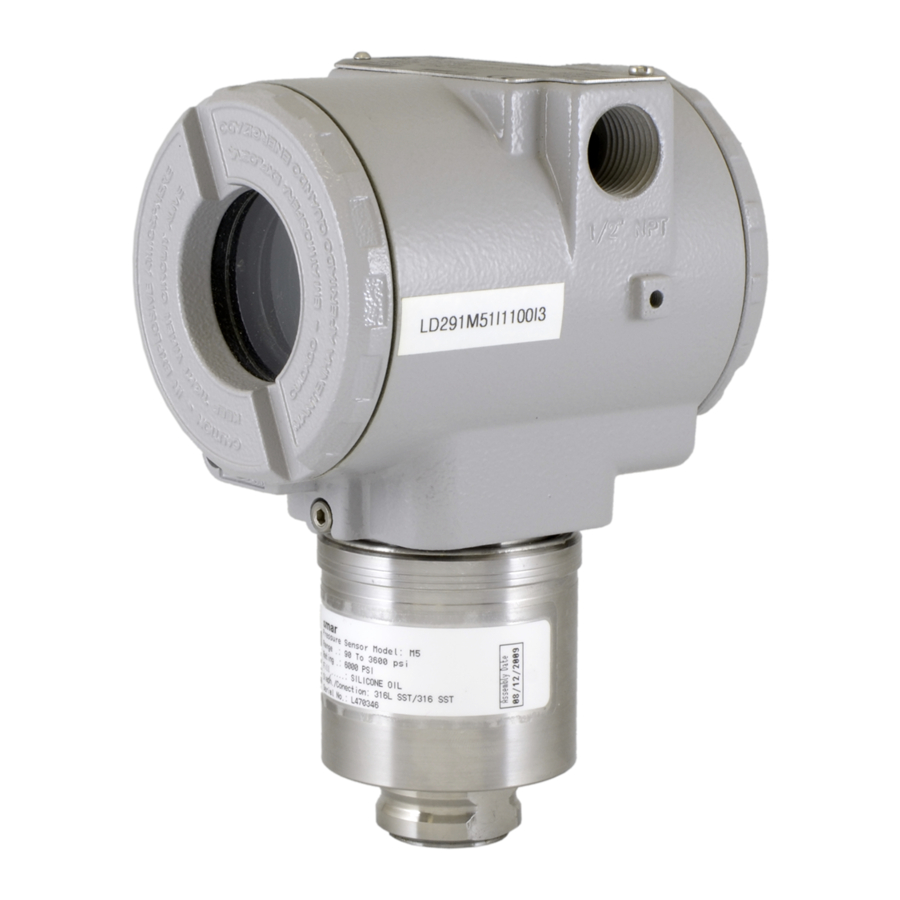

SMAR LD292 Operation, Maintenance & Instruction Manual

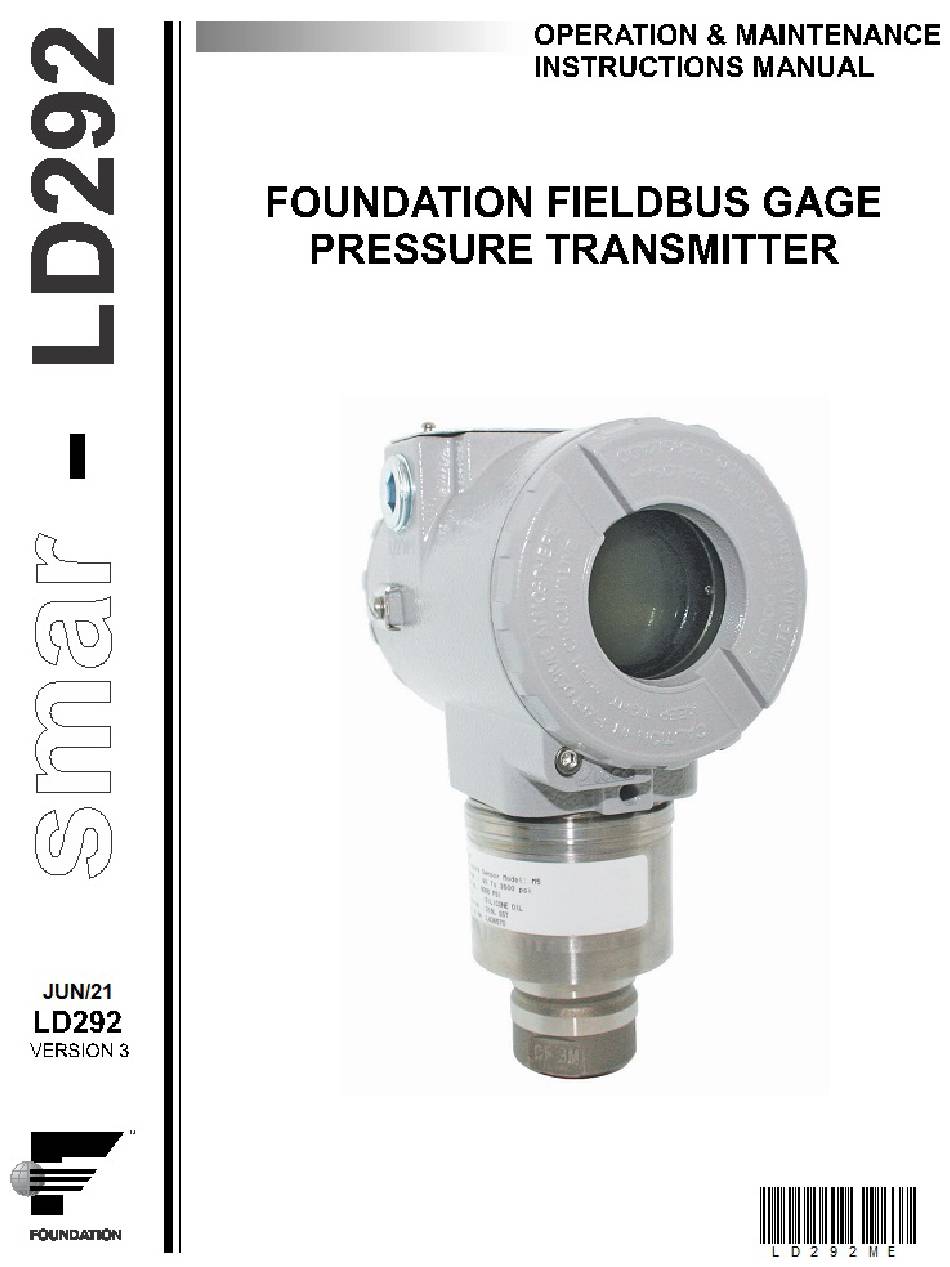

Foundation fieldbus gage presssure transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD292 and is the answer not in the manual?

Questions and answers

Related Manuals for SMAR LD292

Summary of Contents for SMAR LD292

  • Page 3 In order too be user friendly the function block concept was introduced. The LD292, like the rest of the 302 family, has some Function Blocks built in, like analog Input, PID controller, Input selector and Display Block.
  • Page 4 Smar provides specific training to instruct and qualify such professionals. However, each country must comply with the local safety procedures,...

  • Page 5: Table Of Contents

    SECTION 3 - CONFIGURATION ......................3.1 TRANSDUCER BLOCK ............................3.1 HOW TO CONFIGURE A TRANSDUCER BLOCK ..................... 3.5 LOWER AND UPPER TRIM ..........................3.5 PRESSURE TRIM - LD292 ..........................3.6 VIA LOCAL ADJUSTMENT ..........................3.8 CHARACTERIZATION TRIM ..........................3.9 SENSOR INFORMATION ..........................3.11 TEMPERATURE TRIM ............................
  • Page 6 LD292 - Operation and Maintenance Instruction Manual NORTH AMERICAN CERTIFICATIONS ......................... A.2 EUROPEAN CERTIFICATIONS ............................A.3 SOUTH AMERICAN CERTIFICATIONS .......................... A.4 ASIAN CERTIFICATIONS ............................... A.4 IDENTIFICATION PLATES AND CONTROL DRAWINGS .................. A.5 IDENTIFICATION PLATE ..............................A.5 CONTROL DRAWING ..............................A.9...
  • Page 7 Installation Flowchart Start Was the transmitter Install the transmitter on the field configured on the bench following the instructions below. to match the application? Install the transmitter preferably on weather- protected areas. Configure the transmitter (Section 1 and 3) Check the area classification and its practices Configure the engineering unit (Section 3 - Configuration)
  • Page 8 LD292 - Operation and Maintenance Instruction Manual VIII...

  • Page 9: Section 1 - Installation

    There are, however, ways of reducing the effects of temperature, humidity and vibration. The LD292 has a built-in temperature sensor to compensate for temperature variations. At the factory, each transmitter is submitted to a temperature cycle process, and the characteristics under different pressures and temperatures are recorded in the transmitter memory.
  • Page 10 LD292 - Operation and Maintenance Instruction Manual Figure 1.1 (a) - Dimensional Drawing and Mounting Position for LD292...
  • Page 11 Installation Figure 1.1 (b) - Dimensional Drawing and Mounting Position for LD292 – Sanitary...
  • Page 12 LD292 - Operation and Maintenance Instruction Manual Figure 1.1 (c) - Dimensional Drawing and Mounting Position for LD292 - Sanitary...
  • Page 13 Installation Figure 1.1 (d) - Dimensional Drawing and Mounting Position for LD292 – Level...
  • Page 14 VIEW BY ‘’A’’ Mobile adjusting flange Diaphragm protection with screen PROBE LENGTH (OPTIONAL) O’RING VIEW BY ‘’C’’ VIEW BY ‘’BB’’ - DIMENSIONS ARE IN mm (in) Figure 1.1 (e) - Dimensional Drawing and Mounting Position for LD292 – Level (Insertion)
  • Page 15 Process leaks could result in death or serious injury. Do not attempt to loosen or remove flange bolts while the transmitter is in service. Replacement equipment or spare parts not approved by Smar could reduce the pressure retaining capabilities of the transmitter and may render the instrument dangerous.

  • Page 16: Electronic Housing

    LD292 - Operation and Maintenance Instruction Manual LIQUID STEAM Figure 1.3 - Position of the Transmitter and Taps NOTE The transmitters are calibrated in the vertical position and a different mounting position displaces the zero point. Consequently, the indicator will indicate a different value from the applied pressure.

  • Page 17: Wiring

    1.5. The LD292 uses the 31.25 kbit/s voltage mode option for the physical signaling. All other devices on the same bus must use the same signaling. All devices are connected in parallel along the same pair of wires.

  • Page 18: Bus Topology And Network Configuration

    LD292 - Operation and Maintenance Instruction Manual The LD292 is powered via the bus. The limit for such devices is 16 for one bus for non-intrinsically safe requirement. The Figure 1.6 shows the correct installation of the conduit, in order to avoid penetration of water, or other substance, which may cause malfunctioning of the equipment.

  • Page 19: Intrinsic Safety Barrier

    Use of SB312LP DF47 is recommended. Jumper Configuration In order to work properly, the jumpers J1 and W1 located in the LD292 main board must be correctly configured (See Table 1.2). This jumper enables the simulation mode parameter in the AI block.

  • Page 20: Installation In Hazardous Areas

    In Explosion-Proof installations the cable entries must be connected or closed using metal cable gland and metal blanking plug, both with at least IP66 and Ex-d certification. The standard plugs provided by Smar are certified according to CEPEL certificate. If the plug needs to be replaced, a certified plug must be used.

  • Page 21: Section 2 - Operation

    Section 2 OPERATION The LD292 Series Pressure Transmitters use capacitive sensors (capacitive cells) as pressure sensing elements, as shown in Figure 2.1. This is exactly the same sensor as the LD291 series uses, the sensor modules are therefore interchangeable. Figure 2.1 - Capacitive Cell...

  • Page 22: Functional Description - Electronics

    LD292 - Operation and Maintenance Instruction Manual As the distance (d) between the fixed plates CH and CL is constant. It is possible to conclude that the expression (CL - CH)/(CL + CH) is proportional to d and, therefore, to the differential pressure to be measured.

  • Page 23: Display

    Operation Power Supply Takes power of the loop-line to power the transmitter circuitry. Power Isolation Isolates the signals to and from the input section, the power to the input section must be isolated. Display Controller Receives data from the CPU identifying which segments on the liquid crystal Display use to turn on. The controller drives the backplane and the segment control signals.
  • Page 24 LD292 - Operation and Maintenance Instruction Manual...

  • Page 25: Section 3 - Configuration

    CONFIGURATION One of the many advantages of Fieldbus is that device configuration is independent of the configurator. The LD292 may be configured by a third party terminal or operator console. Any particular configurator is therefore not addressed here. This section describes the characteristics of the blocks in the LD292. They follow the Fieldbus specifications, but in terms of transducer blocks, the input transducer block and display, they have some special features on top of this.
  • Page 26 LD292 - Operation and Maintenance Instruction Manual Rel. Param Mnemonic Description Index The location of last sensor calibration. This describes the physical location at which the SENSOR_CAL_LOC calibration was performed. SENSOR_CAL_DATE The date of the last sensor calibration. SENSOR_CAL_WHO The name of person who is in charge of last calibration.
  • Page 27 Configuration Rel. Param Mnemonic Description Index MAXIMUM_OFFSET_DEVIATION Defines the maximum offset before an alarm is generate MAXIMUM_GAIN_DEVIATION Defines the maximum gain before an alarm is generate OVERPRESSURE_LIMIT Defines the maximum overpressure limit before an alarm is generate MAXIMUM_NUMBER_OF_OVERPRESSURE Defines the maximum number of overpressure before an alarm is generate Initial/ Rel.
  • Page 28 LD292 - Operation and Maintenance Instruction Manual Initial/ Rel. Obj. Param Mnemonic Data Type Store Size Valid Range Units Class View Default Index Type Value DIFF Float none YDIFF Float none CAPACITANCE_LOW Float none CAPACITANCE_HIGH Float none BACKUP_RESTORE Unsigned8 none...

  • Page 29: How To Configure A Transducer Block

    The SYSCON configuration software can configure many parameters of the Input Transducer block. The device was instantiated as LD292 Here, are some blocks As you can see the instantiated.

  • Page 30: Pressure Trim - Ld292

    There are three types of trim available: Lower Trim: It is used to trim the reading at the lower range. The operator informs the LD292 the correct reading for the applied pressure. The most common discrepancy is the lower reading.
  • Page 31 Figure 3.3 - LD292 SYSCON - Transducer Configuration Screen Let’s take the upper value as an example: Apply to the input as the upper value a pressure of 5,080mmH O and wait until the readout of parameter PRIMARY_VALUE stabilizes.

  • Page 32: Via Local Adjustment

    Figure 3.4 - LD292 SYSCON - Transducer Configuration Screen WARNING It is recommendable that a convenient engineering unit be chosen by means of parameter XD_SCALE of the Analog Input Block, considering that the range limits of the sensor must be respected, these being 100% and 0%.

  • Page 33: Characterization Trim

    The Figure 3.5 - The Characterization Curve Configuration shows the window of SYSCON to characterize a new curve. Note that CURVE_X indicates the applied pressure according to standard pressure source and CURVEX_Y indicates measured pressure value to LD292. The number of points is configured in parameter CURVE_LENGTH, being in the maximum 5 points.
  • Page 34 LD292 - Operation and Maintenance Instruction Manual By the list box the This parameter user can enable activates or or disable the deactivates the Characterization Characterization Curve, enter the Curve after the points, restore or points have been backup the curve configured.

  • Page 35: Sensor Information

    Configuration Sensor Information The main information about the transmitter can be accessed selecting the Transducer block icon option as shown on the Figure 3.10 – Creating Transducers and Function Blocks. The sensor information will be displayed as shown below. The appropriate This parameter calibration unit can be assigns the E.U.

  • Page 36: Sensor Data Reading

    Sensor Data Reading All time that transmitter LD292 is on, is verified if the serial number of the sensor in the sensor board is the same that the recorded serial number in E2PROM in the main board. When these numbers are different (a swap of sensor set or main board was carried through) the data stored in the E2PROM of sensor board is copied to the E2PROM of the main board.

  • Page 37: Transducer Display - Configuration

    Series 302 field devices from SMAR has the same methodology to handle with it. So, since the user has learned once, he is capable to handle all kind of field devices from SMAR. All function block and transducers defined according Foundation Fieldbus have a description of their features written on binary files, by the Device Description Language.

  • Page 38: Definition Of Parameters And Values

    LD292 - Operation and Maintenance Instruction Manual This feature permits that third parties configurator enabled by Device Description Service technology can interpret these features and make them accessible to configure. The Function Blocks and Transducers of Series 302 have been defined rigorously according the Foundation Fieldbus specifications in order to be interoperable to other parties.
  • Page 39 Configuration Figure 3.11 - Parameters for Local Adjustment Configuration Figure 3.12 - Parameters for Local Adjustment Configuration Figure 3.13 - Parameters for Local Adjustment Configuration 3.15...

  • Page 40: Programming Using Local Adjustment

    "Programming Using Local Adjustment". It is significantly the resources on this transducer display, also all the Series 302 field devices from SMAR has the same methodology to handle with it. So, since the user has learned once, he is capable to handle all kind of field devices from SMAR.

  • Page 41: J1 Jumper Connections

    Configuration Figure 3.15 - Local Adjustment Holes Table 3.4 shows the actions on the Z and S holes on the IF303 when Local Adjustment is enabled. HOLE ACTION Inicializes and rotates through the available functions. Selects the function shown in the display. Table 3.4 - Purpose of the holes on the Housing J1 Jumper Connections If J1 (see figure 3.16) is connected to ON, then simulation mode in the AI block is enabled.
  • Page 42 LD292 - Operation and Maintenance Instruction Manual Place the In order to start the magnetic tool in local adjustment, place orifice S and wait the magnetic tool in during 5 seconds. orifice Z and wait until letters MD are displayed.
  • Page 43 In order to increment the value, keep the tool inserted in S up to set the value desired. Figure 3.20 - Step 4 - LD292 In order to range the In order to upper value(upper), decrement the upper...
  • Page 44 LD292 - Operation and Maintenance Instruction Manual 3.20...

  • Page 45: Section 4 - Maintenance Procedures

    Check if the shield is not used as a conductor. It should be grounded at one end only. * Power Supply Check power supply output. The voltage must be between 9 - 32 VDC at the LD292 terminals. Noise and ripple should be within the following limits: NO COMMUNICATION a) 16 mV peak to peak from 7.8 to 39 KHz.

  • Page 46: Disassembly Procedure

    LD292 - Operation and Maintenance Instruction Manual If the problem is not presented in the table above follow the Note below: NOTE The Factory Init should be tried as a last option to recover the equipment control when the equipment presents some problem related to the function blocks or the communication. This operation must only be carried out by authorized technical personnel and with the process offline, since the equipment will be configured with standard and factory data.

  • Page 47: Electronic Circuit

    Plug sensor connector and power supply connector to main board. Attach the display to the main board. Observe the four possible mounting positions. (Figure 4.2). The SMAR mark indicates up position. Figure 4.2 - Four Possible Positions of the Display Anchor the main board and display with their screws (3).

  • Page 48: Interchangeability

    The sensor and casing of the LD291 is exactly the same as the LD292. By changing the circuit board of the LD291 it becomes a LD292. The display on LD291 version 3.XX, is the same as on LD292 and can therefore be used with the LD292 upgrade circuit board. With a LD292 version three or earlier, that display can not be used.
  • Page 49 Maintenance Figure 4.3 – Exploded View ACCESSORIES ORDERING CODE DESCRIPTION Magnetic Tool for Local Adjustment Fieldbus/RS232 Interface SYSCON System Configurator PS302 Power Supply BT302 Terminator Process Control Interface...
  • Page 50 LD292 - Operation and Maintenance Instruction Manual SPARE PARTS LIST CATEGORY DESCRIPTION OF PARTS POSITION CODE (NOTE 1) HOUSING (NOTE 2) (NOTE 7) . Aluminum 1 and 13 204-0102 COVER WITHOUT WINDOW (INCLUDES O'RING) . 316 SS 1 and 13 204-0105 .

  • Page 51: Ordering Code For Housing

    Maintenance Ordering Code for Housing CODE DESCRIPTION 400-1314 - 2 HOUSING: LD292 Option Communication Protocol FOUNDATION Fieldbus Option Electrical Connection ½ NPT M20 X 1.5 PG13.5 Option Material Aluminium (IP/Type) 316 SST (IP/Type) Aluminium – for saline atmospheres (IPW/Type X)
  • Page 52 LD292 - Operation and Maintenance Instruction Manual 209-0241 SPARE PART NUMBER FOR SANITARY PRESSURE SENSOR CODE Type Range Limits Range Limits Min. Max. Unit Min. Max. Unit Sanitary 12.5 mbar 5.02 201.09 Sanitary 62.5 2500 mbar 25.13 1005,45 Sanitary 0.625 157.1...
  • Page 53 Maintenance 209-0241 SPARE PART NUMBER FOR FLANGED PRESSURE SENSOR Range Limits Range Limits COD. Type Min. Span Unit Min. Span Unit Min. Max. Min. Max. Level 1,25 -200 Note: The range can be extended up to 0.75 LRL and 1.2 URL with small degradation of Level -250 2,08...
  • Page 54 LD292 - Operation and Maintenance Instruction Manual 4.10...
  • Page 55 Certifications safety (FM, CSA, NEMKO, EXAM, CEPEL, NEPSI). Authorized representative in European Community Smar Gmbh-Rheingaustrasse 9-55545 Bad Kreuzanach PED Directive (97/23/EC) – Pressure Equipment Directive This product is in compliance with the directive and it was designed and manufactured in accordance with sound engineering practice using several standards from ANSI, ASTM, DIN and JIS.
  • Page 56 LD292 - Operation and Maintenance Instruction Manual WARNING It is described here only the maximum pressures of the materials referenced in each rule, it can not be manufactured on request. Temperatures above 150 ° C are not available in standard models.
  • Page 57 Technical Characteristics Maximum Temperature Allowed Material Pressure -29 to Group Class Maximum Pressure Allowed (bar) 15.9 15.3 13.3 11.2 10.5 41.4 34.8 31.4 29.2 27.5 26.1 25.5 25.1 55.2 53.4 46.4 41.9 38.9 36.6 34.8 33.4 AISI316L 82.7 69.6 62.8 58.3 54.9 52.1...
  • Page 58 Nonwetted Parts *The IP66W sealing test (immersion) was performed at 1 bar for 24 hours. For any other situation, please consult Smar. IP66W tested for 200h to according NBR 8094 / ASTM B 117 standard. Level Flange (LD290L) 316L SST, 304 SST and Plated Carbon Steel.

  • Page 59: Ordering Code

    Technical Characteristics Ordering Code MODEL GAGE PRESSURE TRANSMITTERS LD292M FOUNDATION fieldbus CODE Type Range Limits Min. Max. Unit Gage 12.5 mbar Gage -1000 2500 mbar Gage Gage CODE Diaphragm Material and Fill Fluid 316L SST - Silicone Oil 316L SST – Inert Fluorolube Oil (2) Hastelloy C276 - Silicone Oil (1) Hastelloy C276 –...
  • Page 60 LD292 - Operation and Maintenance Instruction Manual MODEL GAGE PRESSURE TRANSMITTER (CONTINUATION) COD. Housing Material (8) (9) Aluminium (IP/TYPE) 316 SST for saline atmosphere (IPW/TYPEX) (7) Copper Free Aluminium (IPW/TYPEX) (7) 316 SST (IP/TYPE) Aluminium for saline atmosphere (IPW/TYPEX) (7) COD.
  • Page 61 Technical Characteristics MODEL SANITARY PRESSURE TRANSMITTERS LD292S fieldbus OUNDATION CODE Type Range Limits Range Limits Min. Max. Unit Min. Max. Unit Sanitary 12.5 mbar 5.02 201.09 Sanitary 62.5 2500 mbar 25.13 1005,45 Sanitary 0.625 157.1 10054.5 Sanitary 6.25 55.15 90.65 799.89 CODE Diaphragm Material...
  • Page 62 LD292 - Operation and Maintenance Instruction Manual MODEL SANITARY PRESSURE TRANSMITTERS (CONTINUATION) COD. Housing Material (6) (7) Aluminium (IP/TYPE) 316 SST (IP/TYPE) COD. Identification Plate FM: XP, IS, NI, DI CEPEL: Ex-d, Ex-ia CSA: XP, IS, NI, DI Without Certification EXAM (DMT): Ex-ia;...
  • Page 63 Technical Characteristics MODEL LOW COST FLANGED PRESSURE TRANSMITTER fieldbus LD292L OUNDATION Range Limits Range Limits COD. Type Unit Unit Min. Max. Min. Max. Level 12.5 mbar 5.02 201.09 Level 62.5 2500 mbar 25.13 1005.45 Level 0.625 157.1 10054.5 Level 6.25 90.65 3625.94 COD.
  • Page 64 LD292 - Operation and Maintenance Instruction Manual MODEL LOW COST FLANGED PRESSURE TRANSMITTER (CONTINUATION) COD. Housing Material (10) (11) 316 SST for saline atmosphere (IPW/TYPEX) (9) Aluminium (IP/TYPE) 316 SST (IP/TYPE) Copper Free Aluminium (IPW/TYPEX) (9) Aluminium for saline atmosphere (IPW/TYPEX) (9) COD.
  • Page 65 Technical Characteristics MODEL PRESSURE TRANSMITTER WITH EXTENDED PROBE LD292I fieldbus OUNDATION COD. Type Range Limits Min. Max. Unit Level 12.5 mbar COD. Diaphragm Material and Fill Fluid 316L SST – Silicon Oil (1) COD. Local Indicator Without Indicator With Indicator COD.
  • Page 66 LD292 - Operation and Maintenance Instruction Manual MODEL PRESSURE TRANSMITTER WITH EXTENDED PROBE (CONTINUATION) COD. Housing Material (7) (8) 316 SST for saline atmosphere (IPW/TYPEX) (6) Aluminium (IP/TYPE) 316 SST (IP/TYPE) Copper Free Aluminium (IPW/TYPEX) (6) Aluminium for saline atmosphere (IPW/TYPEX) (6) COD.

  • Page 67: European Directive Information

    Consult www.Smar.com for the EC declarations of conformity and certificates. Authorized representative/importer located within the Community: Smar Europe BV De Oude Wereld 116 2408 TM Alphen aan den Rijn Netherlands ATEX Directive 2014/34//EU - "Equipment for explosive atmospheres” (applicable from 20 April 2016) The EC-Type Examination Certificate is released by DNV GL Presafe AS (CE2460) and DEKRA EXAM GmbH (CE0158).
  • Page 68 Maintenance and Repair The instrument modification or replaced parts supplied by any other supplier than authorized representative of Smar is prohibited and will void the Certification. Marking Label The instrument is marked with type of protection options. The certification is valid only when the type of protection is indicated by the user.
  • Page 69 Appendix A Special Conditions for Safe Use Repairs of the flameproof joints must be made in compliance with the structural specifications provided by the manufacturer. Repairs must not be made on the basis of values specified in tables 1 and 2 of EN/IEC 60079-1. The Essential Health and Safety Requirements are assured by compliance with: EN IEC 60079-0:2018 General Requirements EN 60079-1:2014 Flameproof Enclosures “d”...
  • Page 70 O número do certificado é finalizado pela letra "X" para indicar que para a versão do Transmissor de pressão, intrinsecamente seguro, modelos LD292, LD293, LD302 e LD303 equipado com invólucro fabricado em liga de alumínio, somente pode ser instalado em "Zona 0", se durante a instalação for excluído o risco de ocorrer impacto ou fricção entre o invólucro e peças de ferro/aço.
  • Page 71 Appendix A A marcação é executada conforme a Norma ABNT NBR IEC 60079-0:2020 e o Requisito de Avaliação da Conformidade de Equipamentos Elétricos para Atmosferas Explosivas nas Condições de Gases e Vapores Inflamáveis (RAC), e é fixada na superfície externa do equipamento, em local visível. Esta marcação é legível e durável, levando-se em conta possível corrosão química.
  • Page 72 LD292 - Certifications Information Identification Plates and Control Drawing FM Approvals (Factory Mutual) DNV GL Presafe A/S / DEKRA Testing and Certification GmbH...
  • Page 73 Appendix A CEPEL (Centro de Pesquisa de Energia Elétrica)
  • Page 74 LD292 - Certifications Information FM Approvals...
  • Page 75 (Please, describe the observed behavior, if it is repetitive, how it reproduces, etc.) OBSERVATIONS USER INFORMATION Company: Contact: Title: Section: Phone: Extension: E-mail: Date: Signature: For warranty or non-warranty repair, please contact your representative. Further information about address and contacts can be found on www.smar.com/contactus.asp.
  • Page 76 LD292 – Service Request Form...
