EVANT

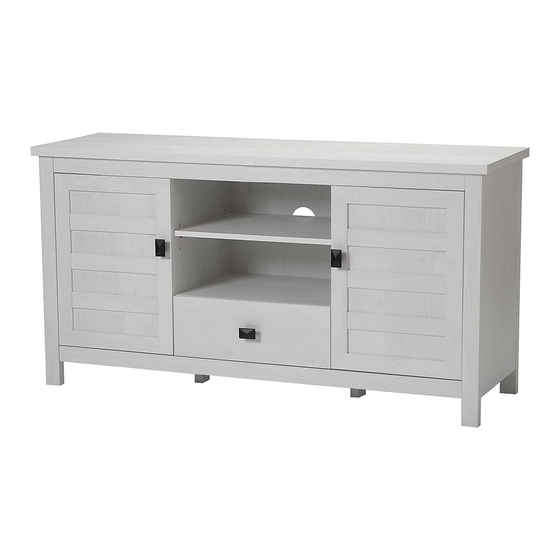

MEDIA CONSOLE
Item#: 64013
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
10112021
Advertisement
Table of Contents
Related Manuals for Balkene Home EVANT 64013
Summary of Contents for Balkene Home EVANT 64013
- Page 1 EVANT MEDIA CONSOLE Item#: 64013 ATTACH YOUR RECEIPT SAVE THESE INSTRUCTIONS Keep a copy of your proof of purchase FOR FUTURE REFERENCE. or order confirmation, which will be needed if you need to contact us about warranty coverage. Purchase date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: Call toll-free...
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the "Parts List." If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble this product. -
Page 3: Parts List
PARTS LIST DESCRIPTION DESCRIPTION DESCRIPTION PART PART PART Top Panel Cabinet Backer Drawer Front Left Side Cord Backer Left Drawer Side Right Side Bottom Panel Right Drawer Side Left Divider Top Face Frame Drawer Back Right Divider Bottom Backer Drawer Bottom Interior Shelf Front Left Leg Left Door... -
Page 4: Hardware Contents
HARDWARE CONTENTS Cam Bolt Cam Nut Dowel Shelf Bracket Screw 6x35mm 6x30mm 4x12mm Qty: 35 Qty: 35 Qty: 36 Qty: 12 Qty: 2 Screw Screw Drawer Runner Screw Hinge 4x35mm 4x45mm 3x12mm Qty: 18 Qty: 3 Qty: 2 Qty: 6 Qty: 4 Handle Screw Bolt... - Page 5 ASSEMBLY Install the Drawer Runners on the Left and Right Dividers BACK BACK FRONT FRONT Fully extend the runner to uncover the mounting holes. After attaching the runner to the panel, push runner back into the closed position. Fully extend one Runner and align the inner section along the 3 small holes on the Left Divider. Verify that the orientation of the Runner matches the diagram, then fasten the Runner to the Divider using 3 Screws positioned as shown.
- Page 6 ASSEMBLY Insert Cam Bolts into the indicated holes in the Bottom Face Frame . Use a Phillips-head screwdriver to tighten the threads fully into the panels. Hardware Required: Cam Bolt x3 Place Dowels in the 2nd and 4th holes on the edge of the Bottom Panel Insert the Cam Bolts previously installed in the...
- Page 7 ASSEMBLY Place Dowels in the 2 center-most holes in the bottom edges of both the Left and Right Dividers Insert the installed Dowels into the corresponding holes on the top of the Bottom Panel Secure the components together by inserting 4 Screws through the bottom of the Bottom Panel and into the Dividers.
- Page 8 ASSEMBLY Place D D owels in the holes between the previously- installed C C am m Nuts in each frame Leg g Insert the C C am m Bolts and D D owels in F F ront t Left t Leg into the edge of L L eft Side e adjacent to the H H inge e Mount t Blocks s...
- Page 9 ASSEMBLY Insert a total of 8 Cam Bolts into the indicated holes in the underside of the Top Panel Attach each Anchor Bracket near the back edge of the Top Panel using a Screw Hardware Required: Cam Bolt x8 Screw (4x12mm) x2 Anchor Bracket x2 Insert 10 Dowels in the top edges of the...
- Page 10 ASSEMBLY Carefully turn the unit to lay face- down. Position the Cabinet Backers to cover the back of the compartments at either end of the unit. Be sure to leave the Anchor Brackets exposed. Position the Cord Backer to cover the top center compartment.
- Page 11 ASSEMBLY Slide the Drawer Bottom into place in the groove in the drawer panels. Insert the Cam Bolts in the Drawer Front into the front edges of the Drawer Sides. Secure by inserting a Cam Nut into each of the adjoining holes on the outside of the Drawer Sides.
- Page 12 ASSEMBLY Choose the desired height to install each shelf. Insert the peg of each Shelf Bracket into the appropriate holes in the interior of each compartment of the unit, with the horizontal tab rotated to the top. Slide the Interior Shelves into place in the left and right compartments.
- Page 13 ASSEMBLY Hang the Doors by attaching the Hinges to the Hinge Mount Blocks as shown. Fasten each Hinge using 4 Screws Hardware Required: Screw (4x14mm) x16 If necessary for correct door alignment, it is possible to adjust the hinges. See diagrams below: Remove Vertical Forward/Back...
- Page 14 EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
