INSTALLATION and MAINTENANCE MANUAL
Mailbox Enslosure Kit
for versatile™ 4C mailbox suites

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Florence Vario depot and is the answer not in the manual?

Questions and answers

Summary of Contents for Gibraltar Industries Florence Vario depot

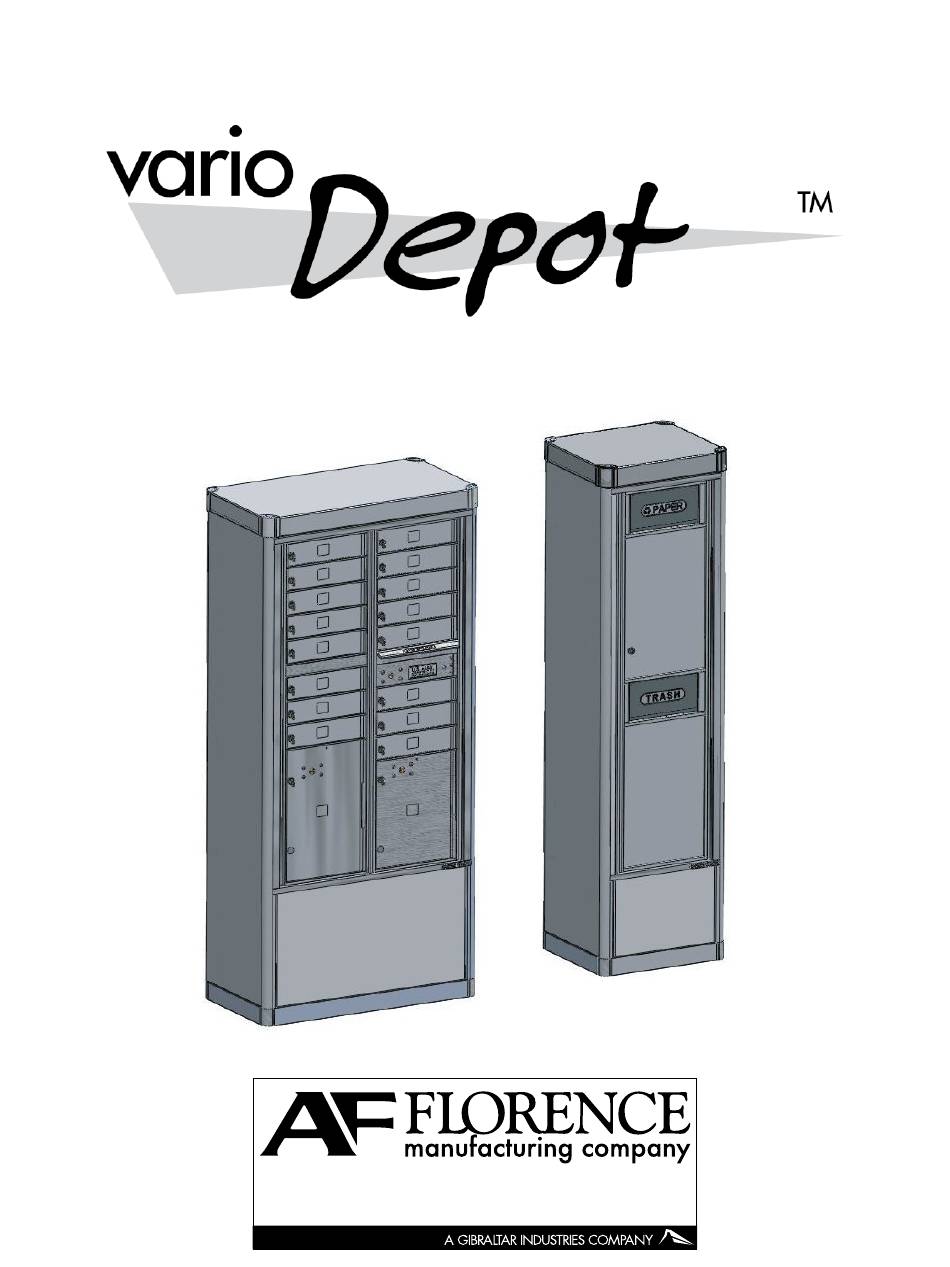

  • Page 1 INSTALLATION and MAINTENANCE MANUAL Mailbox Enslosure Kit for versatile™ 4C mailbox suites...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS ADVISORIES GET TO KNOW YOUR vario™ DEPOT HARDWARE LIST SUGGESTED TOOLS FOR INSTALLATION ANCHORING OPTIONS INSTALL [REPLACE] BASE FRAME LEVELING SUGGESTION (OUTDOOR INSTALLATION) INSTALL [REPLACE] SIDE PANELS INSTALL [REPLACE] TOP PANEL ADJUST vario™ DEPOT AND TIGHTEN HARDWARE INSTALL [REPLACE] FRONT PANEL INSTALL [REMOVE] versatile™...
  • Page 3: Get To Know Your Vario™ Depot

    GET TO KNOW YOUR vario™ DEPOT vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites Before the assembly process begins, please review the illustration below. The major components that you will be working with, and that are referred to in this instruction manual, are identified. This will help you to become familiar with the terms that are used as you are installing your vario™...
  • Page 4: Hardware List

    HARDWARE LIST vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites Hardware Kit (K65187) illustrated here is for identification purposes only. Not all hardware will be used in all applications. 48291 - #10-32 x 1/2” BHCS T20 Torx screw (45 included) 65734 - #8-18 x 1-1/4”...
  • Page 5: Anchoring Options

    ANCHORING OPTIONS vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites • Outdoor Installation Anchoring: To properly secure your vario™ Depot mailbox enclosure, we recommend the use of Hilti™ Kwik Bolt TZ anchors or similar anchoring systems. Locate where the base frame anchor holes are to be drilled using the foundation dimensions shown below.
  • Page 6: Install [Replace] Base Frame

    INSTALL [REPLACE] BASE FRAME vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites Place the base frame into the correct position. Drill holes in the concrete or subfloor while the base frame is in position. BASE FRAME Install the anchors. Anchors are NOT included with the vario™ Depot. Refer to anchor manufacturer installation instruction for proper installation.
  • Page 7: Leveling Suggestion (Outdoor Installation)

    LEVELING SUGGESTION (OUTDOOR INSTALLATION) vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites In the event the concrete pad is not level, the base frame may be adjusted. The hardware depicted is not provided with your vario™ Depot but is shown for illustration purposes. Install the hex nuts and flat washers on the anchors as shown.
  • Page 8: Install [Replace] Side Panels

    INSTALL [REPLACE] SIDE PANELS vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites Attach the left side panel (marked with a letter “L” on the top of the panel) to the base frame using 5/16-18 x 3/4” hex head cap screws (34423) and 5/16” split lock washers (34428).
  • Page 9: Install [Replace] Top Panel

    INSTALL [REPLACE] SIDE PANELS (CONT.) Attach the right panel to the back panel using #10-32 x 1/2” BHCS T20 Torx screws (48291) and 3/16” ID x 7/16” OD flat washers (30194), and to the base frame using 5/16- 18 x 3/4” hex head cap screws (34423) and 5/16” split lock washers (34428). Do not completely tighten hardware yet.
  • Page 10: Adjust Vario™ Depot And Tighten Hardware

    ADJUST vario™ DEPOT AND TIGHTEN HARDWARE vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites Ensure that all vario™ Depot components are plumb and square, and seams are aligned, and then tighten all hardware. Be careful not to strip the threads of the bolts and screws when tightening! Do not over tighten! Tighten hardware in the order listed below: 1).
  • Page 11: Install [Remove] Versatile™ 4C Mailboxes Or Accessory Modules

    INSTALL [REMOVE] versatile™ 4C MAILBOXES OR ACCESSORY MODULES vario™ Depot mailbox enclosure kit for versatile™ 4C mailbox suites The following steps are used to install your Florence versatile™ 4C module into the vario™ Depot mailbox enclosure. For more product detail, please refer to the installation instructions included with your Florence versatile™...
  • Page 12 REPLACEMENT PARTS / MAINTENANCE For a complete listing of all available replacement parts and/or maintenance procedures for the versatile™ 4C Mailbox Suites by Florence, please refer to the versatile™ 4C Mailbox Suites Maintenance Manual which may be downloaded from www.florencemailboxes.com/downloads. Service parts are available for purchase through an Authorized Florence Dealer and online at www.florencemailboxes.com/store.
