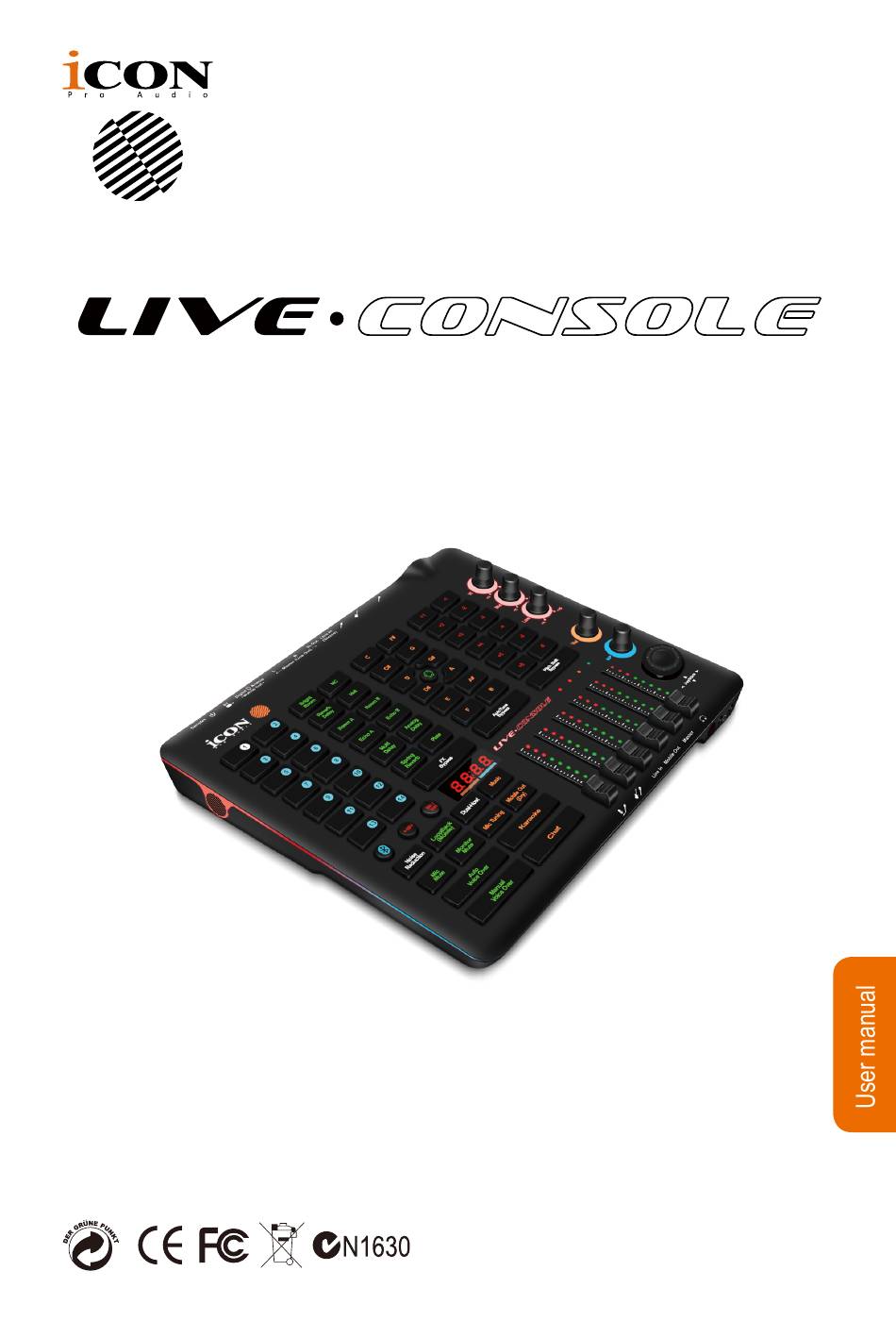

- Page 1 2 Mic/1-Instument in, 2 Line out recording USB Interface with DSP effects built-in for live streaming with Smartphones...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introduction ....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Top Panel....................8 Front Panel ....................12 Rear Panel....................13 Hardware Connections (with PC/Mac only) ..........14 Hardware Connections (with PC/Mac only) ..........15 Hardware Connections (Use as a standalone device) ......15 Minimum System Requirements.............16... -
Page 4: Introduction
Introduction Firstly, congratulations on your purchase of the ICON Pro Audio LiveConsole digital audio Interface! In these pages, you'll find a detailed description of the features of the LiveConsole digital audio Interface, as well as a guided tour through its front and rear panels, step-by-step instructions for their setup and use and a full list of specifications. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON LiveConsoleUSB recording interface provides an audio input and output module with USB connectivity for your PC or Smart Phone for instant live streaming capability. Themain features include: ● Unique and innovative built-in ICON DSP effects for outstanding audio quality ●... - Page 7 ● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 10 (64-bit) ● USB2.0 compatible and USB bus-powered ● Plug & play. No driver installation is needed.
-
Page 8: Top Panel
Top Panel 1. 14x24-bit DSP samplers/jingles 14 buttons are equipped to instantly trigger samples and jingles. The USB (micro) port is equipped to import your own audio files by connecting to your PC. 14 default samples are preloaded at the factory and they are as follows; Horrify a horrify sound effect sample a Oh My God sample... - Page 9 2. 12x Vocal & Instrument presets Individual control button for 8x Vocal & 4x Instrument DSP presets as well as a Bypass button are equipped; Reverb Delay Hall Room A Vocal DSP Room B presets Echo A Echo B Chrous Verb Stereo Chrou Multi Delay Instrument DSP...
- Page 10 8. Various function controls 1. Auto Voice Over - Voice over function will activate automatically when signal is detected from microphone inputs. 2. Manual Voice Over- Press and hold to activate the Voice Over function - release to de-activate it. 3.
- Page 11 11. Value & Speed encoder control knobs There are two encoder knobs for controlling the DSP effect parameters including Value (Orange) and Speed (Blue). Adjustments to the parameters from 0-99 can be viewed on the 4-digit display. 12. Joystick There is a joystick equipped for adjusting different values including: Y-axis - Adjusting the modulation speed.
-
Page 12: Front Panel
Front Panel 1. HP Output jacks 1/2 These output jacks accept a standard 3.5mm stereo TRS connector. 2. Infrared sensor Sensor for the infrared remote control (optional). Note: An optional device, “LiveRemote”, is available for triggering sound samples etc. remotely. This could be extremely useful when live streaming. Please contactyour nearest Icon dealer for product information. -
Page 13: Rear Panel
Rear Panel 1. Mic Input Ch. 1 There is an XLR connector for use with condenser microphones and a 6.35mm jack for connecting dynamic microphones. 2. Mic Input Ch. 2 There is a 6.35mm connector for connecting an instrument such as a guitar and a 3.5mm mono jack for connecting a dynamic microphone. -
Page 14: Hardware Connections (With Pc/Mac Only)
Hardware Connections (with PC/Mac only) 1. Connect the LiveConsole digital audio interface outputs to your amplifier, powered monitors or surround system. This operates as a two-channel stereo output. The default outputs are channels 1 and 2. 2. If monitoring through headphones, connect the headphones to the device’s headphone output. -
Page 15: Hardware Connections (With Pc/Mac Only)
Hardware Connections (with PC/Mac only) Mac / PC Mac / PC Hardware Connections (Use as a standalone Android device) Android... -
Page 16: Minimum System Requirements
Minimum System Requirements Important: The LiveConsole digital audio interface is supported by Mac OS (Intel-Mac / M1), Windows 7 (32-bit/64-bit) and Windows 10 (32-bit/64-bit). The LiveConsole digital audio interface is not supported by Windows 98 or Windows Me. For Windows XP, you must be running SP1 or later. -
Page 17: Specifications
Specifications Mic Input: Frequency Response: ........ 22Hz to 20kHz (+/-0.2dB) Dynamic Range: ......... 90dB, A-weighted Signal-to-Noise Ratio: ......... -90dB, A-weighted THD+N: ............<0.0061% (-86dB) Crosstalk: ............ -85dB @ 1kHz Input Impedance: ........Mic in: 1.8K Ohms, typical Adjustable Gain: ......... +39dB Inst Input: Frequency Response: ........ -
Page 18: Services
As soon as you have submitted an inquiry ticket, our support team will assist you to resolve the problem with your ICON ProAudio device as soon as possible. To send defective products for service: Ensure the problem is not related to operation error or external system devices. - Page 19 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店艾肯旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website www.iconproaudio.com support.iconproaudio.com iconproaudio.com/dashboard/...
