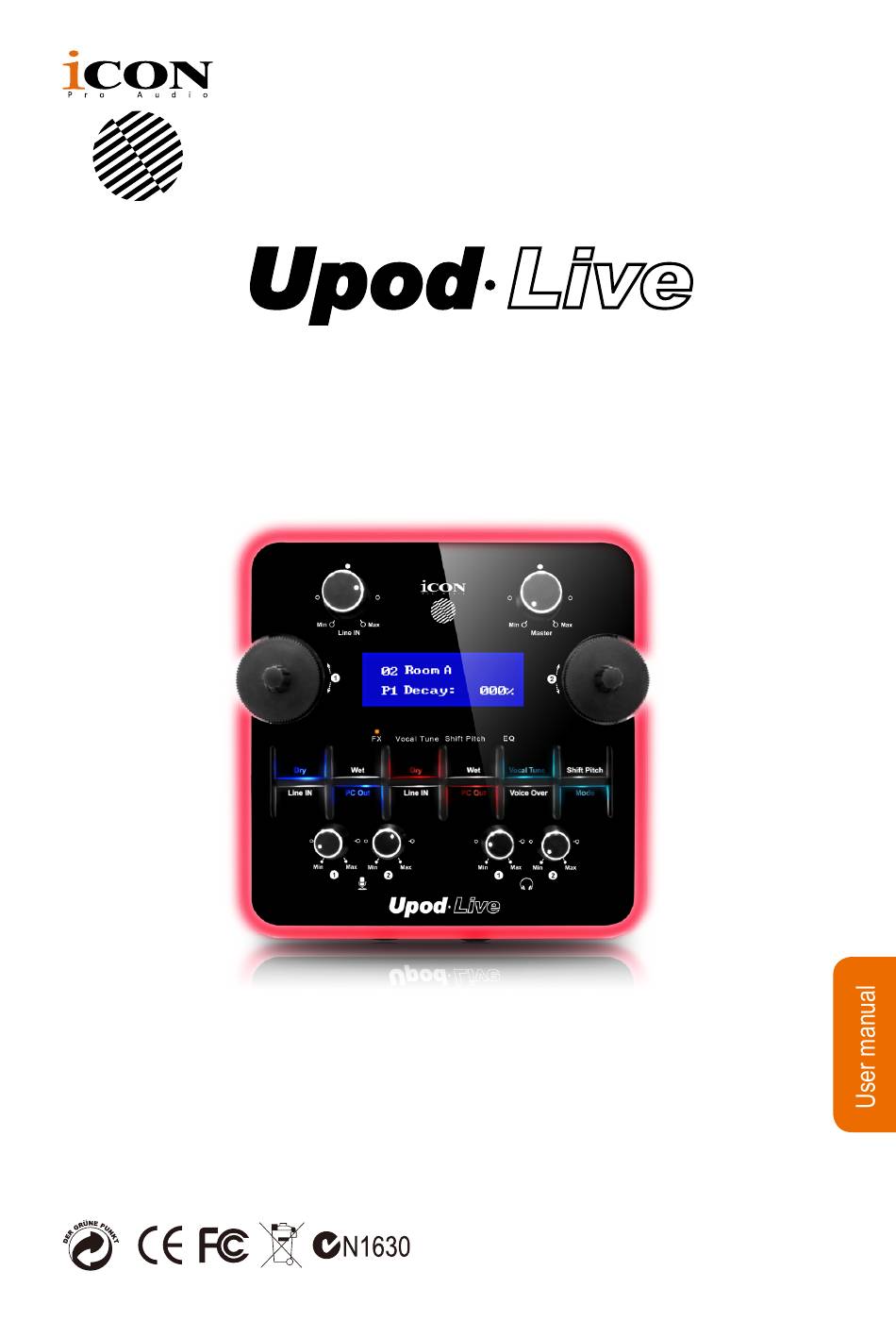

- Page 1 2 Mic/1-Instument in, 2 Line out recording USB Interface with DSP effect built-in for PC or Smart Phone...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introductions .....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Front/Top Panel ..................7 Rear Panel....................11 Controlling the DSP effects including FX/Vocal Tune/Pitch Shift/EQ with the two encoders ................12 Hardware Connections (with PC/Mac only) ..........14 Hardware Connections (Use as a standalone device) ......15... -
Page 4: Introductions
Introductions Thank you for purchasing the ICON ProAudio UpodLive digital audio Interface. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. In these pages, you'll find a detailed description of the features of the UpodLive digital audio interface, as well as a guided tour through its front and rear panels, step-by-step instructions for their setup and use, and full specifications. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON UpodLive USB recording interface provides an audio input and output module with USB connectivity for your PC or Smart Phone. Main features include: ● Smart device digital (type C) and analog (TRRS) connection jacks are both equipped ●... -
Page 7: Front/Top Panel
Front/Top Panel 1. “Mic”Inst 1/2 Unbalanced mic level inputs. These hybrid connectors will accept a standard 3-pin XLR plug or a 1/4” TS connector. Note: +48V phantom power will only be provided to XLR connector. 2. HI-Z input & gain control This is high impedance input for guitar/bass with individual gain control knob. - Page 8 9. Line in gain level control This potentiometer controls the input level of the Line-in inputs. 10. LCD backlit display The two-line backlit LCD display shows the parameter values as you adjust them and also provides feedback about channel selections, operating modes, and more.
- Page 9 14. LiveRemote sensor An optional device “LiveRemote” is available for triggering sound sampler remotely when you doing live streaming. Please contact our dealer nearest you for product information. 15. Mode button Press to switch & activate between different channel signal flow presets including: Allow you to self define your desired channel signal flow by P0 Custom activating the different buttons on “Recording/Live Streaming”...
- Page 10 16. Vocal Tune button Press to activate the “Vocal Tune” function. To adjust the settings, please refer to P12. 17. Pitch Shift button Press to activate the “Pitch Shift” function. To adjust the settings, please refer to P12. 18. Attenuator (Voice-Over) button Activating the attenuator (Voice-Over) function will allow the music signal from PC &...
-
Page 11: Rear Panel
Rear Panel 1. 3.5mm TRS input connectors These are unbalanced analog inputs on 3.5mm TRS connector at –10dB line level. 2. Line outputs 1/2 These are unbalanced analog outputs on standard 1/4″ TS connectors at +6dBU line level. 3. USB 2.0 compatible Connector (Type-C) Connect it with the provided USB cable to your Mac/PC’s USB connector. -
Page 12: With The Two Encoders
Controlling the DSP effects including FX/ Vocal Tune/Pitch Shift/EQ with the two encoders There are four main different types of DSP effects including FX, Vocal Tune, Pitch Shift and EQ. Press to switch between the four DSP setting manuals Left control knob and there are four LEDs under the LCD showing the (Press) current active DSP manual. -
Page 14: Hardware Connections (With Pc/Mac Only)
Hardware Connections (with PC/Mac only) Connect the UpodLive digital audio interface outputs to your amplifier, powered monitors or surround system. Two-channel stereo operation, the default outputs are channels 1 and 2. If you are monitoring through headphones, connect your headphones to the device’s headphone output. -
Page 15: Hardware Connections (Use As A Standalone Device)
Hardware Connections (Use as a standalone device) -
Page 16: Minimum System Requirements
Minimum System Requirements Important: The UpodLive digital audio interface is supported by Mac OS (Intel- Mac), Windows XP, Windows Vista, Windows 7 (32-bit/64-bit),and Windows 10 (32-bit/64-bit). The UpodLive digital audio interface is not supported by Windows 98 or Windows Me. For Windows XP, you must be running SP1 or later. Visit the Windows update web pages to make sure you have the most current updates and fixes supplied by Microsoft. -
Page 17: Specifications
Specifications Mic Input: Frequency Response ........22Hz to 20kHz (+/-0.2dB) Dynamic Range ..........90dB, A-weighted Signal-to-Noise Ratio........-90dB, A-weighted THD+N ............<0.0061% (-86dB) Crosstalk............-85dB @ 1kHz Input Impedance: Mic in ......... 1.8K Ohms, typical Adjustable Gain ..........+39dB Inst Input: Frequency Response ........ -
Page 18: Services
“Submit a ticket” without the need to sign in. As soon as you have submitted an enquiry ticket, our supporting team will assist you to resolve the problem with your ICON ProAudio device as soon as possible. To send defective products for service: Ensure the problem is not related to operation error or external system devices. - Page 19 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店iconproaudio旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website iconproaudio.com/dashboard/ www.iconproaudio.com support.iconproaudio.com...
