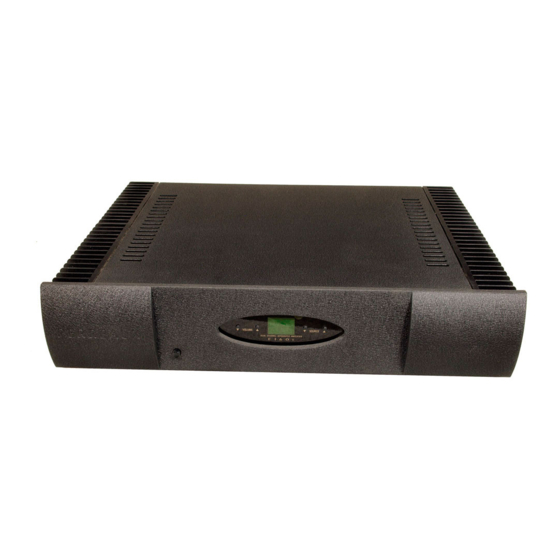

160W Stereo Integrated Amplifier
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E160i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perreaux E160i

Summary of Contents for Perreaux E160i

  • Page 1 E160i E160i E160i E160i 160W Stereo Integrated Amplifier Owners Manual...
  • Page 2 No licenses to patents or other intellectual property of Perreaux are granted by the Company in connection with the sale of Perreaux products, expressly or by implication.
  • Page 3 This page has intentionally been left blank.

  • Page 4: Introducing The Perreaux E160I Integrated Amplifier

    We maintain the human-link throughout, from design and construction, through to the ultimate test, your music, your system, your ears. Because we too listen to our products, we know that with your Perreaux you will discover many more of the musical secrets we strive to reveal.

  • Page 5: Important Safety Instructions

    The E160i should not be used near water, for example near a bathtub, kitchen sink, in a wet basement, near a swimming pool, etc. The E160i should be rack mounted only in a heavy-duty rack or stand that is recommended for audio equipment use.
  • Page 6 DO NOT attempt to repair the E160i. In the event of a problem, please contact your Perreaux dealer. DO NOT operate this product in an explosive atmosphere. Caution! The E160i is a convection-cooled amplifier. The finned outer heat sinks may become very hot when delivering high volume levels – to avoid...

  • Page 7: Table Of Contents

    Introducing the Perreaux E160i Integrated Amplifier ... 3 ii ii ii ii Important Safety Instructions... 4 iii iii iii iii Table of Contents... 6 1 1 1 1 Unpacking and Placement... 7 2 2 2 2 Instant Install ...

  • Page 8: Unpacking And Placement

    1 1 1 1 The E160i is packaged for maximum protection. Please carefully read the instructions below before proceeding to unpack the unit. Be extremely careful. Unpacking Inspect both ends of the cardboard box and open at the end without the Procedure central staple by slitting the reinforced tape at either side.
  • Page 9 Please do not mount the E160i directly onto carpeted surfaces. As a “rule of thumb”, allow 80-100mm (3-4 inches) around all sides of the product and mount the E160i on a flat surface, ensuring that the unit has adequate access to free flowing air.

  • Page 10: Instant Install

    After checking the supply voltage compatibility with the voltage rating on the E160i rear panel, insert the power cord-set supplied into the rear of the unit and into the wall. Switch on the socket at the wall and power up the E160i using the switch on the front panel.
  • Page 11 Increase the volume Slowly increase the volume control of the E160i to achieve a comfortable listening level. CONGRATULATIONS! Now that you have achieved your first objective, sit back, relax and please read the rest of the manual at your own pace, in your favourite armchair, whilst sipping a hot cup of coffee.

  • Page 12: Front Panel Functions

    Depress this switch to turn power ON. Mute relay circuitry is employed in the E160i so output is muted momentarily after the power switch is actuated. Depress the switch again to turn the unit off, at which time the outputs will be disconnected.

  • Page 13: Rear Panel Functions

    4 4 4 4 Caution! Please make all changes at minimum volume setting. Only increase the volume after the connections have been made. Accepts a standard single-ended input (RCA) from source components with single-ended analogue outputs. highly conductive, corrosion resistant, and provide less potential for corrosion induced distortion.
  • Page 14 Severe damage can result from applying incorrect voltage to the unit. Mains Fuse The E160i is equipped with a user serviceable AC mains fuse. In the event of fuse failure, always replace with the same type and value fuse. Remember, fuses do not usually blow without a reason.
  • Page 15 Input Voltage and Fuse Rating Input Voltage It is important that the E160i be operated from the correct AC mains voltage. This unit is factory set for the voltage applicable to the original country of destination.
  • Page 16 Serial Number The serial number is unique to your E160i. Please record this number and store it in a safe place. For any service related enquiry, please be prepared to quote the product serial number to Perreaux personnel or their service representative.

  • Page 17: Remote Control Functions

    Note: After one minute, the E160i will enter standby mode and volume will be set to zero. The display will revert to a green dot, indicating standby. The mute control has a ‘punch through’ function and will operate regardless of the code-set selected i.e.
  • Page 18 “Ld” on the display of the E160i. Direct Input Source Select Depressing this control selects the Direct Input source input, bypassing the preamplifier. The Direct Input is indicated by “dI” on the display of the E160i. Volume Up Depressing this button increases the volume.

  • Page 19: Special Design Philosophies

    Today’s Perreaux range comes closer to fulfilling our shared vision than at any other time in the past.
  • Page 20 “Form and function” are both tough masters. That is why our amplifier heat sinks are not hidden, but instead feature prominently in all our designs. We make no excuses for producing some of the most distinctive high-end audio products on the planet. We let “form and function” blend together in perfect harmony.

  • Page 21: Special Design Features

    Since power supply leads radiate at signal frequencies, all wiring is carefully loomed to minimise this effect. Hybrid Class The bi-polar transistors used in the E160i are run in Class A mode. This avoids A/AB the crossover notch distortion and the resulting odd-order harmonics present, to some degree, in all other classes of operation.
  • Page 22 Earth The toggle switch on the rear of the E160i allows the internal circuitry to be Isolation isolated from the mains earth, whilst still maintaining an earth connection to the Switch chassis. This ensures the potentially fatal practice of using an AC cord-set with no earth connection, to alleviate system hum, is not required.

  • Page 23: Maximising System Potential

    Bi-amping can achieve greater control, dynamics and resolution than if you try to run everything from a single stereo amplifier. Positioning Positioning of your source equipment (tuner, video, disc, tape, record, decks) is Ancillary important.
  • Page 24 Note: 160 Watts is twice as loud as 16 Watts, not ten times as loud. Perreaux equipment is designed with substantial headroom built in – that is, the reserve necessary to reproduce musical peaks without clipping. Final High fidelity systems are an investment deserving of careful thought and Thoughts personal time.

  • Page 25: The Power Mosfet

    9 9 9 9 Today with the vast number of technical achievements occurring around the world, many discoveries are overshadowed or obscured by some that may appear more important to the general media. One such discovery of importance, to the audiophile at least, is that of the power MOSFET device. The MOSFET The field effect transistor (FET) and then the MOSFET transistor have been around for a number of years, but only as a small signal-handling device, mostly...
  • Page 26 their much smaller size, no filaments and greater reliability with reduced vulnerability to physical damage. Audio When used in an audio power amplifier, the advantages of the power MOSFET Applications over the power transistor are much more difficult to describe and would require greater complexity than can be gone into here.
  • Page 27 High Probably, from the sonic quality point of view, the most important improvement Frequency is the power MOSFETs vastly superior high frequency response. A large Response proportion of the power transistors used in modern hi-fi amplifiers start to show a decline in efficiency from 10kHz upwards. The efficiency of the power MOSFET does not start to decline until about 2MHz and is only down 3dB at 30MHz.

  • Page 28: Care And Maintenance

    The E160i has been designed to provide many years of trouble free enjoyment. It’s important to keep the exterior of the unit clean and to periodically ensure that the air-cooling grills remain clear from obstruction. Note: Please switch the unit off and remove the cord-set from the rear of the amplifier before attempting to clean your E160i in the manner described below.

  • Page 29: Warranty Information And Obtaining Service

    (365) days from the date of purchase from an authorised dealer or distributor. 5 Year To extend the warranty on your Perreaux E160i to five (5) years from date of Extended purchase, please return a fully completed warranty registration form along with a...

  • Page 30: Extended Warranty Registration Form

    Please complete this form and either fax, mail or scan and e-mail it to Perreaux Industries Ltd. Fax: +64 9 815 5981 Mail: Perreaux Industries Ltd PO Box 47 413 Ponsonby Auckland New Zealand E-mail: info@perreaux.com Alternatively, complete the online Warranty Registration Form on our website –...

  • Page 31: Faultfinding Your System

    Perreaux products used with equipment manufactured by other manufacturers may cause an earth loop situation, but Perreaux products used with other Perreaux products will not cause an earth loop situation provided the following precautions are observed: The entire hi-fi system must be connected to the same mains/line power outlet.
  • Page 32 Check that the entire system is connected in the proper manner and that the mains/line supply is connected and switched on. For clarity during this section, we have labeled one loudspeaker ‘A’ and the other loudspeaker ‘B’. In this example, loudspeaker ‘A’ appears faulty. Initial system connections SOURCE E160i...
  • Page 33 If the fault changes to loudspeaker ‘B’ on any one of the selected inputs, then that particular input source is possibly at fault. Move on to step 3b. SOURCE E160i SOURCE E160i SOURCE...
  • Page 34 This information will assist your Perreaux dealer or service person when or if any service is required. If the apparent fault is noise in one or both channels and has been localised to the amplifier, it will be necessary to determine whether or not the noise increases with the volume control;...
  • Page 35 Faultfinding Flowchart Fault in loudspeaker A Swap loudspeaker connections Fault in Loudspeaker A loudspeaker at fault Swap amplifier outputs Fault in Loudspeaker loudspeaker cable at fault Restore speaker cables to original connections Swap amplifier source input channels Fault in Loudspeaker loudspeaker cable at fault Swap source...

  • Page 36: Specifications

    The E160i specifications are detailed in brief and then subsequently in more detail. In the detailed version, we attempt to explain the significance of each specification. The correlation between published specifications and sonic quality can be unreliable. measurements must be subject to qualitative as well as quantitative interpretation.

  • Page 37: Audio Connections

    Idle ...40W Maximum ...450W Mains Input Voltage 100V, 110V, 120V, 220V, 230V or 240V AC at 50Hz or 60Hz (Set within the E160i at time of manufacture) Dimensions Width ... 430mm (16.9”) Height ... 88mm (3.5”) Depth ... 315mm (12.4”)
  • Page 38 Preamplifier Rated Output...1.5V Specifications This is the reference output level to which other specifications, such as Explained sensitivity, are referred. Rated output does not indicate the preamplifier’s full capability, this is given by the maximum output, as follows. Maximum Output...3.0V The maximum voltage the preamplifier can output before starting to clip.
  • Page 39 It is generally thought that a difference of 1db is the least that can be perceived by ear. To better that by a wide margin, the E160i is specified two times higher, thus exceeding the audible range of the human ear.
  • Page 40 ... 95dB (unweighted) The ratio of desired signal to noise signals present in the output. This figure is referenced to the rated output of the E160i, taking into full account all potentially annoying hum components. Input Sensitivity...1.3V Indicates the amount of input voltage required to drive the power amplifier section to its rated output power (160W into 8Ω).

  • Page 41: Physical Dimensions

    Physical Dimensions...

  • Page 42: Contact Details

    For more information please contact your Perreaux dealer, or contact: Perreaux Industries Ltd PO Box 47 413 Ponsonby Auckland New Zealand Ph: +64 9 815-5452 Fax: +64 9 815-5981 E-mail: info@perreaux.com Internet: www.perreaux.com Contact Details...
