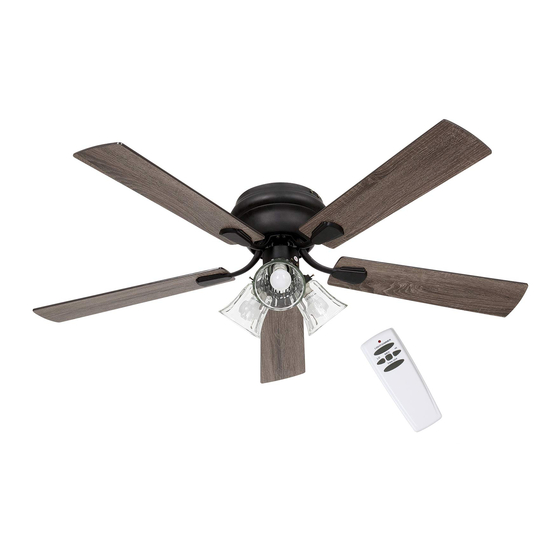

- Page 1 CEILING FANS INSTALLATION INSTRUCTION MODEL SERIES LTG-CF5001 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Before beginning installation of your new ceiling fan, read and follow these safety precautions. If you are not familiar with national and local electrical codes and basic electrical wiring procedures, we recommend that you have a qualified electrician install your new ceiling fan. Before you begin, TURN OFF THE ELECTRICITY. - Page 3 This ceiling fan was not designed for installation in any location where it might be exposed to moisture or high humidity. Installation in this type of location could be UNSAFE, will most likely damage the fan and its finish... and will VOID YOUR WARRANTY. Every effort has been made to provide you with proper instructions for the safe installation of this ceiling fan.
-
Page 4: Preparing For Installation
PREPARING FOR INSTALLATION Unpack the carton and inspect the fan carefully to be sure all contents are included. Please kindly keep well with the screws washers and all the other small items in case of missing. Turn off power at fuse box to avoid possible electrical shock. -
Page 5: Mounting Installation
MOUNTING INSTALLATION Attach the remote control receiver Press Board mounting plate to the press board on the motor ,align the two holes and tighten the 2 screws provided. Mounting Plate Remove screws from motor bracket and mounting plate. Hang fan from mounting plate by inserting "T"-shaped end of bracket into slot opening of mounting plate. - Page 6 MOUNTING Push motor upward and attach the motor to the mounting plate by tightly securing with screws and washers provided. The decorative motor housing has two mating slots (1) and two mating holes (2). Position both slots on the motor housing directly under and in line with two screws in the mounting bracket (3).
-
Page 7: Blade Installation
BLADE INSTALLATION Attach blade brackets to blades using the blade bracket screws (1), metal washers (2), and fabric washers (3), if provided. NOTE: Some models do not utilize fabric washers (3). The blade brackets must be attached to blade before attaching to motor. BE CAUTION the blade brackets not be deformed during installation to avoid fan wobble or noise. -
Page 8: Light Fixture Installation
LIGHT FIXTURE INSTALLATION Find the two wires from the switch housing with the tag that says FOR LIGHT. Connect the blue wire from the switch housing to the black wire from the light kit, and connect the white wire from the switch housing to the white wire from the light kit. -
Page 9: Remote Installation
REMOTE INSTALLATION 1. SETTING THE CODES This unit has 16 different code combinations. To set the codes, perform the following steps: Setting the codes on the transmitter: a. Remove battery cover. Press firmly on the arrow and slide battery cover off. b. -
Page 10: Remote Operation
REMOTE OPERATION 1.OPERATING TRANSMITTER: A. Install 9 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time). B. Store the transmitter away from excessive heat or humidity. C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to other remote units such as garage door openers, car alarm or security system. -
Page 11: Parts Inventory
PARTS INVENTORY Led Bulb x3... -
Page 12: Problem Solution
PROBLEM SOLUTION 1. Fan will not start: Check circuit fuses or breakers. Check all electrical connections to insure proper contact.CAUTION: Make sure the main power if OFF when checking any electrical connection. 2. Fan sounds noisy: Make sure all motor housing screws are sung. Make sure the screws that attach the fan blade brackets to the motor are tight.
