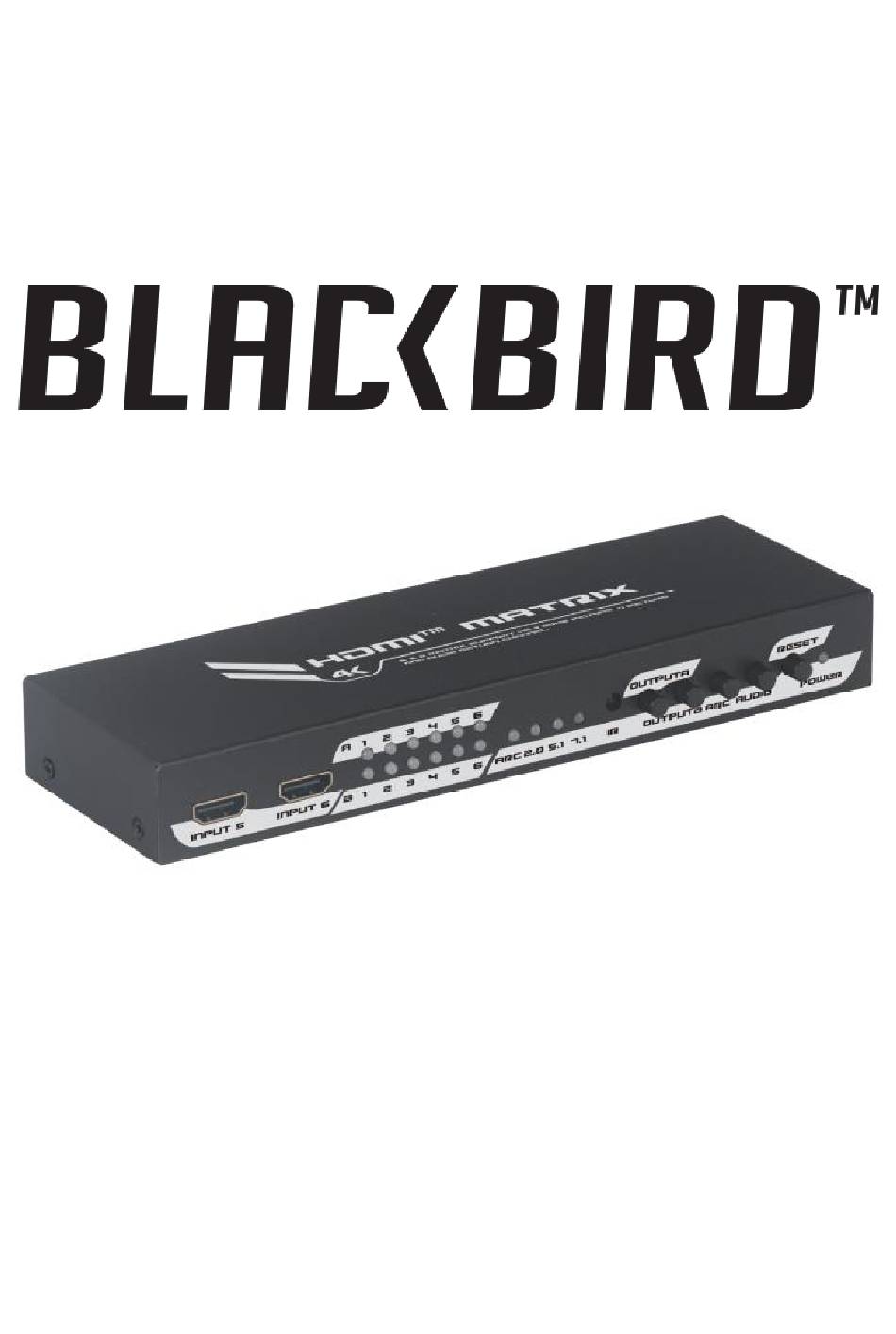

- Page 1 4K 6x2 HDMI® Matrix with Audio P/N 43395 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 INTRODUCTION This 4K 6x2 HDMI® Matrix allows you to independently distribute any of six HDMI inputs to two HDMI outputs. It supports video resolutions up to 4K@30Hz, including 1080p@60Hz and 3D video . The audio associated with either output can be extracted and sent to an external amplifier or powered speakers using the analog 3.5mm, digital coaxial, or digital optical (Toslink®) audio outputs.
- Page 4 FEATURES Independently distributes up to six HDMI® inputs to two • HDMI outputs Supports video resolutions up to 4K@30Hz, including • 1080p@60Hz and 3D video 9.0 Gbps video bandwidth • Supports up to 36-bit Deep Color • Supports HDCP™ 1.4 •...
-
Page 5: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Product Overview
PRODUCT OVERVIEW Remote Control Power Button: Press the Power Button to turn the matrix on or to put it into standby mode. Audio Button: Press the Audio Button to cycle through the available audio output modes. The cycle order is 2.0, 5.1, and 7.1. ARC Button: Press the ARC Button to turn the Audio Return Channel (ARC) feature on or off. - Page 7 Audio Section: Press the OUT A Button to extract the audio from Output A to the audio outputs. Press the OUT B Button to extract the audio from Output B to the audio outputs. Press the A↔B Button to swap the Output from which audio is extracted.
- Page 8 outputs. The 2.0, 5.1, or 7.1 LED illuminates to indicate the selected audio mode. IR: IR "eye" for receiving signals from the included IR remote control. OUTPUT A: Press the button to cycle through the available inputs for Output A. OUTPUT B: Press the button to cycle through the available inputs for Output B.
- Page 9 OUTPUT A: HDMI port for connecting an HDMI display. OUTPUT A supports the ARC feature. STEREO: 3.5mm 2-channel analog audio output jack for connecting an external amplifier or powered speakers. When the audio mode is set to 5.1 or 7.1, there will be no sound on this output.
-
Page 10: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM CONNECTION Perform the following steps to connect the matrix to your system. Ensure that all devices to be connected are powered off and disconnected from their power sources. - Page 11 Using a High Speed HDMI® Cable (available separately), plug one end into an HDMI input on one of your displays, then plug the other end into the OUTPUT A port on the matrix. If you want to use the ARC feature, you must connect to an input that supports ARC.
-
Page 12: Technical Support
Plug one end of the included AC power adapter into the DC/5V connector on the matrix, then plug the other end into a nearby AC power outlet. Pull the film out of the remote control to allow its battery to connect to the battery terminal. -
Page 13: Specifications
SPECIFICATIONS 43395 Video Inputs 6x HDMI® Video Outputs 1x HDMI with ARC, 1x HDMI 1x .3.5mm stereo analog, Audio Outputs 1x digital coaxial, 1x digital optical (Toslink®) 4K@30Hz, including 1080p and Maximum Video Resolution 3D video 9.0Gbps/900MHz total Video Bandwidth 3.0GHz/300MHz per channel... -
Page 14: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. - Page 15 and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different •...
