SUNSITT
sku:ST-015

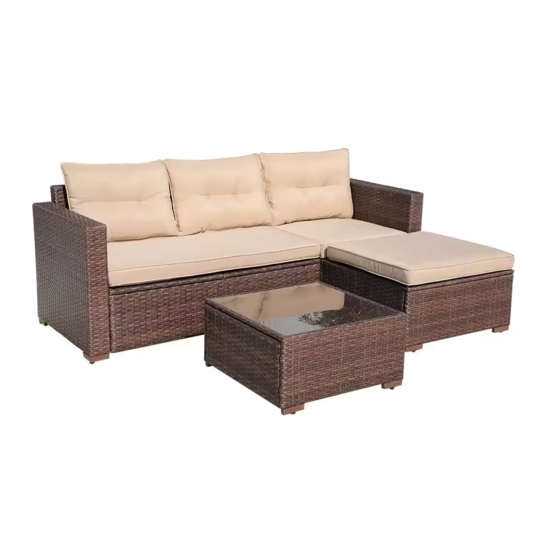

Capetown 4-Piece Conversation Set
1
Thank you for choosing Sunsitt!
Our goal is to provide high quality outdoor furniture with
outstanding customer service-all at an affordable price.
Please let us know how we are doing!
Problems?
(Missing pieces, wrong pieces...)
We will fix it Immediately. Send us an email at
help@sunsitt-patio.com.
If you are not satisfied with our
customer service, pls send your comments to
complaint@sunsitt-patio.com.
Happy?
Please leave us a review!
You can make others happy too!
www.sunsitt-patio.com
Advertisement
Related Manuals for Sunsitt Capetown ST-015
Summary of Contents for Sunsitt Capetown ST-015
- Page 1 SUNSITT sku:ST-015 Capetown 4-Piece Conversation Set Thank you for choosing Sunsitt! Our goal is to provide high quality outdoor furniture with outstanding customer service-all at an affordable price. Please let us know how we are doing! Problems? (Missing pieces, wrong pieces...) We will fix it Immediately.
- Page 2 SUNSITT Capetown 4-Piece Conversation Set ST-015 CARTON 1/2 ST-015-12 CARTON 2/2 ST-015-22 - 1 -...
- Page 3 SUNSITT IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Safety For domestic use only. Don't tighten all the bolts before the product is fully assembled. It would be useful to ask someone to help you assemble the product.
- Page 4 SUNSITT Safety for tempered glass If the glass is chipped or broken, stop using the table and consult us for help. Do not place very hot or very cold items on the glass surface unless adequately thick table mats are used to prevent such items from coming into contact with the glass.
- Page 5 SUNSITT Tips for Cushions In order to compress the package, we put the cushions in the gap of some parts. So there may be crinkle on the fabric. Don’t worry. Just flap every corner of the cushion evenly and it will get back into its original shape soon.
- Page 6 SUNSITT COMPONENT LIST - BENCH Item Reference Description Qty. Image Seat Back Armrest Seat Base Side Panel Side Panel M6X35 Head Cap Screws M6X40 Head Cap Screws - 5 -...
- Page 7 SUNSITT COMPONENT LIST - BENCH Item Reference Description Qty. Image Washer Allen Key Plastic Foot Plastic Foot Seat Cushion Back Cushion - 6 -...
- Page 8 SUNSITT NOTE: When tightening the Screws, tighten sequentially. DO NOT tighten any Screws fully and then move on to the next one. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned,loosen the screws and execute this same process.
- Page 9 SUNSITT Attach the Seat Back (A) to the Armrest (B) by securing with M6*35 Head Cap Screws (F) and Washers (H).Tighten into place with Allen Key (I). Pls don't fully tighten in this step. Do this in 2 places. Attach the two Seat Bases (C) to...
- Page 10 SUNSITT Complete the assembly of adjustable feet (J)&(K) by securing with M6*35 Head Cap Screws (F) and Washers (H) as drawing. Tighten into place with Allen Key (I). Do this in 12 places. Place the chair on a level surface, and adjust height for balance.
- Page 11 SUNSITT COMPONENT LIST - CORNER SOFA Item Reference Description Qty. Image Seat Back Armrest Seat Base M6X35 Head Cap Screws Washer Allen Key Seat Cushion Back Cushion - 10 -...
- Page 12 SUNSITT COMPONENT LIST - CORNER SOFA Item Reference Description Qty. Image Plastic Foot Plastic foot - 11 -...
- Page 13 SUNSITT NOTE: When tightening the Screws, tighten sequentially. DO NOT tighten any Screws fully and then move on to the next one. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned,loosen the screws and execute this same process.
- Page 14 SUNSITT Complete the assembly of adjustable feet (J)&(K) by securing with M6*35 Head Cap Screws (F) and Washers (H) as drawing. Tighten into place with Allen Key (I). Do this in 8 places. Place the chair on a level surface, and adjust height for balance.
- Page 15 SUNSITT COMPONENT LIST - OTTOMAN Item Reference Description Qty. Image Seat Base Side Panel Side Panel M6X35 Head Cap Screws Washer Allen Key Seat Cushion Plastic Foot - 14 -...
- Page 16 SUNSITT NOTE: When tightening the Screws, tighten sequentially. DO NOT tighten any Screws fully and then move on to the next one. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned,loosen the screws and execute this same process.
- Page 17 SUNSITT Complete the assembly of adjustable feet (J) by securing with M6*35 Head Cap Screws (F) and Washers (H) as drawing. Tighten into place with Allen Key (I). Do this in 8 places. Place the ottoman on a level surface, and adjust height for balance.
- Page 18 SUNSITT COMPONENT LIST - TABLE Item Reference Description Qty. Image Table Top Side Panel Side Panel Glass M6X35 Head Cap Screws Washer Allen Key Plastic Foot - 17 -...
- Page 19 SUNSITT NOTE: When tightening the Screws, tighten sequentially. DO NOT tighten any Screws fully and then move on to the next one. This may cause the frame to warp. If there is still wobbles or screw holes cannot be aligned,loosen the screws and execute this same process.
- Page 20 SUNSITT Complete the assembly of adjustable feet (J) by securing with M6*35 Head Cap Screws (F) and Washers (H) as drawing. Tighten into place with Allen Key (I). Do this in 8 places. Turn the table over and place on a flat surface, adjust height for balance.Then...
- Page 21 SUNSITT SECTIONAL SOFA CONNECTOR MANUAL Sectional outdoor wicker patio sofa is very light weight in nature and subject to movement. These high quality fasteners prevents movement between modules to maintain the aesthetically good look of your modular patio furniture set.
