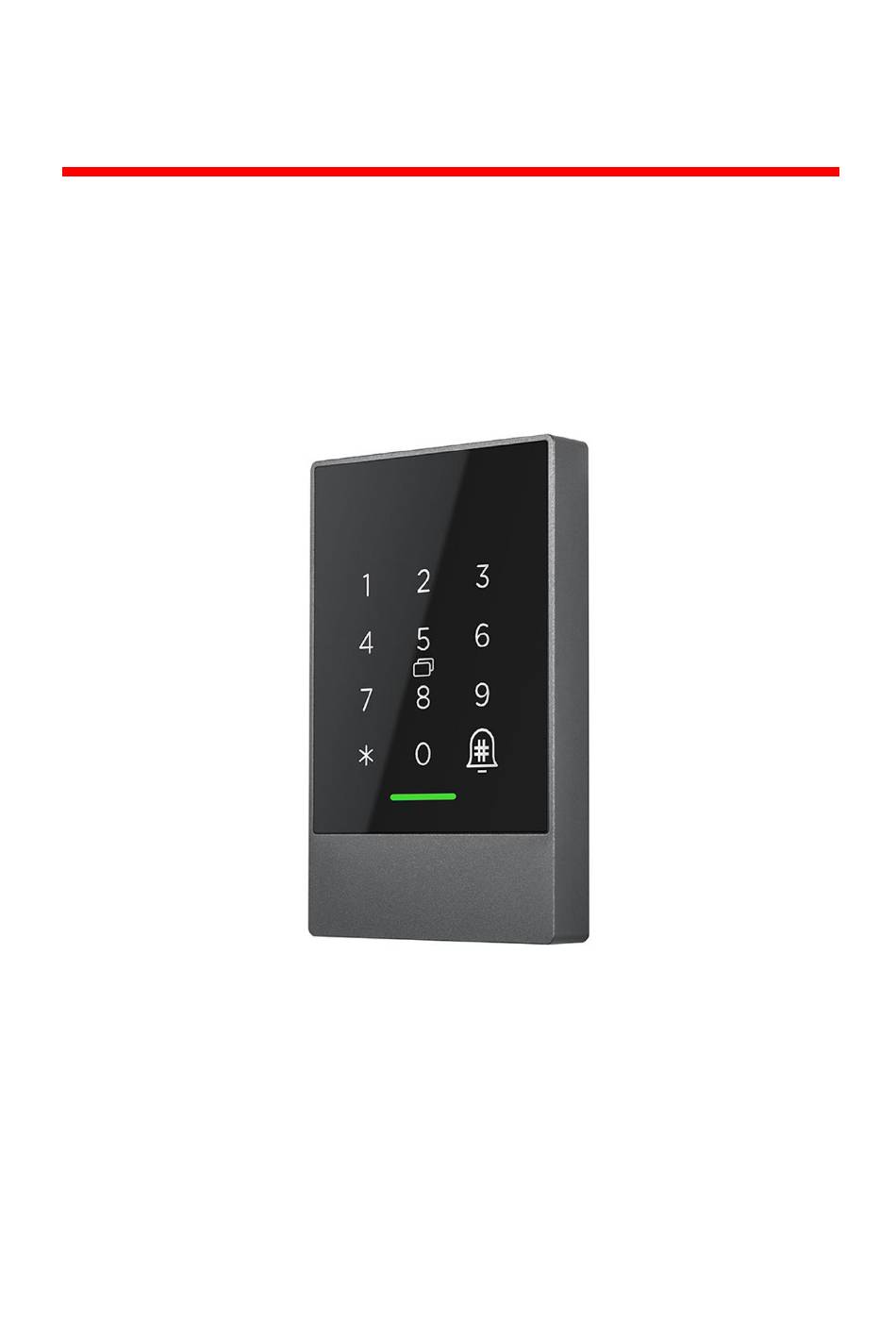

- Page 1 Remote reader vG-BLreader 2 User manual...
- Page 2 • Internal memory for 20,000 users • IP66 protection, • Power supply 12V DC 500mA (not included) • Relay for controlling the actuator (500mA) NC / NO, • Working temperature: -20°C to + 70°C, • Communication: Bluetooth 4.1 www.wano.pl Page...
- Page 3 Kit content 1 x Wire 1 x remote reader vG-BLreader 2 1 x Strike 1 x Instruction 1 x Mounting plate Screws Scheme www.wano.pl Page...
-
Page 4: Montage
Montage Drill a hole in the appropriate place to make room for connecting the cable to the power source. Fix the mounting plate with 4 screws. www.wano.pl Page... - Page 5 Attach the clip to the mounting plate with 2 screws. Install the reader on the hook and attach it to the mounting plate with the screw on the bottom. www.wano.pl Page...
- Page 6 Wiring description • +12V DC: Red • GND : Black • NC: Orange • COM: Yellow • NO: Green • SW: Blue • IN: Purple • OUT: White • BELL: Grey • BELL: Brown www.wano.pl Page...
- Page 7 Connection diagram for the exit button www.wano.pl strona...
- Page 8 Diagram of connection of the NC aversive electric strike www.wano.pl Page...
- Page 9 Diagram of connection of the NO reverse electric strike www.wano.pl Page...
- Page 10 Pairing the reader with the application Touch a panel to highlight it and activate the lock. Activate the TTlock application after the voice command "Add Bluetooth administrator". www.wano.pl | 10 Page...
- Page 11 To add a reader, first wake up the device by touching the keyboard. Thanks to this, the device will appear in the application and it will be possible to assign it to our account through the visible plus icon. www.wano.pl | 11 Page...
- Page 12 1. Turning on permanent backlight To turn on permanent backlight it is necessary to type in code *49#administrator code#1# 2. Turning off permanent backlight To turn on permanent backlight it is necessary to type in code *49#administrator code#0# www.wano.pl | 12 Page...
-
Page 13: Warranty
• WHEN THE READER IS STRONGLY EXPOSED TO ADVERSE ATMOSPHERIC CONDITIONS, A SPECIAL PROTECTIVE CANOP MUST BE APPLIED • USE 12V POWER SUPPLIES WITH AMPERAGE EQUAL TO OR GREATER THAN 500mA ul.Jana III Sobieskiego 80B 62-030 Luboń, Polska tel. 61 307 22 35 email: biuro@wano.pl www.wano.pl...
