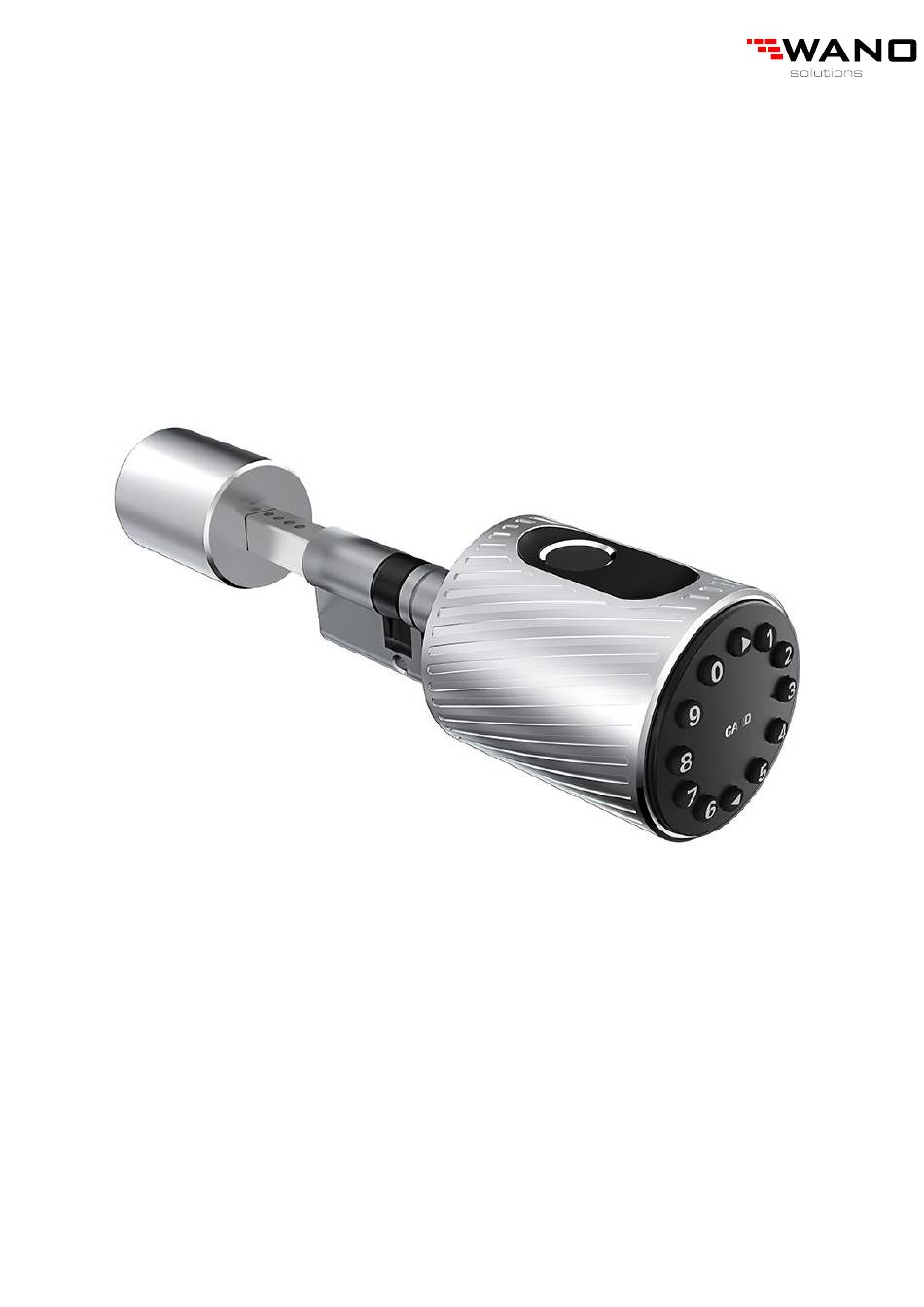

- Page 1 Smart Lock User Manual vG-BLcylinder 2 Special Attention: 1. Mechanical keys please keep outdoor, just in case keys lock in doors. 2. Please replace for the battery when low wattage alarm. 3.Reading this manual carefully before installation, and keep it for future reference.
- Page 2 Introduction 1.1.Adjust the cylinder to perfectly match your door and escutcheon. As shown in the figure: the door thickness is 30mm, and the panel thickness is 15mm,The distance of each compartment on the lock core is 5mm Total thickness(distance from cylinder hole center to front panel) Total thickness(distance from cylinder hole center to back panel)
-
Page 3: Packing List
M1.5*5mm Hexagon socket screw Card M1.5*10mm Mechanical Key Hexagonal screwdriver User Manual 1.3.Specifications Suitable for Aluminum door Doors Applicable vG-BLcylinder 2 Models Wooden door Aluminum alloy Materials Working Voltage 6V/4x AAA Batteries Thickness of door 30-110MM Lock Weight frames and... -
Page 4: Installation Diagram
2.Installation Diagram Adjust the cylinder Step 2 Install Screw for Cylinder Step 1 An old lock installed at a distance greater than 50MM from the square shaft to the door Step 3 Install Indoor knob Step 4 Installation completed Step 5 Install the battery 1.Insert the key and rotate counterclockwise to unlock 2. -
Page 5: Operation
3.Operation 3.1.Registration software (iOS version) downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi. 3.2. Connect lock to the phone 1) please scan the QR code to download the app 2) You can also search for TTLock in the APP store(Google Play)to download 4) Register a new account (phone number or email) or login with an existing account. -
Page 6: Setting Passcode
3.4.User Management 3.4.1. Bluetooth management Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click " "to unlock.(the phone is within 5meters from the door lock) 3.4.2. Setting Passcode Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. - Page 7 3.4.4.Add card Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be perform ed by the app beside the lock.The validity period of the IC can be set, it can be per manent, or it can be limited in time.
-
Page 8: Add Gateway
3.5. Gateway management(Optional) The TT lock is directly connected via Bluetooth, that is why it is not attacked by the network. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. - Page 9 4.FAQ 1) How to read operation records? In the Records of the main interface. . 2) Why can’t I unlock it after open the You need to perform an unlock verification in passage mode any method, than the passage mode will take effect.
- Page 10 W celu uzyskania szczegółowych informacji prosimy o kontakt: Tel.: +48 784 037 299 Fax: +48 61 624 85 38 www.wano.pl // biuro@wano.pl...
