- Page 1 FIXED TRANSMITTER LC3.VGTS Operation manual Linear Technologie • 11 rue du Puits Rochefort • 42 100 Saint-Etienne Tél: +33 (0)4 77 81 49 49 • Fax: +33 (0)4 77 81 49 40 • www.lineartech.fr...
- Page 2 TABLE OF CONTENTS Page 3 1. Buttons name and function Page 4 2. Operation instructions Page 5 3. Specifi cations...

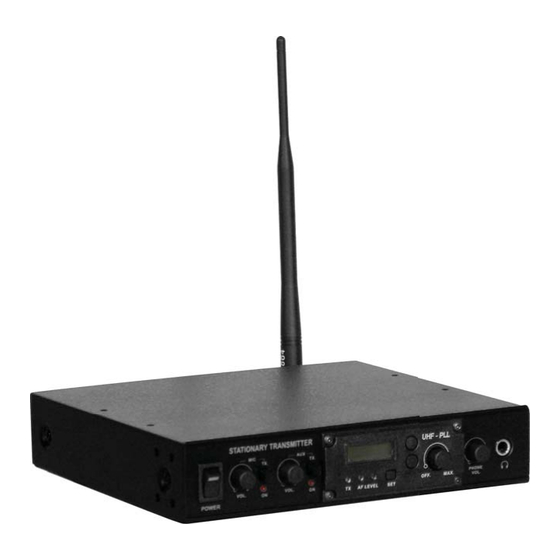

- Page 3 1. BUTTONS NAME AND FUNCTION 1. Power switch (on/off ) 2. MIC/VOL (Wired mic volume control) 3. MIC/TX (When the light is on, the wired mic signal will be transmitted through EJ-770T) 4. AUX input/VOL (Volume control) 5. AUX/TX 6. Transmitting indicator (for UHF transmitter module) 7.
- Page 4 2. OPERATION INSTRUCTIONS 1. Turn on Power Switch (1) 2. Adjust and set preferred UHF transmitting module’s channel. • Ajust : Turn (F) clockwise (you will hear a “click”), then LCD will turn on and show the channel number, it means transmitting module is on. You can adjust the volume by keeping turning (F) clockwise.
- Page 5 A. LCD (showing channel/frequency) B. TX transmitting indicator C. AF transmitting indicator / AF volume level indicator D. Frequency set E. Channel selector F. EJ-770T UHF transmitting module / Power & Volume 3. SPECIFICATIONS RF OUTPUT : 10 - 30 mW RECEIVER FREQUENCY RANGE : JACK AUX INPUTS : Ø...
