INSTALLATION
To install the HD Action Camera on an LRAD's Picatinny rail, perform the following steps.
NOTE:
Prior to installation on LRAD, insert memory card and fully charged battery into Camera
1.

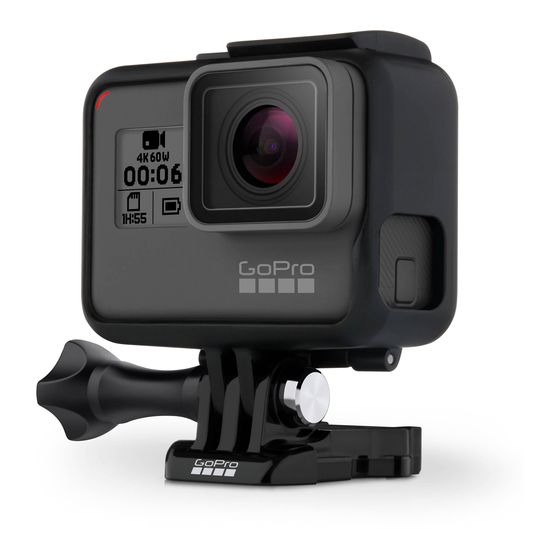

Remove Camera from
packaging. Camera will come
equipped with a pre-installed
plastic mount.
4.
Place Picatinny mount onto the
base of the Camera, ensuring
that screw holes are aligned.
HD Action Camera
Installation Guide
2.
Remove plastic mount from
the Camera by removing the
thumbscrew and mount from
the base of the Camera.
5.
Insert thumbscrew and hand
tighten.
3.
Open Picatinny mounting kit
and take out the thumbscrew
and Picatinny mount.
6.
Fully tighten the thumbscrew
using a Phillips-head
screwdriver to secure the
Camera's position on the
mount.
D00133 Rev. A
