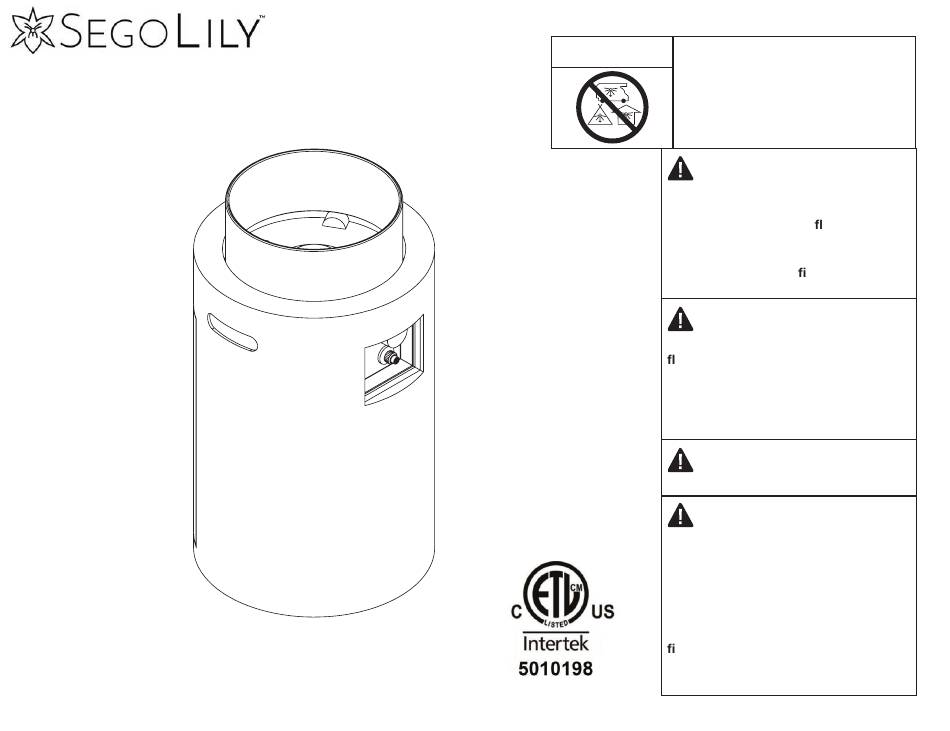

ITEM#HF24608BA
SL-FT-3-LCMNT
SL-FT-3-DCMNT
>> assembly instructions
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor. Using it in an
enclosed space can kill you. Never use this
appliance in an enclosed space such as a
camper, tent, car or home.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
For outdoor use only.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the owners manual thoroughly
before installing or servicing this
equipment. If the information in this
manual is not followed exactly, a
re or explosion may result causing
property damage, personal injury, or
loss of life.
1
Advertisement
Related Manuals for Sego Lily SL-FT-3-LCMNT
Summary of Contents for Sego Lily SL-FT-3-LCMNT
- Page 1 This appliance can produce carbon monoxide which has no odor. Using it in an ITEM#HF24608BA enclosed space can kill you. Never use this appliance in an enclosed space such as a SL-FT-3-LCMNT camper, tent, car or home. SL-FT-3-DCMNT DANGER If you smell gas: 1.
-
Page 2: Introduction
Congratulations on your latest Sego Lily purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your outdoor space in no time. - Page 3 safety information continued • Always ensure that lava rocks/pumice stones/Lava Glass™ are completely dry before use. Failure to do so will cause them to crack or pop. • Do not operate unit until all parts are fully assembled. • Do not paint or color any part of this heating unit. •...
- Page 4 safety information continued • Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. • Young children should be carefully supervised when they are in the area of the appliance. •...
-
Page 5: Table Of Contents
table of contents introduction parts list assembly operation maintenance troubleshooting warranty & contact info... -
Page 6: Parts List
ITEM DESCRIPTION QUANTITY cover 1 pc body 1 pc door panel 1 pc lava rocks 1 box AAA battery (not included) 1 pc control knob (pre-assembled) 1 pc electronic Igniter (pre-assembled) 1 pc burner (pre-assembled) 1 pc guard (pre-assembled) 1 pc feet (pre-assembled) 4 pc glass... -
Page 7: Assembly
step 1. 1. Check that the control knob (F) for the gas supply system is turned to the “OFF” position before starting any assembly. - Page 8 step 2. 1. Remove the door panel (C) from the body (B) of the fire column and put the 20 lb. propane gas tank (not included) into the body (B). Turn the wing screw on the outside of the internal tank holder clockwise to tighten the tank into the holder.
- Page 9 step 3. CYLINDER VALVE 1. Turn the cylinder valve on the tank clockwise to close the propane tank.
- Page 10 step 4. CYLINDER VALVE BLACK COUPLING NUT turn clockwise to connect REGULATOR 1. Attach the pre-assembled regulator from the body (B) to the cylinder valve by turning the regulator coupling nut clockwise. Make sure it is fastened securely and tighten connections by hand only. Place door panel (C) back on the body (B) of the fire column.
- Page 11 step 5. 1. Remove the rubber cap on the electronic igniter (G) by unscrewing and slide battery (E) into the battery slot. Make sure the positive side of the battery faces outward. Screw the electronic igniter cap (G) over the battery tightly.
- Page 12 step 6. 1. Pour the box of lava rocks (D) into the body (B) of the firebowl. DANGER To ensure proper function, the guard (I) on this burner (H) should be free of lava rocks at all times.
- Page 13 step 7. 1. Insert the glass (K) into the supports at the top of the body (B).
-
Page 14: Operation
operation. Leak Test Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. -
Page 15: Maintenance
maintenance. • Before performing any maintenance always disconnect propane gas tank. • Keep the heating item free and clear from combustible materials. • Visually inspect burner for obstructions and keep tank enclosure free and clear from debris. • Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/ lava rocks/Lava Glass™... -
Page 16: Troubleshooting
troubleshooting. Problem Cause Solution Igniter pin and burner are wet Dry off with a soft cloth Igniter battery is incorrectly inserted Check which direction the battery is inserted Igniter pin is broken Contact Bond Manufacturing for a Heating unit won’t light replacement part Electrode wire is loose or disconnected Reconnect wire to the igniter box located... -
Page 17: Warranty & Contact Info
warranty. The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the following actions: • Modi cation of the unit and/or components including the gas valve assembly. • Use of any component part not manufactured or approved by Bond Manufacturing. •...
