- Page 1 U ser manual SB L 10 e Regular 1.10 .12 0 0 2 A...
- Page 2 Product information Product design and specifications are subject to change at any time and `Qeedji` reserves the right to modify them without notice. This includes the hardware, the embedded software and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.
-
Page 3: Table Of Contents
Tab le of contents Part I : Description and installation Introduction Device dimensions 1.1.1 Labelling 1.1.2 Installation 1.1.3 Uninstallation 1.1.4 Smart Busy Light applications Part II : Applicativ e user interface Applicative user interface Part III : Administration console user interface Administration console user interface Configuration >... -
Page 4: Part I : Description And Installation
Description and installation Part I... -
Page 5: Introduction

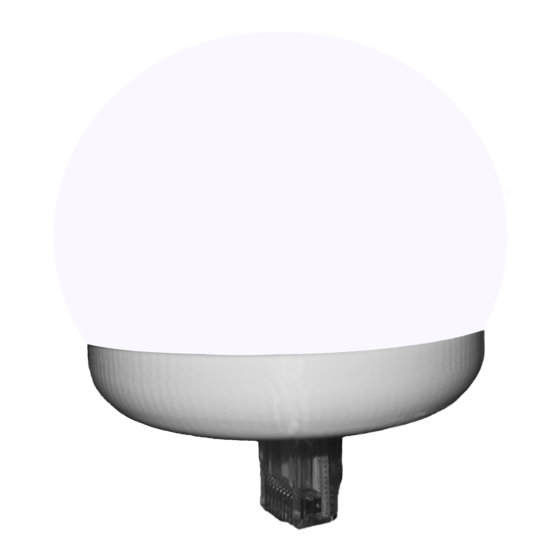

This device is designed for indoor use only. To ensure better rendering of the SBL10e, the device should not be installed under direct sunlight. The SBL10e device is designed to be illuminated 12 hours a day, 7 days a week. -
Page 6: Device Dimensions
1.1.1 Dev ice dimensions... -
Page 7: Labelling
1.1.2 L ab elling PSN lab el The model of the device, the power supply characteristics, the serial number (PSN) and the MAC address are written on labels stuck on the case. ☛ The QR code on the PSN label is corresponding to the product identification U R L , for example: i.q eedj i.tech?model=S B L 10 e&sn=0 13 2 0 -0 0 0 0 9 &mac.lan1=0 0 -1C -E 6 -0 2 -4C -E C &mac.wpan1=D F -2 7 -8 3 -3 C -8 A -9 0 EAN lab el This is the label stuck also on the cardbox. -
Page 8: Installation
☛ Install the SB L 10e device on the Ethernet wall plugs of the buildings following the installation plan given by your IT departement. The SBL10e device has to be plugged to an Ethernet wall plug supporting PoE IEEE802.3af. G iven the device footprint, it is preconised to use Ethernet wall plug plastron with a right insertion. -
Page 9: Uninstallation
1.1.4 U ninstallation With a screw driver, hold down the pin of the Ethernet connector of the SBL10e device at the same time you are releasing with the hand SBL10e device from the Ethernet wall plug. -
Page 10: Smart Busy Light Applications
S mart B usy L ig ht Preprogrammed flashing seq uence The SBL10e device has two modes: : the application runs properly and sets the light state and color as expected. When a configuration or a firmware Nominal mode Smart Busy Light upgrade is in progress, the light illumination can be temporarily inconsistent and follow the light flashing sequence below. - Page 11 Qether seconds periodicity 3 very short and consecutive blue flashs The software resource of the SBL10e device set at factory are not valid. It should never occur. For R ecovery (250 ms) with a 5 seconds further information, contact support@ qeedji.tech.
-
Page 12: Part Ii : Applicativ E User Interface
Applicativ e user interface Part II... -
Page 13: Applicative User Interface
2 .1 Applicativ e user interface The SBL10e device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Moz illa F irefox MS-Edge MS-Edge (Chromium) It is accessible from the UR L: http://<device_IP_addr>/... -
Page 14: Part Iii : Administration Console User Interface
Administration console user interface Part III... -
Page 15: Administration Console User Interface
3 .1 Administration console user interface The SBL10e device has a Web user interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Moz illa F irefox MS-Edge MS-Edge (Chromium) It is accessible from the UR L: http://<device_IP_addr>/... -
Page 16: Configuration > Administrator
☛ The same login credentials are used to access to the WebDA V server. It is recommended that you enter one unique value for each device. In case several SBL10e devices are located in different buildings or H ostname geographical locations, we recommend that you enter hostname values with information about the building and the location (e.g. -
Page 17: Configuration > Lan
3 .1.2 C onfiguration > L AN pane, select the L AN menu to set up the network configuration of the In the interface of your device. Configuration ☛ B y default, the device is configured with DHCP activated. In case the DHCP server is not available, after the DHCP timeout, the device ends up using the static IP address whose default value is 19 2.16 8 .0.2 when it has not been changed yet by the end user. -
Page 18: Configuration > Servers
3 .1.3 C onfiguration > Serv ers pane, select the Serv ers menu to define the configuration of the servers peripheral to your device. In the Configuration... -
Page 19: Maintenance > Firmware
3 .1.4 Maintenance > F irmware pane, select the F irmware menu to view the version of the firmware installed on your device. From the Maintenance ☛ Corrective and evolutive maintenance software versions are regularly made available in the support tab of the official website Q eedj i https: / / www.q eedj... -
Page 20: Maintenance > Preferences
Before changing any value of a preference, please consult your support. ◬ Qeedji Double click on a preference to change its value. button resets a subset of preferences allowing the device to reprogram its factory preferences. In this case the LAN Restore factory preferences network configuration returns to DH CP. -
Page 21: Maintenance > Tools
3 .1.6 Maintenance > Tools pane, select the Tools menu to: In the Maintenance view the available space on the flash memory storage¹ (max 8 MiB), format the flash memory storage¹ . ¹ The fl ash memory storage is used to store all the directories and files hosted at the root of the WebDA V directory, and the user preferences as well. In case fl... -
Page 22: Maintenance > Files
3 .1.7 Maintenance > F iles pane, select the F iles menu to see the files hosted at the root WebDAV directory. In the Maintenance It contains a directory. .conf As soon as a modification is done through the user interface, a file, corresponding to the new configuration, is Administration console prefs.json... -
Page 23: Information > Device
Information : label and version of the firmware embedded in the device, F irmware : model of the device, Model Qeedji : product manufacturer name, Manufacturer : manufacturer Web site, Manufacturer URL : name of the device on the network, H ostname : Universal Unique IDentifier,... -
Page 24: Information > Network
3 .1.9 Information > Network pane, select the Network menu to view a summary of the device' s network configuration. In the Information... -
Page 25: Part Iv : Technical Information
Technical information Part IV... -
Page 26: Technical Specifications
4.1 Technical specifications Model Manufacturer SBL10e Qeedji Power supply Information PoE IEEE802.3af PO E power supply input: ES1 / PS2 (48 V DC – 100 V A max) Processors Nordic Semiconductor nR F52 Security processor AR M CryptoCell 310 Storage ... -
Page 27: Conformities
Qeedji is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user’ s authority to operate the equipment. -
Page 28: Contacts
C ontacts Part V... - Page 29 R efer to the Web site for FAQ, application notes, and software downloads: https://www.qeedji.tech/ Qeedji Qeedji F RANCE INNES SA 5A rue Pierre J oseph Colin 357 00 RENNES Tel: + 33 (0)2 23 20 01 62 F ax: + 33 (0)2 23 20 22 59...
- Page 30 Appendix Part V I...
-
Page 31: Appendix: Web Services
6 .1 Appendix: Web serv ices These are the supported Web services for the application to command and control the SBL10e: regular HTTP method From the Smart Busy Light Webservice path Query string parameters Body Function Regular POST DELETE version api/v1/sys/power <state>=rebooting... -
Page 32: Appendix: Qether
