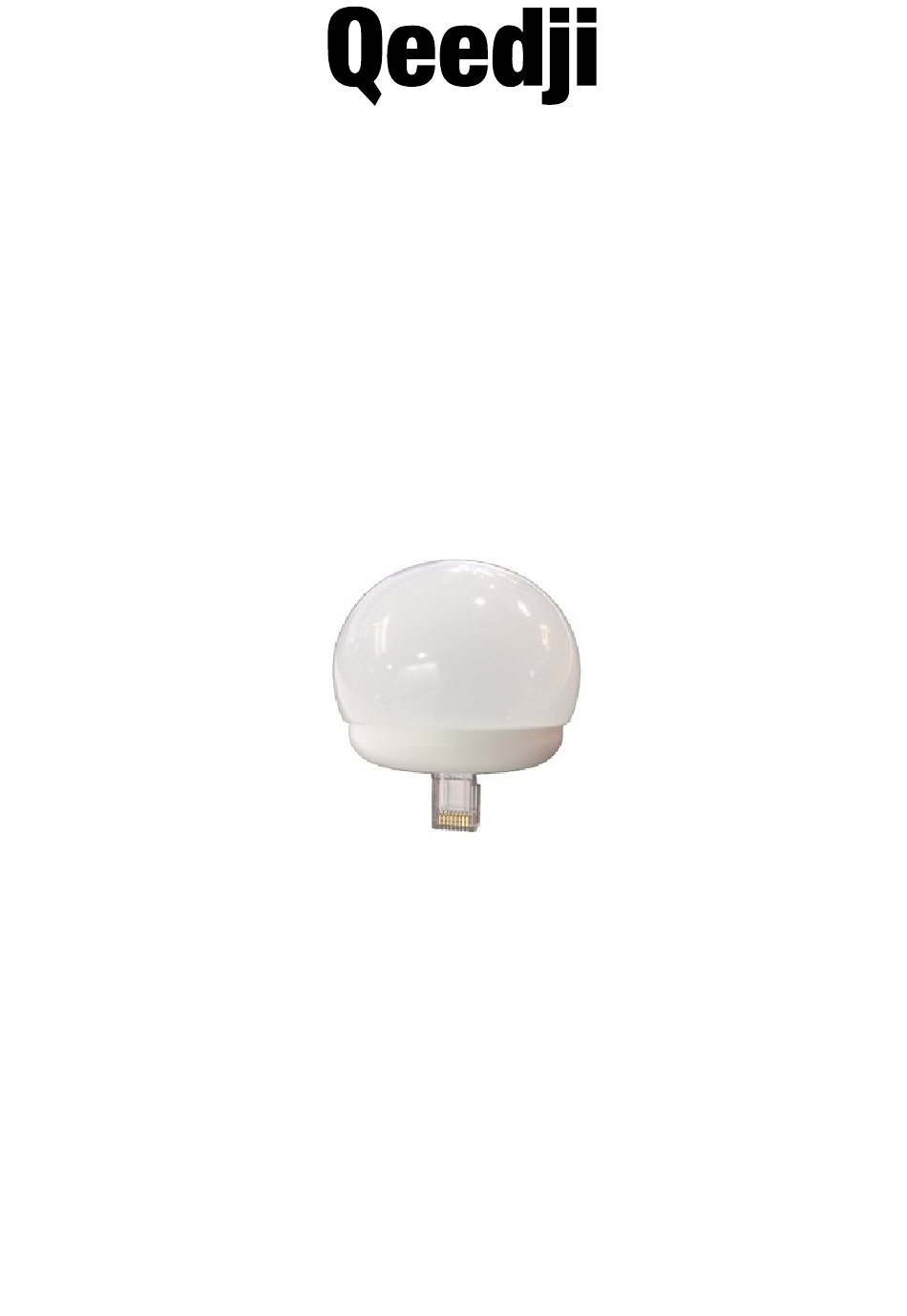

- Page 1 User manual 001A SBL10e smart_office_obs-1.10.11...
- Page 2 Product informa on Product design and specifica ons are subject to change at any me and `Qeedji` reserves the right to modify them without no ce. This includes the hardware, the embedded so ware and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.
-
Page 3: Table Of Contents
Table of contents 1 - Descrip on and installa on Introduc on Device dimensions 1.1.1 Labelling 1.1.2 Installa on 1.1.3 Smart Busy Light applica ons Web services 1.2.1 2 - Configura on Configura on Web interface Configura on > Administrator 2.1.1 Configura on >... -
Page 4: Introduc On
This device is designed for indoor use only. To ensure be er rendering of the SBL10e, the device should not be installed under direct sunlight. The SBL10e is designed to be illuminated 12 hours a day, 7 days a week. -
Page 5: Device Dimensions
Device dimensions 1.1.1 60,47 mm 18,20 mm 47,56 mm (2,38") (0,70") (1.87") -
Page 6: Labelling
Labelling 1.1.2 ☛ The serial number of the device can be requested in case of technical support. The model of the device, the power supply characteris cs, the serial number (PSN) and the MAC address are wri en on labels which are stuck on the case. This is the label stuck also on the cardbox. -
Page 7: Installa On
Consequently, the Ethernet wall plug whose plastron is angled is not supported. ☛ Thanks to the pin of its Ethernet connector, the SBL10e can be installed on ver cal surfaces, like wall as well as horizontal surfaces, like ceilings. Uninstalla on 1.1.3... -
Page 8: Smart Busy Light Applica Ons
ON flashing ☛ The light color and state values are stored in the vola le memory (RAM). That means that in case the SBL10e device is unplugged from the Ethernet wall plug then plugged back again, the light comes back to its default state: Configura on... -
Page 9: Web Services
Web services 1.2.1 These are the supported Web services for the applica on to command and control the SBL10e: smart_office_obs HTTP method From the Webservice path Query string parameters Body Function smart_office_obs application POST DELETE version api/ v1/ sys/ power <state>=rebooting... -
Page 10: Configura On Web Interface
Configura on Web interface The SBL10e device has a Web-based configura on interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Mozilla Firefox MS-Edge MS-Edge (Chromium) It is accessible from the URL: http://<device_IP_addr>/ By default, the login creden als for the configura on Web interface and the Web server are:... -
Page 11: Configura On > Administrator
For security reasons, it may be useful to change the login creden als for the device's configura on Web interface. Please keep these login creden als in a safe place a erwards. It is recommended that you enter a unique value for each device. In case several SBL10e devices are located in different buildings or geographical loca ons, we Hostname recommend that you enter hostname values with informa on about the building and the loca on (e.g. -
Page 12: Configura On > Lan
Configura on > LAN 2.1.2 In the pane, select the LAN menu to set up the network configura on of the interface of your device: Configuration ☛ By default, the device is configured with DHCP ac vated. In case the DHCP server is not available, a er the DHCP meout, the device ends up using the sta c IP address whose the default value is 192.168.0.2 when it has not been changed yet by the end user. -
Page 13: Configura On > Servers
: enter the opera ng port of your proxy server. Port DNS servers This is an example of HTTP request, including the appropriate SBL10e PSN value, sent to the datasource server, to get the last light state and color values to apply to the SBL10e device: Method... -
Page 14: Maintenance > Firmware
From this website, download the appropriate latest firmware version available for your device model ( file). For .bin further informa on, contact support@qeedji.tech. Drop your file in the bu on , then click on the bu on to update the firmware version of your device. -
Page 15: Maintenance > Preferences
Before changing any value of a preference, please consult your support. ◬ Qeedji Double click on a preference to change its value. bu on resets a subset of preferences allowing the device to reprogram its factory preferences. In this case the LAN network configura on Restore factory preferences returns to DHCP. -
Page 16: Maintenance > Tools
¹ The flash memory storage is used to store all the directories and files hosted at the root of the WebDAV directory, and the user preferences as well. In case a flash forma ng, the SBL10e device returns to the default factory se ngs. In this case, the trusted cer ficate is erased. -
Page 17: Maintenance > Files
Maintenance > Files 2.1.7 In the pane, select the menu Files to see the files hosted at the root WebDAV directory. Maintenance folder is containing a file which is corresponding to the configura on programmed as soon as a modifica on is done through the configura on Web .conf prefs.json interface. -
Page 18: Informa On > Device
Information : label and version of the firmware embedded in the device, Firmware : model of the device, Model Qeedji : product manufacturer name, Manufacturer : manufacturer Web site, Manufacturer URL : name of the device on the network, Hostname : Universal Unique IDen fier,... -
Page 19: Informa On > Network
Informa on > Network 2.1.9 In the pane, select the Network menu to view a summary of the device's network configura on. Information... -
Page 20: Recovery By Qether
MAC address of the device with the format <SBL10e_device_MAC_address> 00:1C:E6:AB:CD:EF The MAC address of the device is wri en on the label stuck at the back of the SBL10e device with the format ◬ 00-1C-E6-AB-CD-EF Discover command example This command allow to find out the... -
Page 21: Technical Specifica Ons
Technical specifica ons Model Manufacturer SBL10e Qeedji Processors Nordic Semiconductor nRF52 Security processor ARM CryptoCell 310 Storage Flash Memory for file system 8 MBytes Network Other informa on 1x Ethernet 10/100 Base T, male connector WPAN Bluetooth Low Energy 5 Frequency band: 2.402 to 2.480 GHz... -
Page 22: Conformi Es
Qeedji is not responsible for any changes or modifica ons not expressly approved by the party responsible for compliance. such modifica ons could void the user’s authority to operate the equipment. -
Page 23: Contacts
For further informa on, please do not hesitate to contact us: by phone at +33 (0)2 23 20 01 62, by e-mail: Technical support: support@qeedji.tech, Sales department: sales@qeedji.tech. Refer to the Web site for FAQ, applica on notes, and so ware downloads: Qeedji h p://www.qeedji.tech/...
