2. INTRODUCTION & SPECIFICATIONS
Ideal for use where high volume air delivery is required. Especially suitable for ventilating confined, hot or fume laden work sites, typically as
found in boats, cable/pipe ducts, roof spaces etc. Light weight and robust construction give the portability and durability necessary in the work
place. Fitted with carry handle, 2.4mtr cable and ASTA/BS approved plug. Supplied with 5mtr ducting.
Model No: . . . . . . . . . . . . . . . . . . . .VEN200
Supply: . . . . . . . . . . . . . . . . . . . . .230V 1ph
Motor: . . . . . . . . . . . . . . . . . . . . . . . . .180W
Fan Diameter: . . . . . . . . . . . . . . . . .200mm
Model No: . . . . . . . . . . . . . . . . . . . .VEN300
Supply: . . . . . . . . . . . . . . . . . . . . .230V 1ph
Motor: . . . . . . . . . . . . . . . . . . . . . . . . .520W
Fan Diameter: . . . . . . . . . . . . . . . . .300mm
3.

ASSEMBLY

3.1

AIR DUCTING

3.1.1 The ducting can be used to either suck the air from an
area or blow air into an area.
3.1.2 To extract air from an area attach the ducting (fig 1) to
the inlet. Place the other end of the ducting into the
desired area.
3.1.3 To blow air into an area, attach the ducting to the
opposite end of the unit and locate the ducting in the
area you wish to ventilate.
Note: The ducting has suspension eyes attached. These can
be used to suspend the ducting if elevation is
necessary to carry out the required ventilation.
4.

OPERATION

Declaration of Conformity

PORTABLE VENTILATORS
Models: VEN200 & VEN300
98/37/EC Machinery Directive
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive
93/68/EEC Marking Directive
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts
without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12 months from
purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and promotions call us on
01284 757525 and leave your full name and address, including postcode.
01284 757500
Fan Speed: . . . . . . . . . . . . . . . . . .2800rpm
Air Flow: . . . . . . . . . . . . . . . . . . . .25m³/min
Static Pressure: . . . . . . . . . . . . . . . .2.4mbar
Weight (without ducting): . . . . . . . . . . .7.4kg
Fan Speed: . . . . . . . . . . . . . . . . . .2800rpm
Air Flow: . . . . . . . . . . . . . . . . . . . .60m³/min
Static Pressure: . . . . . . . . . . . . . . . .3.4mbar
Weight (without ducting): . . . . . . . . . .11.7kg
fig 2
We, the sole importer into the UK, declare that the products listed here are in conformity with the following standards and directives.
The construction files for these products are held by the Manufacturer and may be inspected,
by a national authority, upon request to Jack Sealey Ltd.
Signed by Mark Sweetman
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
01284 703534

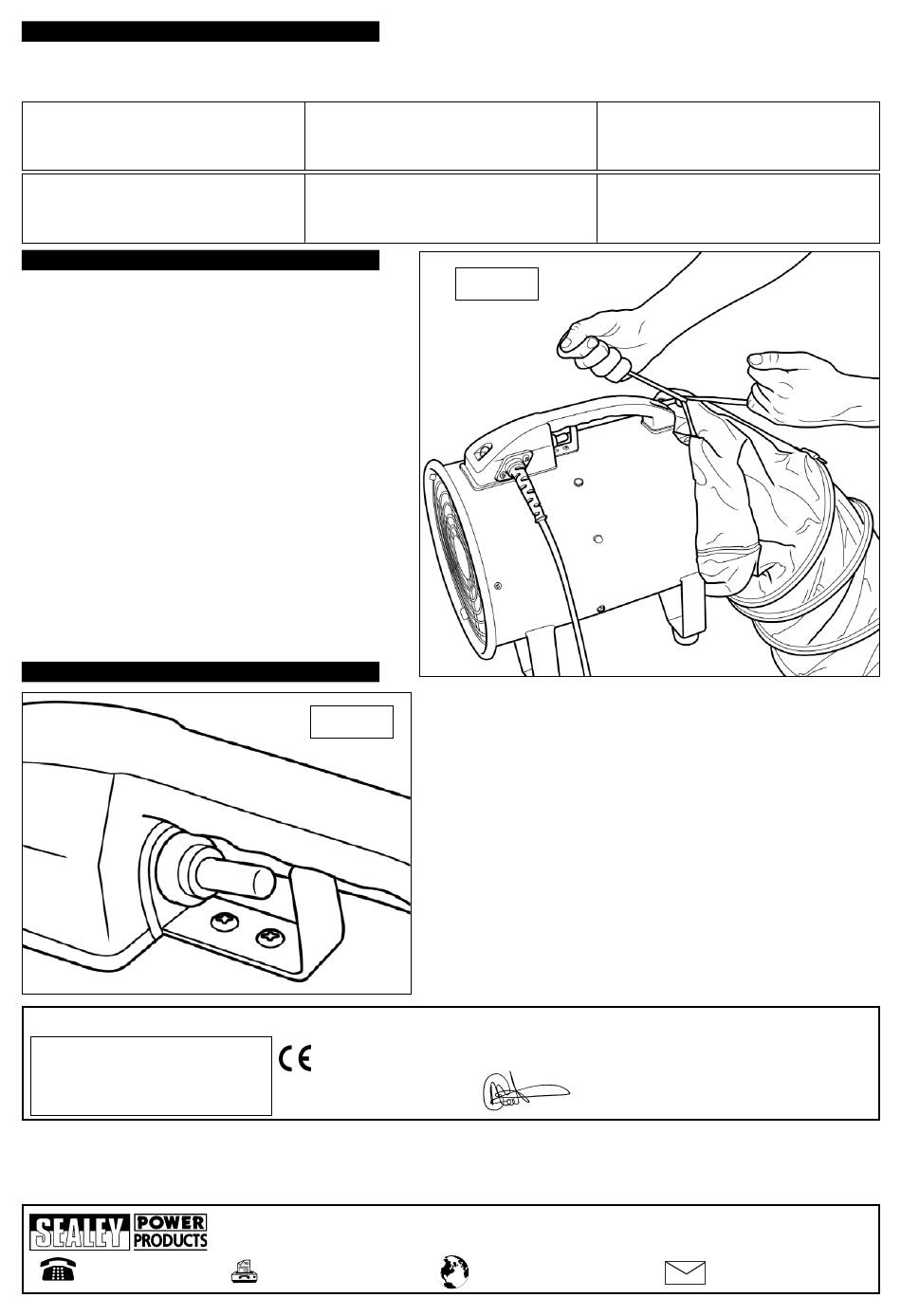

fig 1
4.1

OPERATING THE UNIT

4.1.1 Plug the mains socket into an adequate power supply.
4.1.2 Use the toggle switch (fig 2) to start/stop the unit.
