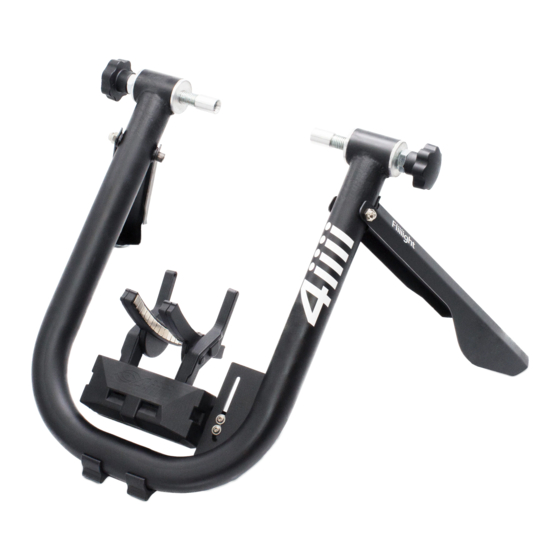

Fliiiight Upgrade Manual

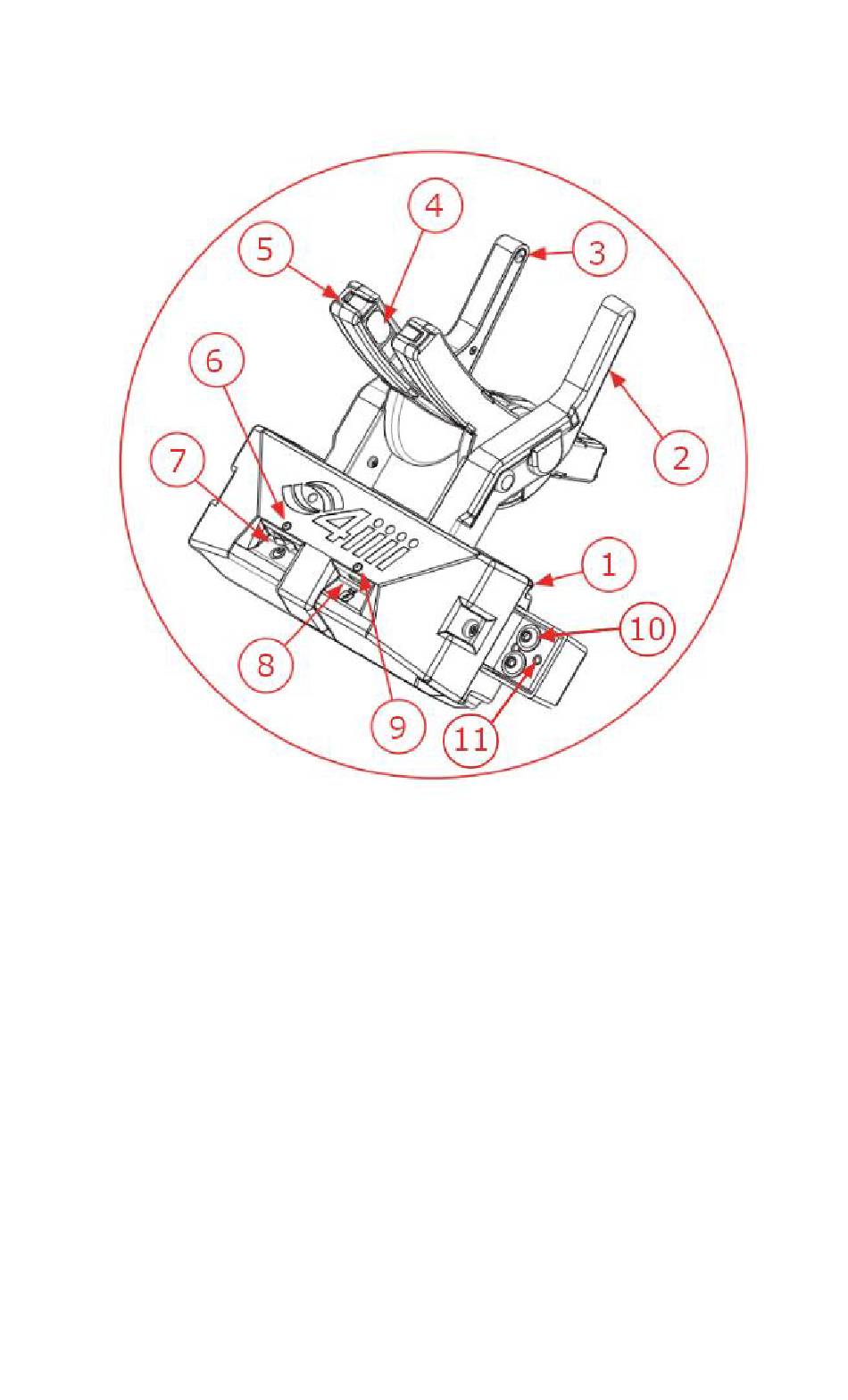

1.1 Resistance Unit:
1. Electronics case
2. Caliper arms
3. Speed sensor
4. Anti-wear stickers
5. Magnet array
6. Status light
1.2 Accessories:
1. Speed index
2. USB type C charging cable
3. 4mm Allen key
4. 3mm Allen key
7. Power switch
8. Charging port
9. Charging light
10. Mounting bolts
11. Set screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fliiiight and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 4iiii Fliiiight

Summary of Contents for 4iiii Fliiiight

  • Page 1 Fliiiight Upgrade Manual 1.1 Resistance Unit: 1. Electronics case 7. Power switch 2. Caliper arms 8. Charging port 3. Speed sensor 9. Charging light 4. Anti-wear stickers 10. Mounting bolts 5. Magnet array 11. Set screws 6. Status light 1.2 Accessories: 1.

  • Page 2: Table Of Contents

    5.0 Activate Fliiiight and Connect to an App 6.0 Fliiiight Best Practices 2.0 Introduction Congratulations on upgrading to Fliiiight! Please take the time to follow each step of the recommended upgrade procedure in order to get the most out of your trainer.

  • Page 3: Resistance Unit

    3. Use the position of your old resistance unit as your initial guide for mounting the new resistance unit. Attach your Fliiiight resistance unit to the frame, tightening the 2 mounting bolts enough to prevent any movement of the resistance unit until you...

  • Page 4: Install The Bike In The Trainer

    3.2 Install the bike in the trainer 1. Remove your STAC Zero wheel weights and spoke magnet from your bike. Install your STAC Zero trainer skewer. 2. Rotate the magnet arrays so they are parallel with the wheel rim. They should click into place. 3.
  • Page 5 Tip: To simplify installation, the Fliiiight resistance unit is designed to slide side-to-side, and center itself on the wheel. The wheel should be approximately center, but precise placement is not required.

  • Page 6: Magnet Alignment

    4.0 Magnet Alignment 1. With the bike installed in the trainer and the trainer off, slide the resistance unit over to one side, until the magnet array touches the wheel rim. Check that the magnets are level with the rim. Check from both sides.

  • Page 7: Concentricity

    4.2 Concentricity The magnet array should track the curve of the wheel when viewed from the side. If the front end of the magnet array is higher or lower on the rim than the rear end, it is not concentric. Concentric Non-Concentric Align for concentricity:...

  • Page 8: Parallelism

    4.3 Parallelism The space between the magnet array and your wheel rim should be even from the front of the magnet array to the back. Parallel Non-Parallel Align for parallelism: 1. Slightly loosen both mounting bolts. 2. Use the 3mm Allen Key to adjust one of two set screws to change the mounting angle.

  • Page 9: Activate Fliiiight And Connect To An App

    3. Flip the “ON” switch. The magnet arrays will close on your wheel in order to center themselves. Keep the wheel still until they release. 4. Connect with Fliiiight. Check the app’s support resources for assistance connecting with and navigating in your individual app.

  • Page 10: Fliiiight Best Practices

    4iiii app’s diagnostic tools to see feedback from Fliiiight’s sensors. Charging and storing Fliiiight o Fliiiight can be charged during, or between rides. Turn Fliiiight off when not in use. Do not operate or charge below 5°C (41°F). Do not store Fliiiight with a depleted battery.
