FOURSTEEL® - PRODUTOS EM INOX, LDA , AVEIRO , PORTUGAL
© Foursteel, Aveiro, 2020, all rights reserved

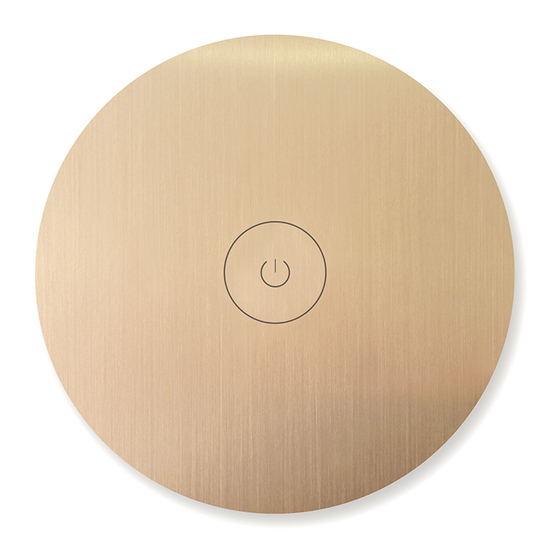

MIMOO SWITCH & MIMOO SWITCH ROUND
INSTALLATION INSTRUCTIONS
This product was developed to provide a simple, secure and comfortable usage.
These instructions must be taken into account for the correct use of the equipment.
REPAIR OF DAMAGES
In case of an emergency or damage, switch o the device and contact your reseller. Do not attempt
to repair the unit yourself, otherwise this will be considered as a breach of the warranty provisions.
GUARANTEE
The warranty for this product is 2 years on presentation of the corresponding invoice.
MAINTENANCE
When cleaning the radiator use a soft damp cloth only. Never use use soap-based detergents,
abrasive cleaners or detergents containing ammonia and other acids for cleaning and maintenance.
DISPOSAL OF THE EQUIPMENT
This product must be disposed of pursuant the valid legal provisions and separated from domestic
waste. Please dispose of this product by bringing it to your local
collection point or recycling centre of such equipment. Recycling contributes to reducing CO²
emissions and thus to the protection of the environment.
CONTACTS
www.foursteel.eu
geral@foursteel.eu
T. +351 234 111967 | +351 234 107263
Foursteel - Heating Products Factory
C.E.A. Zona Industrial de Mamodeiro
3810 - 783 Aveiro
Portugal
Advertisement
Related Manuals for FOURSTEEL MIMOO SWITCH
Summary of Contents for FOURSTEEL MIMOO SWITCH
- Page 1 FOURSTEEL® - PRODUTOS EM INOX, LDA , AVEIRO , PORTUGAL © Foursteel, Aveiro, 2020, all rights reserved MIMOO SWITCH & MIMOO SWITCH ROUND INSTALLATION INSTRUCTIONS This product was developed to provide a simple, secure and comfortable usage. These instructions must be taken into account for the correct use of the equipment.
- Page 2 BEFORE THE INSTALLATION Verify if you have the requested product. The placement of this product should respect the minimum safety distance (see g. 1). Bathtub or shower area 60 cm g 1 : minimum safety distance TECHNICAL CHARACTERISTICS SWITCH ON OFF power supply –...
- Page 3 INSTALLATION SCHEME ø74mm radiator 230V Make the hole in the wall to place the plastic Pass the cables from the radiator and the box for the switch. supply line. radiator 230V Place the electrical connectors on each cable to connect to the switch, according to the diagram above...
- Page 4 INSTALLATION SCHEME Screw the inner xing plate to the plastic box Align and support the outer cover with its previously installed on the wall. magnet to the inner plate xed to the wall.
