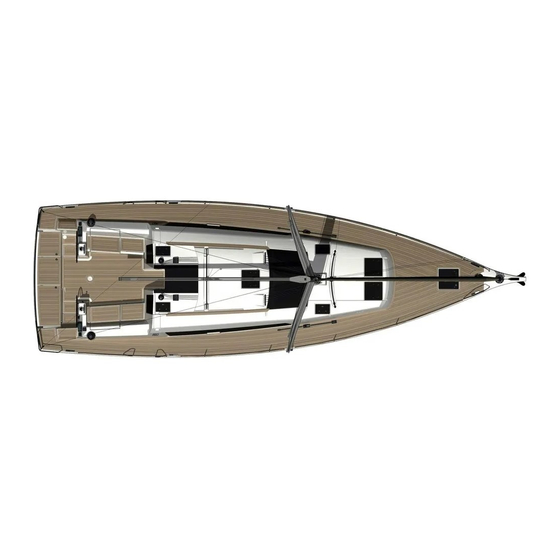

- Page 1 Operation Manual Fish n Chips Dufour 460 GL 2019...
-
Page 2: Table Of Contents
Operation Manual INTERIOR..........................4 Control Panel ........................4 Battery Charger Location ....................5 Interior Radio ........................6 VHF ........................... 9 GMDSS ..........................10 General Switches ......................10 Service / Engine ......................10 Thruster ........................10 Thermal Fuses ......................... 11 12V Control Panel / Bilge Pump / Vhf................11 Anchor fuse ......................... - Page 3 Entries Diesel ........................18 Chain marking ........................19 Sails ..........................20 Main ..........................20 Genoa ......................... 20 Σελίδα 3 από 20...
-
Page 4: Interior
INTERIOR Control Panel Yacht control panels are electronic devices for the remote control of one or more pieces of equipment including windlasses, navigation lights etc. These devices can control windlass, thrusters, navigation lights, alarms, video surveillance systems, windshield wipers, engines, fuel, water and oil levels, generators other... -
Page 5: Battery Charger Location
Battery Charger Location A battery charger or recharger is a device that stores energy in a battery by running an electric current through it. The Cristec Charger supplies a maximum capacity wherever you are via auto-ranging. You will find it at the stern right cabin behind the door. Σελίδα... -
Page 6: Interior Radio
Interior Radio Radio works by transmitting and receiving electromagnetic waves. The radio signal is an electronic current moving back and forth very quickly. A transmitter radiates this field outward via an antenna; a receiver then picks up the field and translates it to the sounds heard through the radio. - Page 7 Σελίδα 7 από 20...
- Page 8 Σελίδα 8 από 20...
-
Page 9: Vhf
A very high frequency (VHF) transceiver is a device that is composed of a transmitter and receiver that operates between 30 megahertz (MHz) to 300 megahertz (MHz). The wavelength of a VHF transceiver varies between 39.37 inches (1 m) to 393.70 inches (10 m), mainly depending on the frequency used. -
Page 10: Gmdss
GMDSS The Dual Energy Power Supplies and Battery Chargers are designed and developed for charging and maintenance of voltage on lead-acid batteries and provide consistent and uninterrupted power supply (main or backup). You will find it next to the chart table under the cushion. General Switches This battery master switch functions as a battery isolator and a theft deterrent device. -
Page 11: Thermal Fuses
Thermal Fuses Fuses are mechanisms that are inserted into an electrical circuit in order to interrupt the supply of electricity throughout the electrical installation or in individual circuits of the installation, when large current values occur due to short circuit or overload to protect the wiring lines. -
Page 12: Batteries Location
Batteries Location A battery is a device that stores chemical energy and converts it to electrical energy. The chemical reactions in a battery involve the flow of electrons from one material (electrode) to another, through an external circuit. The flow of electrons provides an electric current that can be used to do work. -
Page 13: Operation Of Toilet Pumps
A bilge pump is a water pump used to remove bilge water. On this yacht the bilge pump is automatic. So keep the bottom from control panel permanently open. Operation of toilet pumps The toilet is one of the most used pieces of equipment on your boat. Correct operation of the toilet is essential for the safety and comfort of your crew and craft. -
Page 14: Operation /Location Of Waste Tanks/Valves
When the bowl is empty, Open ( ) the Flush Control again, and continue to pump until all waste has either left the boat, or reached the holding tank (allow 7 complete up/down strokes per meter (yard) length of discharge pipework). -
Page 15: Oven/Stove/Bbq
Oven/Stove/BBQ: Operation of kitchen/BBQ In order to turn on the oven or a hob, press the respective switch inwards and turn clockwise. Without letting go light up the hob with a lighter and hold for 5 seconds, then release. If the flame does not hold try holding in the switch for longer. -
Page 16: Engine
Engine Emergency stop IN CASE OF EMERGENCY AND ONLY IN THIS CASE!!! If you need to turn off the engine, you will be directed in front of stairs to have a picture of the engine as in the photo. If you want to turn it off, you will press continuously the button down, which write stop, until the engine stops. -
Page 17: Exterior
EXTERIOR Engine Controller How to turn on your engine? You press continuously the on/off, and then you press the start continuously until the engine stars. How turn off your engine? You press continuously the stop, and then you press continuously the on/off. Autopilot Operation Σελίδα... -
Page 18: Outboard
Outboard How to start the outboard: 1. Make sure there is plenty of gasoline/petrol in the outboard fuel tanks. 2. Open the fuel valve. 3. Open the air from the top. 4. Set the outboard to neutral. 5. Place your ignition key. 6. - Page 19 Chain marking The boat has approximately 80 meters chain total. Every ten (10m) meters the chain marked with colors as follows: 10 meters White. 20 meters Blue. 30 meters Green. 40 meters Yellow. 50 meters Red. The last 10 meters are painted with full Red and secured with Rope. ATTENTION 1.
- Page 20 Sails Main On this yacht you have furling main sail, which means when you want to open the main sail you must release the furling rope you will take out the outhaul. This procedure must be simultaneously. If you want to close the main sail you must release the outhaul then you will take the furling ropes.
