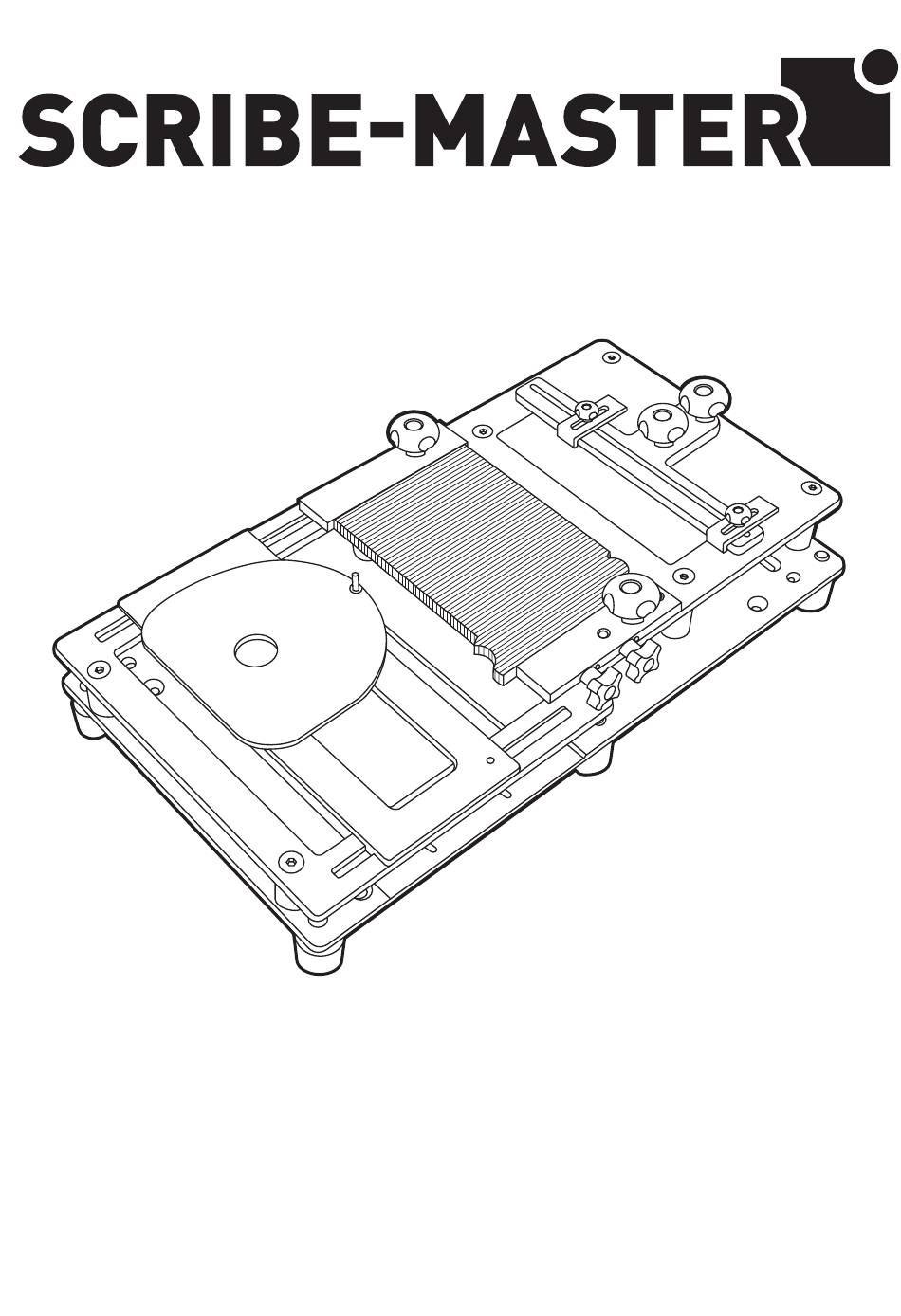

- Page 1 MODEL:PRO WWW.SCRIBEMASTER.COM...
-
Page 2: Table Of Contents
Instructions!! U.K. Dear Customer TECHNICAL DATA Thank-you for purchasing your Scribe-Master jig. Cutter size! ! 4x40x100mm It has taken years of product development, we hope you enjoy many years of productive use. Guide Bush size! 30mm* CONTENTS Weight! 5.92kg TECHNICAL DATA!! -
Page 3: Safety
Instructions!! U.K. 4. Do not use power tools in the rain or in wet SAFETY conditions. 5. Keep children and other visitors away whilst operating any power tool. Do not let them touch or operate any tools or attachments. You can loose control and injure yourself or WARNING: bystanders if distracted. - Page 4 Instructions!! U.K. 14. Only use accessories approved and 22. Never leave power tool running unattended. recommended by the manufacturer. Do not move or leave a power tool until it has come to a complete stop. 15. Always check the condition of any cutters before use.
- Page 5 9. Always keep the router base plate firmly in 20. Do not over tighten the collet nut, this should contact with the Scribe-Master jig base plate when cutting. be hand tightened with the spanner provided by the manufacturer, no extension or extra force should be used.
-
Page 6: Box Contents
Instructions!! U.K. IMPORTANT INFORMATION! RESIDUAL RISK Although the operating manuals and safety instructions for all power tools and accessories/ attachments contain detailed instructions on how to operate them safely. Using all power tools and their corresponding accessories and attachments involves a certain residual risk which cannot be completely avoided by safety mechanisms. -
Page 7: Parts List
The carry case is specifically designed for 19. Material lock down bolt with swivel foot & nut maximum protection and ease of transportation 20. Roller stop knob for the Scribe-Master PRO. (Feet need to be 21. Roller stop nut removed for transportation) 22. Roller stop washer 23. -
Page 8: Jig Overview & Setup Position
Instructions!! U.K. SCRIBE-MASTER PRO JIG OVERVIEW & SETUP POSITION Comb% Set%Out% Split%Out%Block% Back%Cut% Locking%Knobs% Rear%Material%Slide% Channel% Retaining%Guide% Marker% Router%Base%Plate% Lock%Down%Knobs% Rear%Material% Rear%Material% Comb%Assembly% Slide% Le#er%Box%Slide% Slide%Stops%&%Knobs% Lock%Down%Knobs% Combs% Roller&Stop&Slides& Feet&... -
Page 9: Jig In Cut Position
Instructions!! U.K. SCRIBE-MASTER PRO CUTTING POSITION Back&Cut& Rear&Material&Slide& Material&Lock& Marker& Split&Out&Block& In&Cu6ng&Posi:on& Down&Nut& Work&Piece& Comb&Sec:on& In&Cu6ng&Posi:on&... -
Page 10: Setting The Jig Up
Instructions!! U.K. SETTING UP THE JIG REMOVE THE SCRIBE MASTER PRO FROM THE PACKAGING • CHECK THAT THERE IS NO DAMAGE OR IMPERFECTION ON YOUR NEW JIG. • CHECK THAT ALL THE COMPONENTS ARE ENCLOSED. USING THE ITEMS ENCLOSED LIST. - Page 11 Instructions!! U.K. FITTING THE SPLIT OUT BLOCK • PREPARE A PIECE OF TIMBER (SIZE 150-170mm x 25-30mm x 30-40mm) • PUSH THE TIMBER UP TIGHT TO THE SPLIT OUT BLOCK RETAINING GUIDE. • SCREW SECURELY INTO PLACE. (USE SREWS PROVIDED 5x30mm) •...
- Page 12 Instructions!! U.K. SETTING UP THE WORK PIECE IN THE REAR MATERIAL SLIDE • CUT AN OFF-CUT FROM THE WORK PIECE TO BE SCRIBED. THIS SHOULD BE A SQUARE CUT. THE SIZE OF THE OFF CUT SHOULD BE A SIZE THE OPERATOR FEELS COMFORTABLE WITH.
- Page 13 Instructions!! U.K. ALIGNING THE COMBS AND COMB ASSEMBLY • ENSURE THE COMB ASSEMBLY IS IN THE SET-UP POSITION. (THE COMB ASSEMBLY WILL UNDERLINE THE WORDS “SET-UP” MARKED ON THE TOP PLATE.) • THE UPPERMOST LOCK DOWN BOLT SHOULD BE TIGHTENED WHILST THE LOWER SHOULD BE LEFT SLIGHTLY LOOSE, THIS ALLOWS THE COMBS TO BE TIGHTENED.
-
Page 14: Cutting The Work Piece
Instructions!! U.K. CUTTING THE WORK PIECE MOVING THE COMBS TO THE CUTTING POSITION • TO REMOVE THE OFF CUT OF THE WORK PIECE FROM THE REAR MATERIAL SLIDE. UNDO THE FRONT LOCK DOWN KNOB FROM THE REAR MATERIAL SLIDE AND LIFT OUT. - Page 15 Instructions!! U.K. ADDING THE WORK PIECE • SLIDE THE WORK PIECE IN BETWEEN THE TOP PLATE AND THE BASE PLATE. • ENSURE THAT THE MOST INTRICATE PART OF THE MOULDING IS TOUCHING THE SPACERS (OPPOSITE SIDE TO THE ROLLER STOPS) & THE SPLIT OUT BLOCK . WITH THE BACK OF THE WORK PIECE TOUCHING THE BASE PLATE RUBBER STRIPS.
- Page 16 Instructions!! U.K. • THE ROUTER MUST BE SET SO THAT THE DEPTH OF CUT CLEARS THE BOTTOM OF THE WORK PIECE BY 2mm • MOVE THE ROUTER BASEPLATE TO THE LEFT HAND SIDE AND ENGAGE THE GUIDE PIN AGAINST THE RUN IN PART OF THE COMBS (SET BY THE REAR MATERIAL GUIDE STOPS) •...
-
Page 17: Maintenance
Instructions!! U.K. MAINTENANCE • KEEP THE JIG AWAY FROM DIRECT MOISTURE • CLEAN THE JIG THOROUGHLY AFTER USE • ENSURE THE COMBS ARE SECURE WHEN TRANSPORTING THE JIG • REMOVE THE FEET BEFORE PUTTING IN THE BAG. (TO ENSURE NO DAMAGE TO JIG DURING TRANSPORT) •... -
Page 18: Warranty Information
Scribemaster Ltd. This limited warranty applies only to this Guarantee with respect to the jig will be limited to Scribe-Master Pro Jig sold either directly or via the countries where the product has been initially authorised resellers. Scribe-Master guarantees marketed. -
Page 19: Notes
Instructions!! U.K. NOTES:... - Page 20 Scribemaster Ltd. Unit13, Poulton Close Business Centre Dover, CT17 0HL England Tel: 0044 (0)1304 204050 info@scribemaster.com www.scribemaster.com 799439 041240 >...
