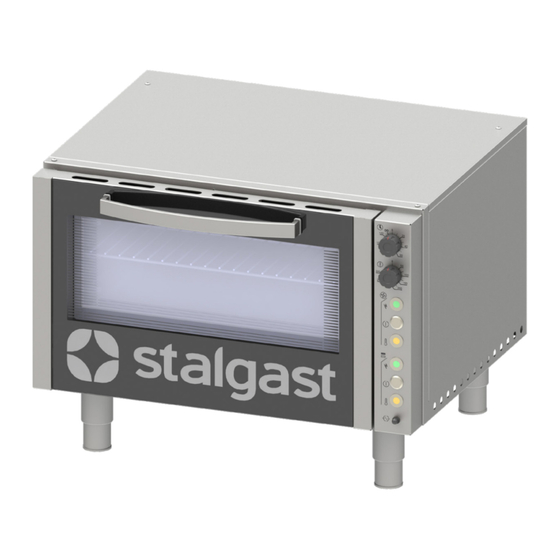

- Page 1 Multi-funcional electrical oven 965001 v.1-11.2019 · User manual - translation of the original manual · Stalgast Radom Sp. z o.o. Plac Konesera 9, Budynek O, 03-736 Warszawa tel.: 22 517 15 75 fax: 22 517 15 77 www.stalgast.com email: stalgast@stalgast.com...
- Page 2 Fig 1 Fig 2...
- Page 3 Thank you for purchasing our product. Please read this manual carefully before using it for the first time. In order to provide you with the best technical solutions for your devices, we are constantly developing them technologically. Therefore, the pictures and drawings in this manual may differ from the device you have purchased.
- Page 4 • Any repairs to the unit must be carried out by qualified technical personnel only (technical service). 3. TECHNICAL DATA 3.1. Equipment of the device (page 2 Fig. 2): 1 - Appliance housing, 2 - Door, 3 - Oven door handle, 4- Control panel, Model 965001 External dimensions (mm) 800x640x600 Power (W) 6540...
- Page 5 To connect the unit to an electrical equipotential bonding system: • unscrew the nut on the screw • insert the equipotential bonding wire • Screw the nut back on as far as it will go • Connect the other end of the equipotential bonding conductor to the equipotential bonding rail. Fig.
- Page 6 • connect the device to a power source 5.1. Control Panel 1. Control thermostat 2. Time switch 3. Green light indicating the start of the thermo-circulation program 4. Thermo-circulation switch 5. Orange indicator light for thermo-circulation heating 6. Lamp indicating that the top heater is on 7.
- Page 7 Do not move the unit: • when the power cord is plugged into an outlet, • when dishes or other objects are placed on the unit, • and other situations that pose a threat to the health or life of the operator 5.3.
- Page 8 Once a year the device should be inspected by the technical service in order to check the degree of wear and to identify possible faults of the components and parts of the device If any malfunction is detected, you must report it to a qualified service technician for assistance in removing the malfunction.
