AVLink 12S-104 User Manual

12G-SDI
Distribution
Amplifier
(12S-104)
1 In 4 Out
(12S-108)
1 In 8 Out
U M
SER ANUAL
12S-104 / 12S-108
Package Contents-

1 12S-104 or 12S-108

1 user manual

1 power adapter DC 12V with lock

4 foot pads

2 screws
Any thing missed, please contact with your vendor.

Introduction

Through the 12G-SDI/SDI Distribution Amplifier, you can
use one image source to more TV/displays. Featuring
four/eight separately buffered 12G-SDI/SDI outputs, all
products in this series provides automatic cable
equalization to 75Meters and automatically adapts to
different data rate.
12S-104/12S-108 is ideal for:
 4K TV / Monitor production line
 4K SDI image input devices
 Image transmission devices

Features

 Compliant with SMPTE 2082-1, 2081-1, 424M, 292M,
344M, 259M and DVB-ASI.
 SD/HD/3G/6G/12G-SDI Input Auto Detect data rate with
multi color Lock LED Indicator.
 SD/HD/3G/6G/12G-SDI Input signal quality with flash
light Lock LED Indicator.
 Micro USB Interface for user firmware update.
 DIP SW Control SDI OUT 1&2,3&4 output switch and
fine-tuning output Swing (for 12S-104).
 DIP SW Control SDI OUT 1&2,3&4,5&6,7&8 output
switch and fine-tuning output swing (for 12S-108).
 Inter-locked power plug for DC supply stably.

Specifications

Function
Input serial digital BNC
connector
Output serial digital BNC
connector
V1.0
BNC impedance
Micro USB
Max. Resolution
Operation Temperature
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)mm

12S-104/12S-108 FRONT VIEW

1. Micro USB
2. Lock LED
3. DIP SW
4. Power LED
5. Power Jack

12S-104 REAR VIEW

1. SDI OUTPUT 4
2. SDI OUTPUT 3
3. SDI OUTPUT 2
4. SDI OUTPUT 1
5. SDI INPUT

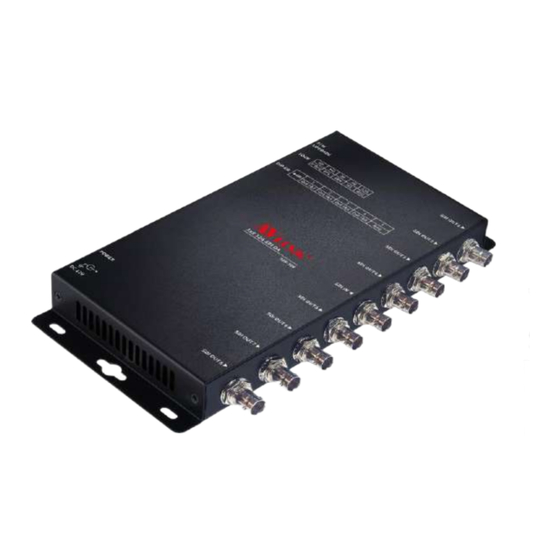

12S-108 REAR VIEW

12S-104 12S-108
1. SDI OUTPUT 8
1
2. SDI OUTPUT 7
3. SDI OUTPUT 6
4 8
4. SDI OUTPUT 5
5. SDI INPUT
75Ω
6. SDI OUTPUT 4
1
7. SDI OUTOUT 3
8. SDI OUTPUT 2
UHD, 4K@60
9. SDI OUTPUT 1
0℃~40℃{32℉~104℉}

Installation

DC 12V with lock
Metal
Before the installation, making sure the 12S-104 signal
316g 723g
source and receivers are turning off.
150x75x25 240x114x25
1. Plug the monitor cable into the SDI OUT port
-1-
1 2 3
1 2 3
1 2 3 4 5 6
connector.
-2-
4 5
4 5
7 8 9
