Summary of Contents for AVLink CS-2018
-

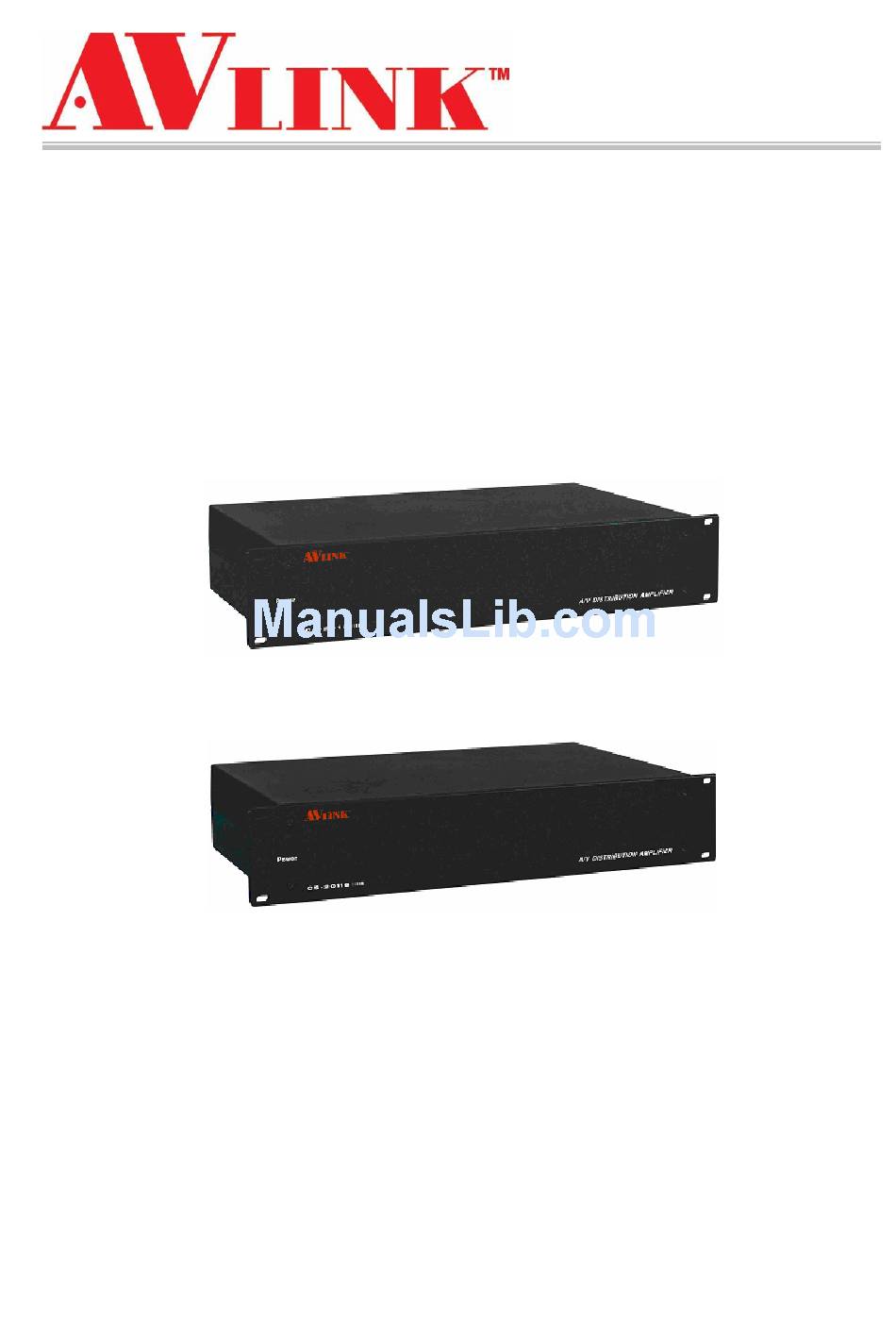

Page 1: User Manual
User Manual CS-2018 CS-20116 CS Series Audio/Video Distribution Amplifier... - Page 2 CS Series Audio/Video Distribution Amplifier—User Manual Before You Use the System 1、Read manual——Carefully read the manual before you use the system. 2、Installation environment——The system should be installed indoor only. Install either on a sturday rack or desk in a well-ventilated place. 3、Lightning——Unplug the power cord during lightning or after a prolonged period of non-use to avoid damage to the equipment.
-
Page 3: Table Of Contents
5.1 Video ..........................5 5.2 Audio ..........................5 6.0 Front/Rear Panel View ......................6 6.1 Front Panel View .......................6 6.2 Rear Panel View ........................6 7.0 Installation Steps ........................7 8.0 CS-2018 Distribution Amplifier and Peripheral Equipment Connection........7 9.0 Serial Connection Operation .....................8 10.0 FAQ ............................9... -
Page 4: Audio/Video Distribution Amplifier Overview
1.0 Audio/Video Distribution Amplifier Overview 1.1 CS Series Audio/Video Distribution Amplifier The CS-2018/CS-20116 is an 8/16 output connectors RCA distribution amplifier with 1 video and 1 pair of audio RCA female input connectors and 8/16 video and 8/16 pairs of audio RCA female output connectors. -
Page 5: Contents Of Package
Please check with your distributor in case of missing parts. 2.0 Product Description: CS-2018 or CS-20116 distribution amplifier: 1 pair of audio and 1 video RCA female input connector, 8/16 pairs of audio and 8/16 video RCA female output connectors. -
Page 6: Product Specifications
Length of extension: maximum 35 meters Signal type: Composite Video Signals Input connector: 1 RCA female connector 5.2 Audio Working frequency: 20Hz—20KHz Input impedance: >10KΩ Input connector: 1 pair (R,L) RCA female connectors Function CS-2018 CS-20116 Type Composite Video Input Impedance 75Ω Video Input Connector... -
Page 7: Front/Rear Panel View
6.0 Front/Rear Panel View 6.1 Front Panel View Figure 6-1 1. LED power indicator. 6.2 Rear Panel View Figure 6-2 2. Input AC power plug NOTE: CS-2018 has 8 sets of output connectors. CS-20116 has 16 sets of output connectors. -
Page 8: Installation Steps
2. Use the audio/video extension cord to connect the RCA female input connectors of the CS-2018 or CS-20116 audio/video distribution amplifiers to the DVD player. 3. Use the audio/video extension cord to connect the RCA female output connectors of the CS-2018 or CS-20116 audio/video distributin amplifiers to the TV/HDTV. -
Page 9: Serial Connection Operation
1. To display video on multiple TV/HDTVs you have to serially connect another distribution amplifier. 2. Use the audio/video extension cord to connect to any RCA female output connector of the front CS-2018/20116 audio/video distribution amplifier to the RCA female input connector of the rear CS-2018/20116 audio/video distribution amplifier. NOTE: You are recommended not to connect too many distribution amplifiers because video transmission will become unstable. -
Page 10: Faq
CS Series Audio/Video Distribution Amplifier—User Manual 10.0 FAQ 1．What should I do if the distribution amplifier fails to display or the display color is abnormal after hot plug? Answer: The internal switching of the distribution amplifier is carried out by IC chips. There is an electric potential difference between the input signal equipment and the distribution amplifier.
