source moves directly towards to or away from the sensor and not
across, the detection range will be relatively reduced (refer to
Fig.1C) .

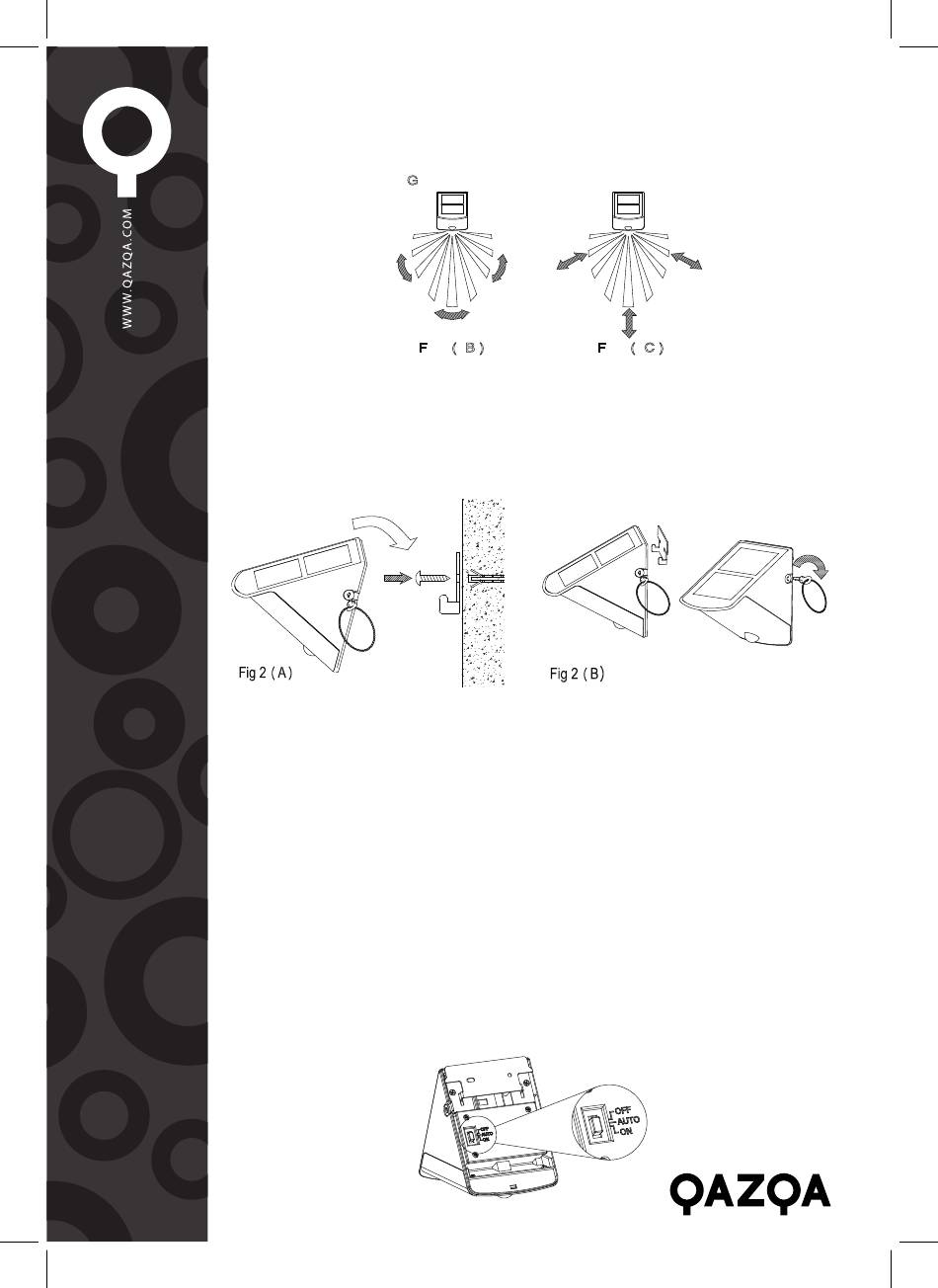

INSTALLATION STEPS
1．Drill two holes on wall where you want the light be mounted on
and put the plastic plugs into wall holes. Then Mount the mount
plate by screws (refer to Fig 2 A)
2．Fix the light on the wall plate and lock it by turning the key.
Remove the key and keep it for future use. (refer to Fig 2 A)
OPERATION
1. Mount the light on place where it can get max. DIRECT SUNLIGHT
in daytime. The inside batteries are charged by solar cell. The
more direct sunlight solar cell receives in daytime, the longer the
light will run. It is better to charge the solar cell in sunlight for up
to one day before switching on it, so that the light can work with a
full charge.
2. Modes of slide switch:
AUTO: Normal work automatically
ON: Constantly light on as emergency lamp
OFF: Power off for storage and long time charging
G ood Detecting
Not Good Detecting
F ig 1 ( B ) F ig 1 ( C )
