INSTRUCTION MANUAL
220-240 V~
50Hz
SMD LED
2x5.4W
Cascada WL
98697/98698/105240
1.
3.
INPUT:220-240V~
2
Overall Sizes:

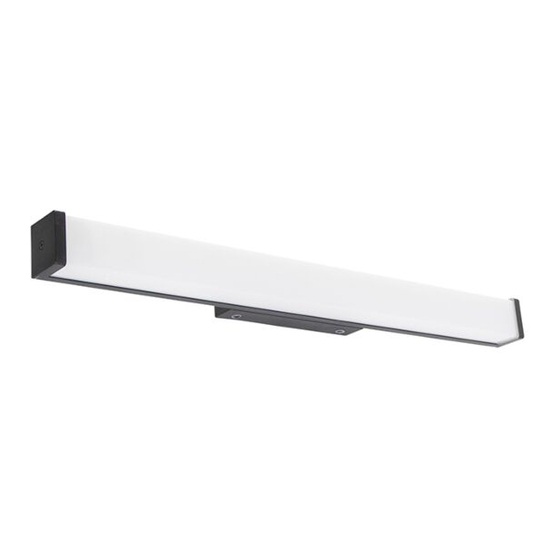

Wall lamp
incl. 2x LED QL7001025
2x 700lm Module
950lm Lamp
2x 5.4W LED Module
12W Lamp
220-240V~50Hz
3000K
CRI>80
25000 h
15000 ON/OFF
FittinQ B.V.
Smaragdweg 52, 5527 LB Hapert, The Netherlands
www.qazqa.nl
IP44
2.
1
L
N
3
Cascada WL 62(LED 2x5.4W)
1
2
3
4.
185mm
620mm
50mm
Advertisement
Table of Contents
Related Manuals for Qazqa Cascada WL 98697
Summary of Contents for Qazqa Cascada WL 98697
- Page 1 Cascada WL 62(LED 2x5.4W) Wall lamp incl. 2x LED QL7001025 2x 700lm Module 185mm 50mm 950lm Lamp 620mm 2x 5.4W LED Module 12W Lamp 220-240V~50Hz 3000K CRI>80 25000 h 15000 ON/OFF FittinQ B.V. Smaragdweg 52, 5527 LB Hapert, The Netherlands www.qazqa.nl...
- Page 2 (ES) Dispositivo de control sustituible por un profesional. (CZ) Vyměnitelný předřadník odborníkem. (PT) Dispositivo de controlo substituível por um profissional. (GR) Ο εξοπλισμός ελέγχου να αντικαθίσταται από επαγγελματία. (SK) Predradník vymeniteľný prostredníctvom odborníka. FittinQ B.V. Smaragdweg 52, 5527 LB Hapert, The Netherlands www.qazqa.nl...
- Page 3 This luminaire cannot be disposed together with normal domestic waste in standard rubbish can, but you have to bring it to a staging area for electrical waste 11.Take note of the symbols when connecting wires: FittinQ B.V. Smaragdweg 52, 5527 LB Hapert, The Netherlands www.qazqa.nl...
