• Operating Instructions • Warning Information
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900 RPM
Orbital Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5/32" MM
Pad Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8"
Air Inlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPTF
Min. Air Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" ID
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . 90 PSI
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5"
Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 LBS.
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4CFM
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
MT1787
• Parts Breakdown
S P E C I F I C A T I O N S
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
MT1787
1
MT1787

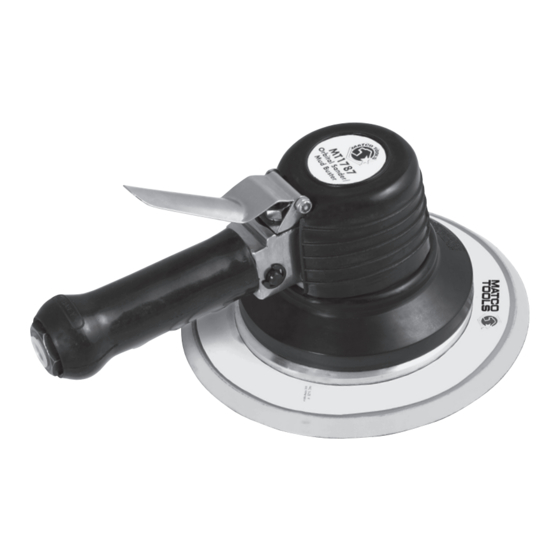

Orbital Sander/
Mud Buster
Rev. 06/02/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT1787 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matco Tools MT1787

  • Page 1 S P E C I F I C A T I O N S MT1787 Max. Free Speed ......900 RPM Orbital Stroke .
  • Page 2 MT1787 Orbital Sander/Mud Buster MT1787 Orbital Sander/Mud Buster FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY THIS INSTRUCTION MANUAL CONTAINS or loose hoses and fittings, and replace immediately. IMPORTANT SAFETY INFORMATION. Do not use quick detach couplings at tool. See instructions for correct set-up.
  • Page 3 MT1787 Orbital Sander/Mud Buster MT1787 Orbital Sander/Mud Buster FEATURES • Excellent orbital action for blending, shaping and smoothing body filler on most surfaces. • Large 8" circular pad quickly and easily cuts all surface materials even on larger areas. • Insulated, sure-grip handle conveniently features an automatic release throttle for safe, sure control.
  • Page 4 MT1787 Orbital Sander/Mud Buster MT1787 Orbital Sander/Mud Buster ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. RS646101 Motor Housing (including #3) RS648305 Rotor Shaft RS646103 Motor Housing Shield RSK29135 Rotor Key Handle Shield (included with #1) RSWW6200 Wave Washer...
