SIS Nextometer User Manual

1. Device Description

Nextometer is a device to help maintain social distancing. If worn, it produces acoustic and visual alerts as well as vibration if
another device is detected within the set range.
The device does not detect the position of the wearer in any way. The only data stored by the same (identification number
and time track of the interactions) have a totally anonymous form.

Kit Contents

•
1pc. Nextometer device
• 1pc. Armband
•
1pc. Lanyard
•
1pc. A Type USB / Micro USB 0,5m

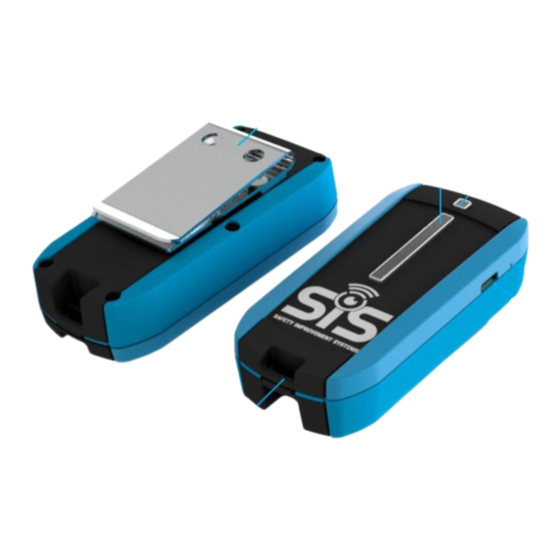

2. Main Elements

3. Wearability

Arm
Nextometer can be worn on the arm
through the adjustable elastic band. The
device can be easily separated from the
armband for cleaning
operations

4. Switching Device ON

First Use
It is in general advisable to fully recharge the device. Connect the turned OFF device to a power source through the provided
Micro USB cable. Once this step has been carried out, the multifunction button (2) will start flashing red every 10 seconds, thus
indicating the state of charge in progress of the device. When the unit is at full charge the button (2) will provide be brightly lit and
all green. Once this condition is reached the system can be switched ON by keeping the multifunction button (2) pressed until a
sound is emitted. Device will provide a flashing green indication and will be ready to use.
User Manual (ENG) – R03 2020.11.13
Nextometer can be worn around the
neck through the lanyard. The device can
be easily separated from the lanyard for
/ sanitizing cleaning / sanitizing operations
Nextometer – User Manual (ENG) - R03 2020.11.13

Technical Features

•
Dimensions: 90mm x 44mm x 29mm
• Weight: 90g
•
Technology: Ultra Wide Band
•
Frequency: 6.5GHz (Channel 5)
•
Battery capacity: 800mA
•
Battery duration: 8h (medium estimated value)
1. Risk Indicator (immediate and statistic)
2. Multifunctional button
3. Micro USB Port
4. Reset Button
5. Armband/Belt clip
6. Lanyard eyelet
Neck
Nextometer can be directly worn on the
belt through the integrated clip on the
back.
EN
Belt
