Version 1.1 March 2022
BLIZZARD-manual-EN-1.1 March 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLIZZARD and is the answer not in the manual?

Questions and answers

Related Manuals for BGD BLIZZARD

Summary of Contents for BGD BLIZZARD

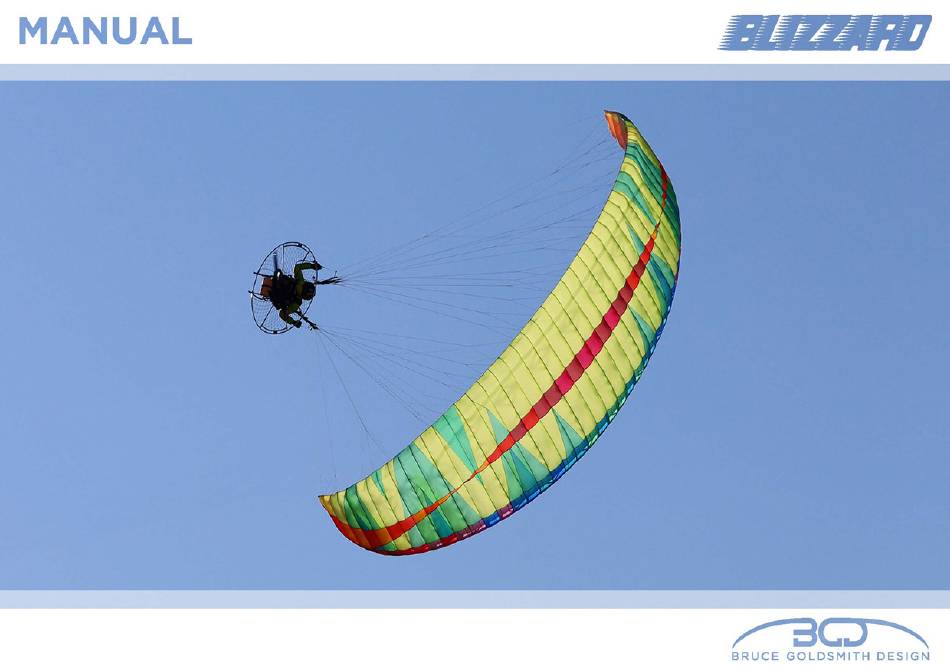

  • Page 1 Version 1.1 March 2022 BLIZZARD-manual-EN-1.1 March 2022...

  • Page 2: Table Of Contents

    Contents Contents Welcome ............. Precautions............Preparation ............Riser diagram..........Flight Characteristics........Recovery Techniques ........Maintenance............Technical Data ..........Materials ............Specifications..........Overview of glider parts......Line Plan............Line length checks........Service record........... Owner records..........Closing words............ BLIZZARD-manual-EN-1.1 March 2022...

  • Page 3: Welcome

    The Blizzard flies equally well with a trike or with foot launch. In fact all the DGAC flight tests for the size 29 were done at the maximum weight, with a trike.

  • Page 4: Precautions

    Warranty In order to benefit from the BGD warranty, you are required to complete the warranty form on the website. It is your dealer’s responsibility to test fly a new paraglider before you receive it. Failure to test-fly a new paraglider may invalidate the warranty.

  • Page 5: Preparation

    Preparation Riser set-up risers on the Blizzard can be adapted to the height of the hangpoints of your paramotor frame/harness. For a paramotor with low hangpoints the standard positions can be used for the brake attachment and the TST line as shown in the riser image on the following page.

  • Page 6: Riser Diagram

    Preparation Blizzard risers Trimmer Brake line Brake-line pulley A’ A riser Friction ring Brake-line swivel Tip Steering line Brake handle Tip Steering handle (TST) Tip steering TST system Roller cam Accelerator system Trimmer Brummel hook Trimmer handle BLIZZARD-manual-EN-1.1 March 2022...
  • Page 7 By starting from the harness and running towards the canopy remove any tangles or twists in the lines. Partially inflating the canopy in the wind will help to sort out the lines. 3. It is particularly important that the brakes are clear and free to move. Check the knot which attaches the BLIZZARD-manual-EN-1.1 March 2022...
  • Page 8 Take care to protect yourself and other people from the propeller. Always start your motor up at a safe distance away from other people. The blades can pick up and fire out debris which could injure people several metres away. Remember there are inherent risks with petrol, oil and volatile or flammable materials. BLIZZARD-manual-EN-1.1 March 2022...

  • Page 9: Flight Characteristics

    Your paraglider is easy to inflate in light or stronger winds and will quickly rise overhead to the flying position. The best inflation technique is to hold one A-riser in each hand. It is best to launch with the trimmers set to the first position (see diagram on p6). BLIZZARD-manual-EN-1.1 March 2022...
  • Page 10 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 11 The Blizzard has roller-cam trimmers, which are smooth to operate and reduce wear on the webbing. Nonetheless, it is important to regularly check the wear on the trimmers and that the system is functioning cleanly with no sticking points.
  • Page 12 If the air is smooth the wing does not need much input from the pilot, but in turbulent air a continual action of the pilot on the brakes and in the harness is BLIZZARD-manual-EN-1.1 March 2022...
  • Page 13 It is usually better to release the B-risers fairly quickly rather than slowly, as doing so slowly may result in the canopy entering deep stall. Always release the risers symmetrically, as an asymmetric release from a B-line stall may cause the glider to enter a spin. BLIZZARD-manual-EN-1.1 March 2022...
  • Page 14 BGD gliders are designed and tested to recover automatically from normal spirals with a descent rate inferior to 16 m/s, without pilot input. If the pilot increases the descent rate of the spiral to over 16 m/s or initiates what is known as an over-the-nose spiral, the glider may require pilot input to recover.

  • Page 15: Recovery Techniques

    Recovery from deep stall is quite simple: The normal method is to simply initiate a mild turn. As the canopy starts to turn it will automatically revert to normal flight, but it is important not to turn too fast as this could induce a spin. BLIZZARD-manual-EN-1.1 March 2022...
  • Page 16 The act of controlling the direction will tend to reinflate the wing. However, with more persistent collapses it may be necessary to pump the brake on the BLIZZARD-manual-EN-1.1 March 2022...
  • Page 17 Loss of brakes In the unlikely event of a brake line snapping in flight or a handle becoming detached, the glider can be flown by gently pulling the rear risers for directional control. BLIZZARD-manual-EN-1.1 March 2022...

  • Page 18: Maintenance

    Small tears in the top or bottom surface (not normally the ribs) of a canopy can be repaired with a patch of self- adhesive ripstop nylon. Tears of up to 100mm can be repaired in this way providing they are not in a high-stress area. BLIZZARD-manual-EN-1.1 March 2022...
  • Page 19 You can identify the line(s) you need to replace from the line layout diagram for your wing. Download the latest version here: https://tinyurl.com/BGDlines Replacement lines can be ordered from the Accessories section of the BGD website. Check that the lines you have received correspond with the line layout diagram, and that this matches the line layout of your wing.
  • Page 20 Lines should be symmetrically placed on the tab, except where the tab is inclined. The A tabs are inclined backwards on all BGD gliders, to align with the direction of pull of the line. So when assembling the lines, the A tabs should be angled back, and the B, C and D tabs should be perpendicular to the undersurface.
  • Page 21 Sheathed lines have no additional reinforcement and can be mounted either way up Yellow thread marks the reinforced end of a microline yellow thread White thread marks the non-reinforced end of a microline white thread Not Reinforced Reinforced Reinforced Not Reinforced BLIZZARD-manual-EN-1.1 March 2022...
  • Page 22 Lines are connected to other lines or to tabs with lark’s foot junctions. Make sure these are joined correctly with an interlocked junction and not a looped junction. Interlocked junction – correct Looped junction – incorrect Interlocked junction – correct Looped junction – incorrect BLIZZARD-manual-EN-1.1 March 2022...
  • Page 23 The manufacturer will only accept responsibility for paraglider lines and repairs which we have produced and fitted or repaired ourselves. If you are concerned about any aspect of the integrity of your paraglider please contact your nearest BGD dealer or talk to BGD directly.

  • Page 24: Technical Data

    Brakes Liros DSL 70 (upper / middle), 110 (Lower) Brake Line KL1 Liros DSL350 Spare parts can be obtained directly from BGD or though our network of registered BGD repair shops. For a full list check www.flybgd.com BLIZZARD-manual-EN-1.1 March 2022...

  • Page 25: Specifications

    Central chord (m) Flat span (m) 10.0 10.7 11.4 12.0 Projected span (m) Weight range PPG (kg) 60-120 70-130 85-160 100-200 Minimum speed (km/h) Trim speed (km/h) 37-47 37-47 37-47 37-47 Top speed (km/h) Certification DGAC DGAC DGAC DGAC BLIZZARD-manual-EN-1.1 March 2022...

  • Page 26: Overview Of Glider Parts

    Technical data Overview of glider parts Leading edge Trailing edge Cell openings Upper lines Mid lines Lower lines Brake lines Risers Harness Paramotor BLIZZARD-manual-EN-1.1 March 2022...

  • Page 27: Line Plan

    Technical data Line Plan BLIZZARD-manual-EN-1.1 March 2022...

  • Page 28: Line Length Checks

    All measures are in mm, with 50N line tension, this tension being slowly and gradually applied before taking the measurement. The lengths are measured from the lower surface of the canopy and include the risers and maillons. BLIZZARD-manual-EN-1.1 March 2022...
  • Page 29 6011 6079 5774 5966 5883 5956 6049 6105 5856 5924 5859 5936 5981 5790 5876 5819 5899 5941 5733 5821 5783 5866 5903 5703 5737 5723 5816 5855 5752 5558 5537 5577 5648 5443 5436 5499 5395 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 30 2249 2043 1533 2127 1789 1384 1073 2160 1804 1407 3919 1323 1080 CMU1 3981 1621 1459 CMU2 CMU3 4814 2863 CMU4 2855 2787 3116 2686 2903 2893 3565 2742 2540 3777 3726 2037 1119 1250 3190 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 31 6452 6525 6234 6395 6310 6394 6493 6552 6324 6353 6288 6375 6423 6253 6301 6245 6336 6381 6193 6244 6207 6300 6340 6163 6154 6142 6246 6287 6216 5967 5944 5986 6062 5845 5836 5902 5792 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 32 1648 1071 2278 1917 1485 1150 2315 1935 1511 4243 1417 1158 CMU1 4312 1738 1565 CMU2 CMU3 5194 3102 CMU4 3058 3018 3380 1003 2881 3148 3144 3860 2945 2763 4093 4037 2225 1201 1341 3466 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 33 6859 6937 6665 6810 6714 6798 6903 6966 6760 6766 6689 6778 6829 6687 6711 6644 6736 6784 6624 6649 6604 6697 6739 6593 6553 6535 6640 6684 6651 6349 6323 6366 6447 6218 6207 6277 6161 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 34 1752 1137 2423 2037 1575 1223 2465 2058 1606 4538 1509 1231 CMU1 4616 1850 1664 CMU2 5575 CMU3 3249 3331 CMU4 3064 3246 3630 1065 3135 3387 3380 4132 2400 2978 4387 4325 1276 1424 3718 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 35 7244 7327 7072 7192 7088 7179 7292 7358 7174 7144 7063 7157 7211 7098 7086 7015 7114 7164 7032 7022 6975 7074 7118 7000 6922 6903 7013 7060 7061 6708 6680 6726 6812 6570 6558 6631 6509 BLIZZARD-manual-EN-1.1 March 2022...
  • Page 36 1849 1201 2556 2148 1661 1292 2602 2172 1695 4818 1592 1298 CMU1 4904 1953 1758 CMU2 CMU3 5908 3543 CMU4 3429 3454 3861 1125 3236 3607 3599 4388 3314 3175 4664 4596 2567 1346 1504 3956 BLIZZARD-manual-EN-1.1 March 2022...

  • Page 37: Service Record

    Stamp / Signature flights flights Type of Service Type of Service Notes Notes Service No 5 Service No 6 Date Stamp / Signature Date Stamp / Signature flights flights Type of Service Type of Service Notes Notes BLIZZARD-manual-EN-1.1 March 2022...

  • Page 38: Owner Records

    Owner Record Owner Record Pilot No 1 First name Family name Street City Post code Country Telephone Email: BLIZZARD-manual-EN-1.1 March 2022...
  • Page 39 Owner Record Owner Record Pilot No 2 First name Family name Street City Post code Country Telephone Email: BLIZZARD-manual-EN-1.1 March 2022...

  • Page 40: Closing Words

    We recommend that you fly with a standard harness, a reserve parachute and an approved helmet. See you in the sky! BGD GmbH Am Gewerbepark 11, 9413 St. Gertraud, Austria Tel: +43 (0) 4352 20477 e-mail: sales@flybgd.com www.flybgd.com BLIZZARD-manual-EN-1.1 March 2022...
