Summary of Contents for BGD WOW
- Page 1 Version 1.0 November 2020 Version 1.0 November 2020...
-
Page 2: Table Of Contents
Contents CONTENTS Welcome Introduction / Overview of Parts Installation Deploying Repacking Maintenance and Repairs Guarantee Specifications Closing Repacking record Version 1.0 November 2020... -
Page 3: Welcome

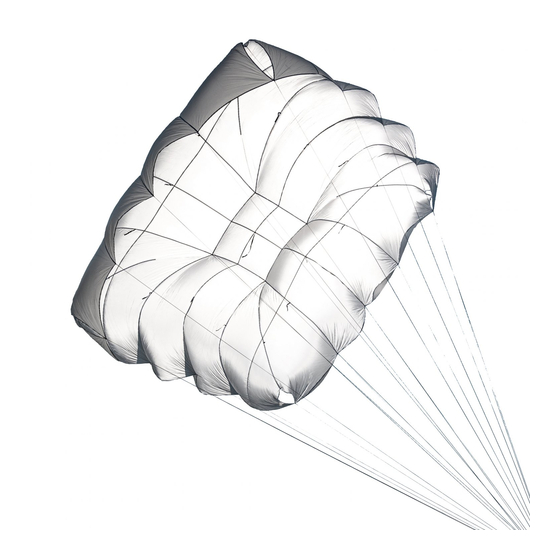

Congratulations on your purchase of a BGD WOW The Wow is a modern square reserve parachute with a fast opening time, low sink rate and high pendulum stability. The corner cut-outs make it very stable in descent immediately after deployment, and the symmetrical design prevents system-related forward movement, resulting n a stable descent with easy landing. - Page 4 Welcome to open in any direction. The handle is reinforced for an easy grip, even when wearing gloves. Before each flight, check all straps securing the outer container to the harness (where applicable). Ensure that the container is closed properly, and visually inspect the pins for damage and make sure that they are secure. Version 1.0 November 2020...
- Page 5 Operating limits / precautions The WOW has been specially developed for use as a reserve parachute for paragliding. It is not intended to be used for other flying sports including BASE-jumping and skydiving. It is suitable for integrated reserve containers.
-
Page 6: Introduction / Overview Of Parts
Introduction Overview of parts Canopy Lines Corner openings Bridle Centre or apex lines Packing loops (on top surface) Version 1.0 November 2020... -
Page 7: Installation I5
Compatibility Check The WOW rescue system is suitable for integrated reserve containers in a wide range of harnesses. The first-time installation of the reserve chute into a harness should be carried out only by an expert, to ensure the harness is compatible with the reserve. -
Page 8: Deploying
As with all paraglider reserve systems, the deployment throw must be forceful enough to separate the inner container from the canopy. The special coating of the WOW makes this easier, and reduces failed deployments. However, if the initial throw was not powerful enough for the system to deploy immediately, grasp the parachute bridle attached to the harness, and pull it back for another, more forceful, throw. -
Page 9: Repacking
Repacking Repacking Your parachute should be repacked every 6 months, preferably by a qualified professional. When removing the parachute from the harness take the opportunity to complete a practice deployment. Check that you can reach your handle easily and that the parachute exits the harness smoothly and easily. Proper packing of the canopy is essential for the reliability and safety of the system. - Page 10 Repacking CLOTH: Ensure that it is not damaged or contaminated. OUTER AND INNER CONTAINERS: Ensure that the handle is properly and securely attached to the inner container and the riser is securely (tightly) attached to the harness. If you find any damage or contamination that may lead to system failure, the system must be checked by the manufacturer.
- Page 11 Repacking Use the length of line to thread the packing loops together. Don’t forget the four corner loops mounted slightly further back on the panels. Secure the packing loops to something rigid, and pull on the bridle and the attached loops until the apex line is tensioned.
- Page 12 Repacking Lay out the next panels in a rectangular fashion. Identify the corner that points to one of the sides. This is also to be laid out in a crossed fashion, as shown. Continue with rectangular panels until the next corner is reached, which is now the uppermost one and last on this side.
- Page 13 Repacking Starting at the main riser, loop the line bundles in the shape of a figure-eight. Use silicone-based rubber rings to fix the line bundles. The figure-eights should be made to the same width as the deployment bag. Leave approximately 30cm free for the final line loop.
-
Page 14: Maintenance And Repairs
Maintenance and repairs Maintenance and Repairs Maintenance The canopy must be stored in a clean and dry place. Avoid extensive exposure to direct sunlight. If it gets wet, immediately dry the canopy and the lines to prevent damage caused by mould. Contamination by oils or other chemicals could significantly reduce the load stability of the life saving system. - Page 15 Maintenance and repairs Recycling We all have a responsibility to look after the environment and protect the places in which we fly. Even the best products have a limited service life, and once your reserve chute reaches this point it should be disposed of in an appropriate recycling facility.
-
Page 16: Guarantee
Guarantee Guarantee Our reserves are guaranteed against any production fault for two years from the date of purchase. The guarantee does not cover damage caused by misuse, by neglecting the regular maintenance, by poor storage conditions, or overloading. Version 1.0 November 2020... -
Page 17: Specifications
Specifications Specifications Area (m 22.5 27.5 Weight (kg) Length of centre lines (mm) 4448 4915 Max. payload* (kg) Min. payload* (kg) Sink rate at max. payload* (m/s) 5.25 Volume (l) Certification EN / LTF *Payload = Weight of fully equipped pilot without paraglider Materials Canopy: Nylon 6.6, 33dTEX... -
Page 18: Closing
Closing Closing If you are ever unsure about the information contained in the manual, contact your BGD dealer. This document is not a contract. BGD reserves the right to alter or modify its products without notice. BGD GmbH, Am Gewerbepark 11, 9413 St. Gertraud, Austria. Tel: +43 (0) 4352 20477 sales@flybgd.com www.flybgd.com... -
Page 19: Repacking Record
Repacking Record Repacking Record Date of Packing: Signature: Version 1.0 November 2020...
