Surge Protective Devices
160D006S20KXCXN0
(Edco CX06-M)
160D006S20KXCGN0
(Edco CX06-MI)
160D006S20KXCGL0
(Edco CX06-MI-SBL)
160D006S20KX16N0
(Edco RM-CX06-16R)
Installation & Operation Manual
Model 160

Advertisement

loading
Need help?

Need help?

Do you have a question about the 160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Asco 160

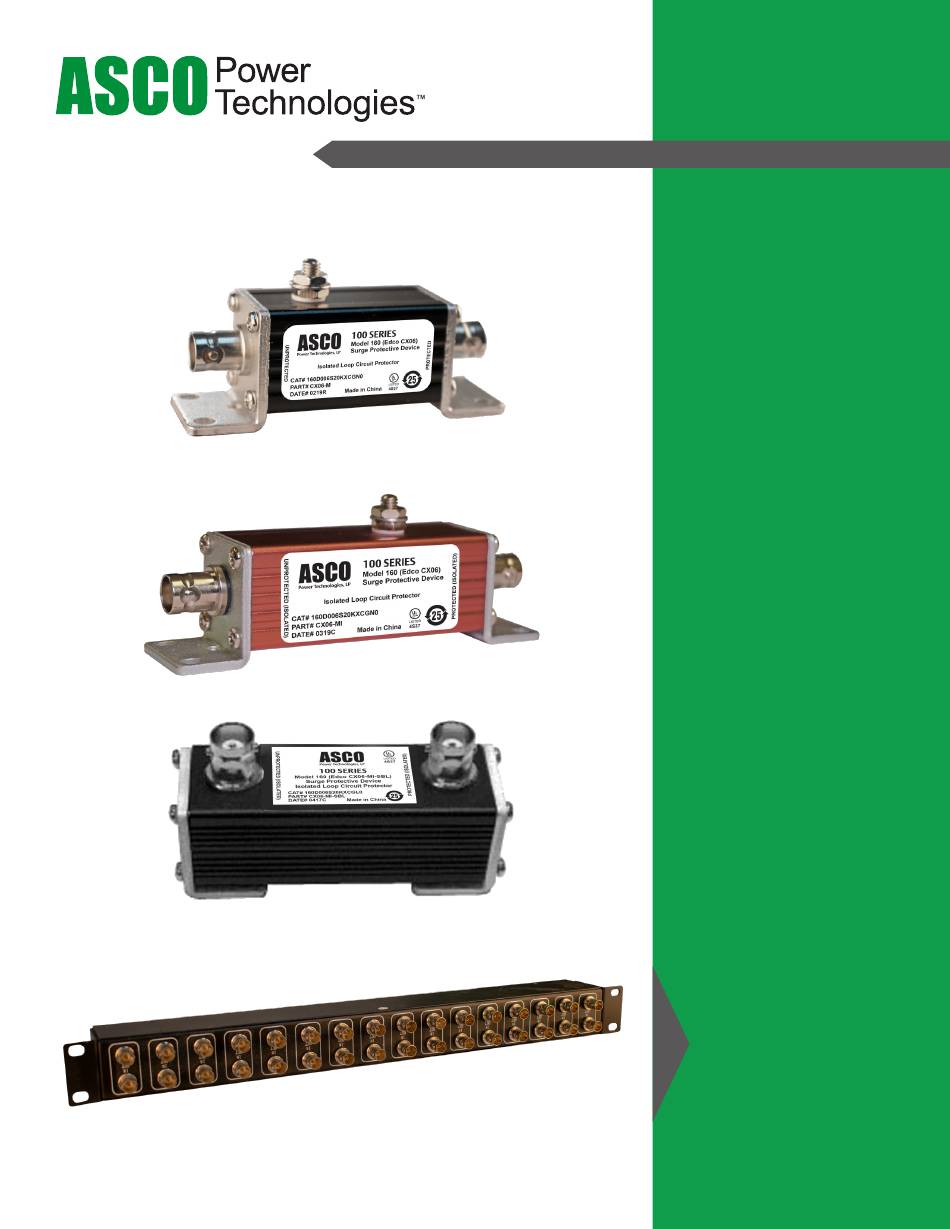

  • Page 1 Surge Protective Devices Installation & Operation Manual 160D006S20KXCXN0 (Edco CX06-M) 160D006S20KXCGN0 (Edco CX06-MI) 160D006S20KXCGL0 (Edco CX06-MI-SBL) Model 160 160D006S20KX16N0 (Edco RM-CX06-16R)
  • Page 2: Safety Information

    Please Note Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by ASCO Power Technologies for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved.
  • Page 3 — PTCs. The Model 160 SPDs are designed in accordance with NFPA 780 requirements, with up to 20 kA of surge current capability. The Model 160 with Gas 14th character has an isolated ground option and is recommended for use at the camera-end.
  • Page 4: Installation

    Keep this wire as short and straight as possible. For 160D006S20KX16N0 Rack Mount Unit: The ASCO Model 160 is designed to be installed in a standard 19” equipment rack and take up 1 unit (1U) of space. Secure unit to rack using the four slots and four screws (not provided).
  • Page 5 ASCO Model 160 (EDCO CX and RM-CX Series) IO-75025 Surge Protectective Device (SPD) 01/2020 Figure 1: Connection Diagram Model 160D006S20KXCXN0 or Model Head-End Camera-End 160D006520KX16NO 160D006S20KXCGN0 Equipment Equipment (16 Channel Rackmount) To AC Power Ground To AC Power Ground or Building Ground ©...
  • Page 6: General Technical Specification

    ASCO Model 160 (EDCO CX and RM-CX Series) IO-75025 Surge Protectective Device (SPD) 01/2020 General Technical Operating Voltage 5 VDC Specification Clamping Voltage 6 VDC Operating Current 0.15 A Peak Surge Current 20 kA (8 x 20 µs) Frequency Range...
  • Page 7 ASCO Model 160 (EDCO CX and RM-CX Series) IO-75025 Surge Protectective Device (SPD) 01/2020 Model Cross Reference MODEL APPLICATION Former Model Name 160D006S20KXCXN0 Head-End Edco CX06-M 160D006S20KXCGN0 (w/ Isolated Ground) Camera-End Edco CX06-MI 160D006S20KXCGL0 (w/ Isolated Ground) Camera-End Edco CX06-MI-SBL...
  • Page 8 14550 58th Street North While every precaution has been taken to ensure accuracy and completeness in this literature, Schneider Electric assumes no Clearwater, Florida 33760 responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions. se.com/us/en/work/support 1-888-778-2733 IO-75025 Rev- 01-20...

This manual is also suitable for:

Edco cx06-mEdco cx06-miEdco cx06-mi-sblEdco rm-cx06-16r
