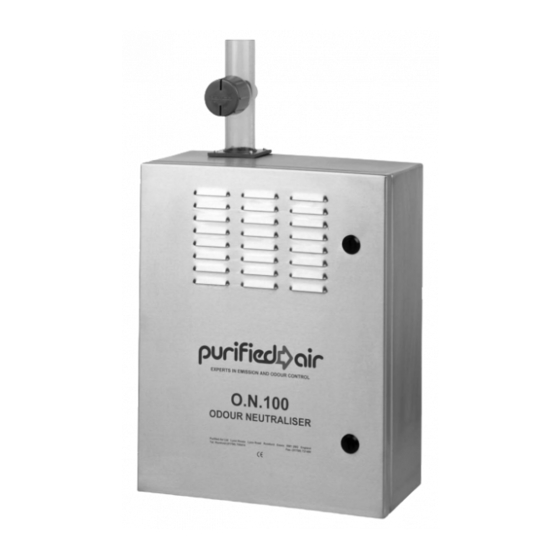

- Page 1 ON 100 Odour Neutraliser TECHNICAL & OPERATION MANUAL...
- Page 2 2010 All rights reserved. No part of this publication may be copied or published by means of printing, photocopying, microfilm or otherwise without prior written consent of the manufacturer. This restriction also applies to the corresponding drawings and diagrams. The information given in this document has been collected for the general convenience of our clients. It has been based on general data pertaining to construction material properties and working methods known to us at the time of issue of the document and is therefore subject at any time to change or amendment and the right to change or amend is hereby expressly reserved.
-
Page 3: Safety Instructions And Warnings
Please note that it is strongly recommended that training is given by Purified Air Ltd prior to operatives attempting to carry out maintenance or repair work on this product. - Page 4 Intended use The product has been designed exclusively for use in commercial kitchens. The product has been built in accordance with state-of the-art standards and recognised safety regulations. Only use the product in technically perfect condition with its intended use and the instructions laid down in the user manual.
-
Page 5: Packaging Material
Service, maintenance and repairs This manual clearly makes a distinction between service maintenance and repair jobs which have to be carried out by the user and those which have to be exclusively carried out by well trained and authorised service engineers. -
Page 6: Technical Specifications
The airstream must first be cleaned of the majority of particular contaminants leaving the gaseous phase of the contamination to be treated by the ON 100. Ambient air is drawn into the unit and mixed with the specially blended neatralising chemical (Eliminodor). A vapour is formed which is then ionised to a negative potential of 15,000 V. -
Page 7: Installation
INSTALLATION Damper Control Fan Control Quick Release Locks High Voltage Top Up Level Indicator O.N.100 Installation O.N. 100 The unit can be free standing on a flat surface or fixed to a wall or ducting (wherever the unit is positioned you should bare in mind that frequent access is required to replenish the neutralising fluid). - Page 8 The spigot must be installed at least one metre prior to the fan unit and if possible in a straight piece of ducting away from bends and other obstructions which will interrupt uniform airflow. The spigot has an outside diameter of 50 mm therefore you must drill a hole in the ducting to accommodate the spigot, this is normally done with a tank cutting drill bit.
- Page 9 DIMENSIONS Dimensions O.N.100 Service Space Service Space Air Flow Air flow Note: If access equipment is necessary Note: If access equipment is necessary service requirements may vary. service requirements may vary. Plan Plan O N-100 ON-100 Ductwork Ductwork Ductwork Ductwork Air Flow Air flow ON-100...
-
Page 10: Periodic Maintenance
Over filling the unit may lead to damage. Once the unit has been filled replace the filler cap and return the fan speed control to its previous position. ONLY USE PURIFIED AIR “ELIMINODOR” AND NEVER ALLOW THE SYSTEM TO RUN DRY FOR MORE THAN TWENTY FOUR HOURS. - Page 12 Purified Air Limited, Lyon House, Lyon Road, Romford, Essex RM1 2BG England Tel: 01708 755414 Fax: 01708 721488 E-mail: enq@purifiedair.co.uk www.purifiedair.co.uk...
